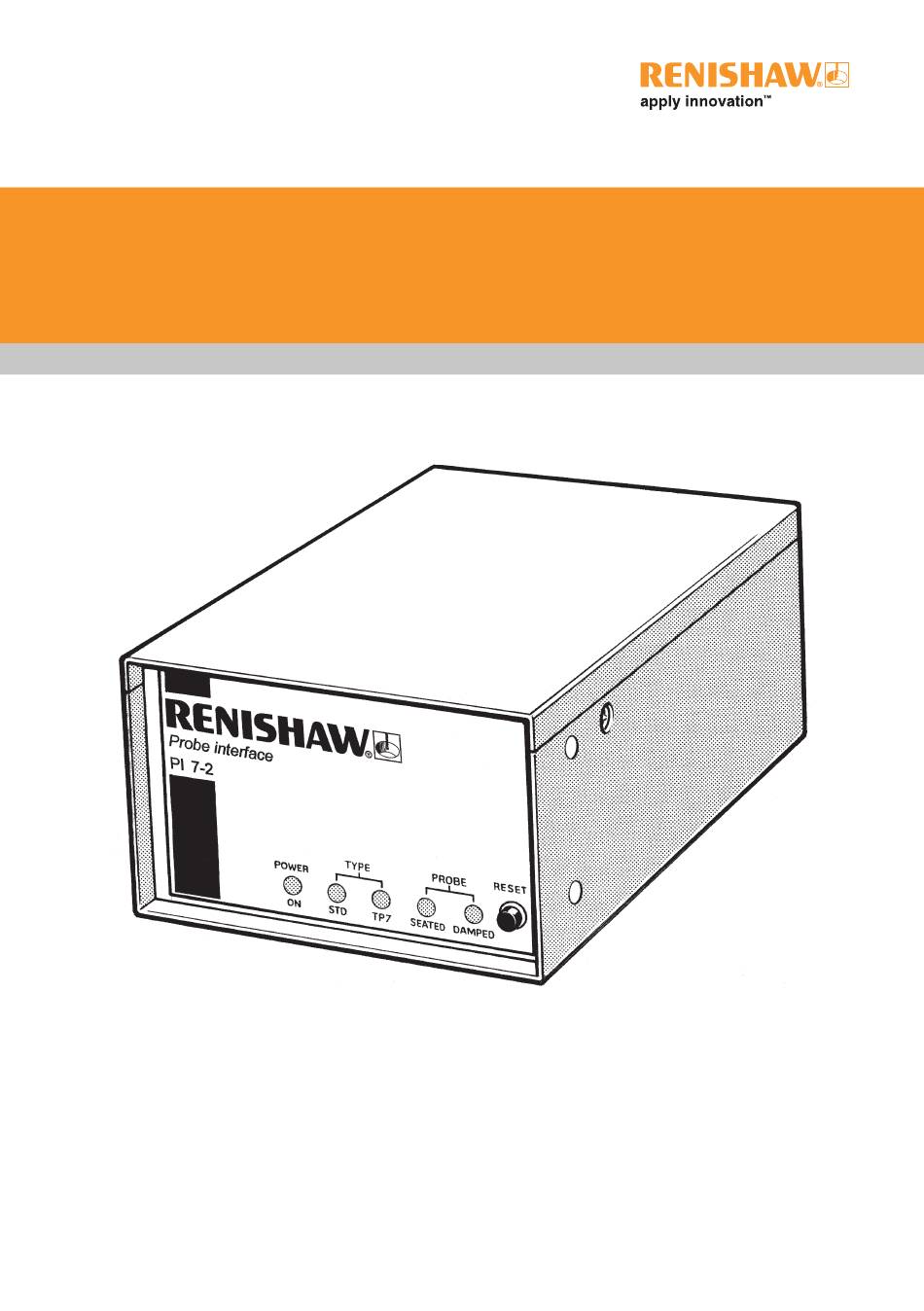

  • Page 1 Installation guide H-1000-5015-13-C PI 7-2...
  • Page 2 EXCLUDES LIABILITY, HOWSOEVER ARISING, FOR ANY INACCURACIES IN THIS DOCUMENT. Trademarks RENISHAW® and the probe emblem used in the RENISHAW logo are registered trademarks of Renishaw plc in the UK and other countries. apply innovation is a trademark of Renishaw plc.
  • Page 3 PI 7-2 interface for TP7M probe series installation guide...
  • Page 4 Information to user (FCC Section 5.2) The user is cautioned that any changes or modifications not expressly approved by Renishaw plc or authorised representative could void the user’s authority to operate the equipment. Special accessories (FCC Section 5.27)
  • Page 5 Installation category II Pollution degree The PI 7-2 is isolated from AC power by disconnection of the IEC mains connector on the rear panel. If any additional means of isolation is required, it must be specified and fitted by the machine manufacturer or the installer of the product. The isolator must be sited within easy reach of the CMM operator and comply with IEC61010 and any applicable national wiring regulations for the country of installation.
  • Page 6 Claims under warranty must be made from authorised services centres only, which may be advised by the supplier or distributor. Patents  Features of Renishaw’s PI 7-2 and associated products are the subjects of the following patents and patent applications: EP 0243766...

  • Page 7: Table Of Contents

    Contents Contents 1 Introduction ........................6 2 Product description ....................7 Technical description ..................7 Front panel indicators ..................8 Reset switch ....................9 Configuration switches..................9 Connector pins .....................13 Summary of changes from earlier versions of PI 7........14 Dimensions ....................14 3 Replacement of PI 7, PI 7c and PI 7H ..............15 4 Installation procedure ....................16 Rack mounting ....................16 System interconnection ................18...

  • Page 8: Introduction

    Introduction   Introduction The PI 7-2 is a dedicated signal conditioner for interfacing the TP7M series of probes or touch-trigger probe types such as TP2, TP20 or TP6/TP6A, to the CMM controller.

  • Page 9: Product Description

    2.  Technical description The PI 7-2 automatically recognises the probe type, determines the probe status, which is either triggered or seated (armed), and transmits debounced signals to the CMM controller. Status and control signals are transferred between the PI 7-2 interface, other Renishaw equipment and the CMM controller via the product interconnection system (PICS) ports.

  • Page 10: Front Panel Indicators

    Product description 2.2  Front panel indicators Figure  - PI 7-2 interface front panel Front panel indicators Indicator Colour Function POWER Green Mains power on TYPE Green Touch-trigger probe selected Green TP7M series probe selected PROBE ON - probe (seated) SEATED Green OFF - probe triggered or no probe connected...

  • Page 11: Reset Switch

    Product description 2.  Reset switch Automatically, the probe will reset to the armed state when the PI 7-2 is powered up. Occasionally, it may be necessary to perform a manual reset, for example after changing the probe stylus. Press the RESET button on the front panel for 2 seconds to reset the probe to the armed (seated) state.
  • Page 12 Product description Configuration switches Switch  Function Position Description SSR closed when probe seated SSR invert DOWN SSR open when probe seated Audible indication of probe trigger - OFF Buzzer DOWN Audible indication of probe trigger - ON Autojoint input only Kinematic probe input DOWN PICS input enabled...
  • Page 13 Product description Switch  With switch 3 UP, the PI 7-2 will automatically change operating modes from TP7M to kinematic probe types (TP2, TP20 or TP6/TP6A) when a TP6A probe or PAA series adapter is attached to the Renishaw autojoint connector on the probe head. Switch 3 should be set to the DOWN position only when it is necessary to connect a kinematic probe or an electronic trigger, from an external source, to the PICS input connector.
  • Page 14 Set switch 9 UP to select level 2. This will reduce sensitivity to vibration but with a small loss of measuring accuracy. NOTE:  All configuration switches are hardware controlled and do not require the PI 7-2 to be switched off and on again to make the selection active.

  • Page 15: Connector Pins

    Connector pins 2.5  Connector pins Refer to the Renishaw installation guide ‘Product interconnection system – PICS’ (part number H-1000-5000) for the electrical specification of the PICS signals. PICS output connector The PICS output connector is a 9 pin ‘D’ type plug. The pin numbers (viewed on the rear panel) are shown in the table below.

  • Page 16: Summary Of Changes From Earlier Versions Of Pi 7

    Connector pins Solid state relay (SSR) connector The SSR output connector is a 7 pin DIN socket. The pin numbers (viewed on the rear panel) are shown in the table below. SSR connector Pin no. Function Pin no. Function Probe status 2 Not used Not used Not used Not used Probe status 1 Shell...

  • Page 17: Replacement Of Pi 7, Pi 7C And Pi 7H

    Replacement of PI 7, PI 7c and PI 7H   Replacement of PI 7, PI 7c and PI 7H The following table relates the PI 7-2 configuration switches to the previous standard and custom versions of the PI 7. Function PI 7-2 * PI 7-2  PI 7 PI 7c PI 7H   SSR invert DOWN...

  • Page 18: Installation Procedure

    .  Rack mounting The PI 7-2 may be mounted in a 19 “ equipment rack or may be free standing. To mount the PI 7-2 alone requires 2 x 1/3 blanking panel kits (part number A-1018-0123). Refer to figure 4 below.
  • Page 19 2 x M5 screws x 6 mm long (part number P-SC29-0506) are required. Remove the blanking plugs from the side of the PI 7-2 and screw the bracket in place. On the extruded style enclosure, prise out the rubber cover from the corner moulding and loosen the 2 screws.

  • Page 20: System Interconnection

    System interconnection The interconnections for the TP7 system on a PH10M motorised probe head are shown in figure 9. The table opposite gives a list of alternative standard Renishaw cable lengths and part numbers. Refer to the Renishaw ‘PH10M system’ installation guide (part number H-1000-5071),...
  • Page 21 Installation procedure Cable  PL no. Length (m) Part number Notes 0.4 - 0.8 A-1016-7672 Coiled 0.8 - 1.6 A-1016-7673 Coiled PL12 A-1016-7674 Plain PL13 0.1 - 0.2 A-1016-7675 Coiled PLM6 A-1016-7564 Unterminated PLM7 A-1016-7563 Unterminated PLM8 A-1016-7677 PLM9 A-1016-7678 PL38 A-1016-7625 Unterminated PL42 A-1016-7624 Unterminated PL56...

  • Page 22: Maintenance

    Maintenance 5  Maintenance Check the security of mounting screws and electrical connectors. Remove dust from the external surfaces with a proprietary cleaning cloth. There are no user serviceable parts within the PI 7-2.
  • Page 24 Renishaw plc +44 (0)1453 524524 +44 (0)1453 524901 New Mills, Wotton-under-Edge, uk@renishaw.com Gloucestershire, GL12 8JR United Kingdom www.renishaw.com For worldwide contact details, please visit our main website at www.renishaw.com/contact *H-1000-5015-13*...
