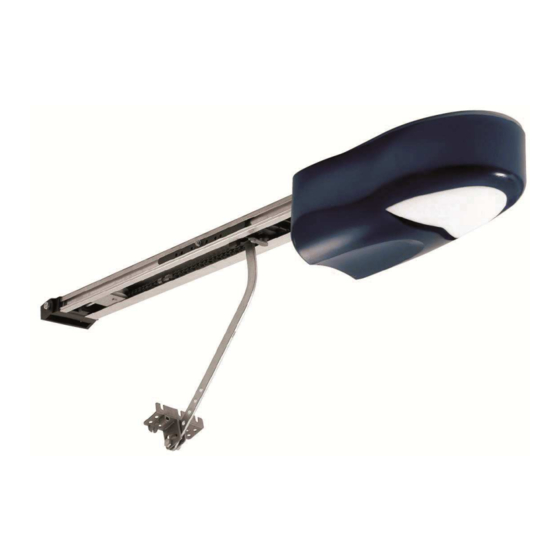

CT ACTION 09
Control unit for sectional doors
Instruction for the installation

Advertisement

loading
Need help?

Need help?

Do you have a question about the CT ACTION 09 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Allmatic CT ACTION 09

Summary of Contents for Allmatic CT ACTION 09

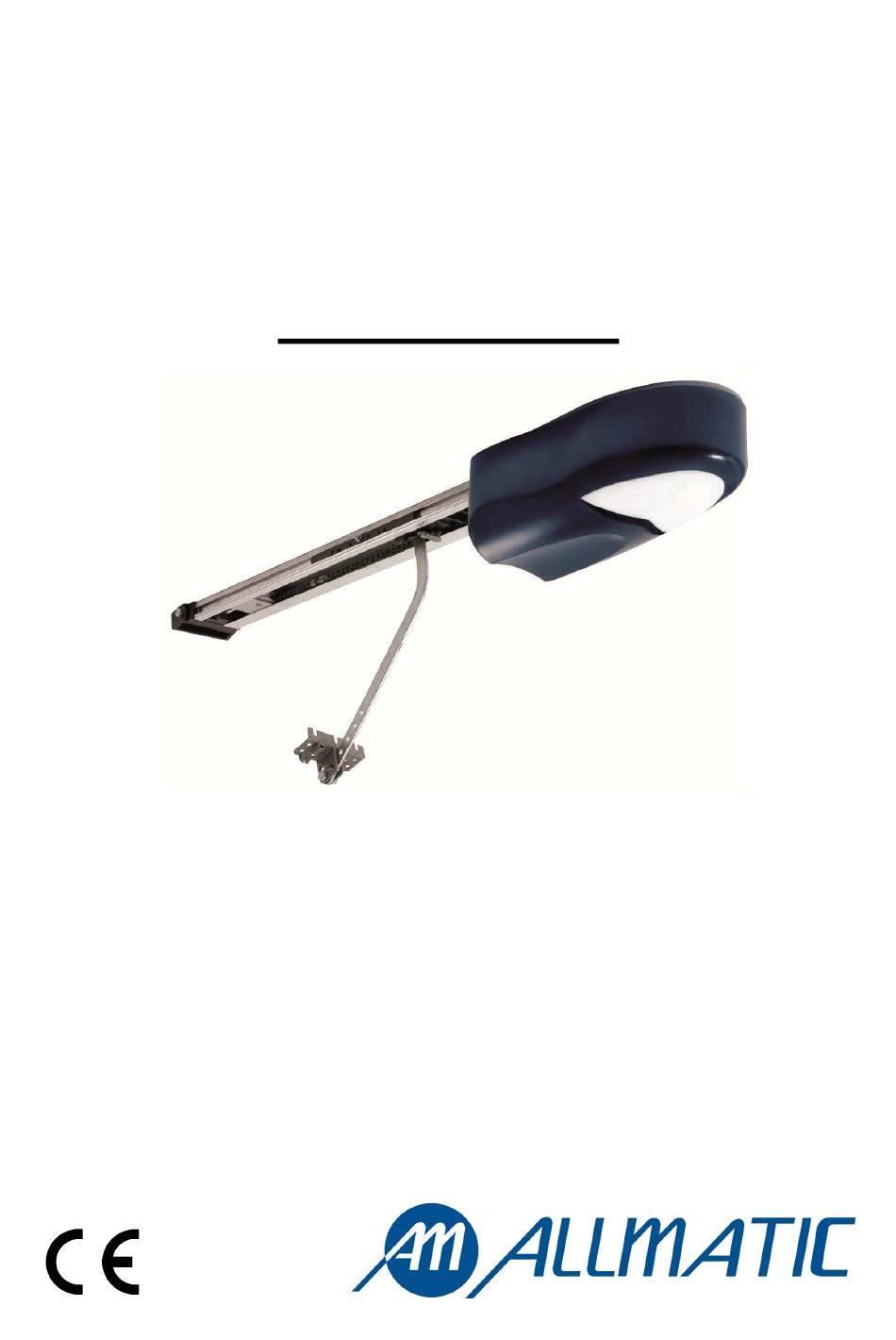

  • Page 1 CT ACTION 09 Control unit for sectional doors Instruction for the installation...

  • Page 2: Electrical Connections

    1. Introduction ACTION 09 is a control unit suitable to the control of sectional doors moved by 24Vcc motors with encoder. The coexistence of several types of safeties, such as, for example the control of the current absorbed by the motor and the velocity control, allows a rapid intervention on the anti – squashing prevention.

  • Page 3: Preliminary Checks

    4. Settings This chapter contains important information for a safe and correct installation. Follow scrupulously all the instructions, because a wrong installation can cause breaks or malfunctioning of the automation. Warning: before starting the automation’s programming deactivate all the gate’s locks (unlocked door handle, open lock).
  • Page 4 4.4 Programming of the course This procedure must be carried out ONLY by an installer and ONLY during the setting up of the system. For a correct programming, before carrying out any modification, bring always again the gate in totally closed position (see section 4.2). SW1 Position Press shortly the BLUE but- Check that the door is closed and that SW1...
  • Page 5 4.6 Automatic re-closing adjusting This procedure must be carried out ONLY by the installer and ONLY during the setting up of the system. For a correct programming, before to carrying out any modification, bring always the system in totally closed position (see section 4.2). AUTOMATIC RECLOSING Rotate the AUTOMATIC RECLOSING trimmer in clockwise sense.
  • Page 6 5. Advanced functions These procedures are turned ONLY to the installer and ONLY during the setting up of the system. For a correct programming, before to carrying out any modification bring again the gate in totally closed position (see section 4.2). N°...
  • Page 7 5.7 Reset If it is necessary to carry out a reset of the control unit (deleting of the parameters of the course and recharge the factory settings), proceed as follows: Cut off the power supply from the system Set the SW1 selector on AUT (automatic) Press the red key Keep it pressed while you give again power supply to the system Keep it pressed again until the flashing light does not turns on 3 times.
  • Page 8 ALLMATIC S.r.l 32020 Lentiai - Belluno – Italy Via dell-Artigiano, n° 1 – Z.A. Tel. 0437 751175 – 751163 r.a. Fax 0437 751065 http://www.allmatic.com - E-mail: info@allmatic.com...
