Allmatic AV Manual

1. Introduction.
Control unit for a motor in alternatine current with torque adjuster (AV1), output contact for limit switch or Open/close bottons, selectable, output con-
tact for photo dispositive, stop button, step-by-step, with radio modular and memory of expansion and possibilità to install an additional card for courte-
sy light and electrolock (AV1).
This control unit has been designed for the automation of rolling shutters, shutters and sliding doors.
2. Configuration.
Card options
(only with AV1).
1 2 3 4
LC
ELS
Vac/dc
Vac/dc
LIT LIGHT = FUNCTION ENABLE

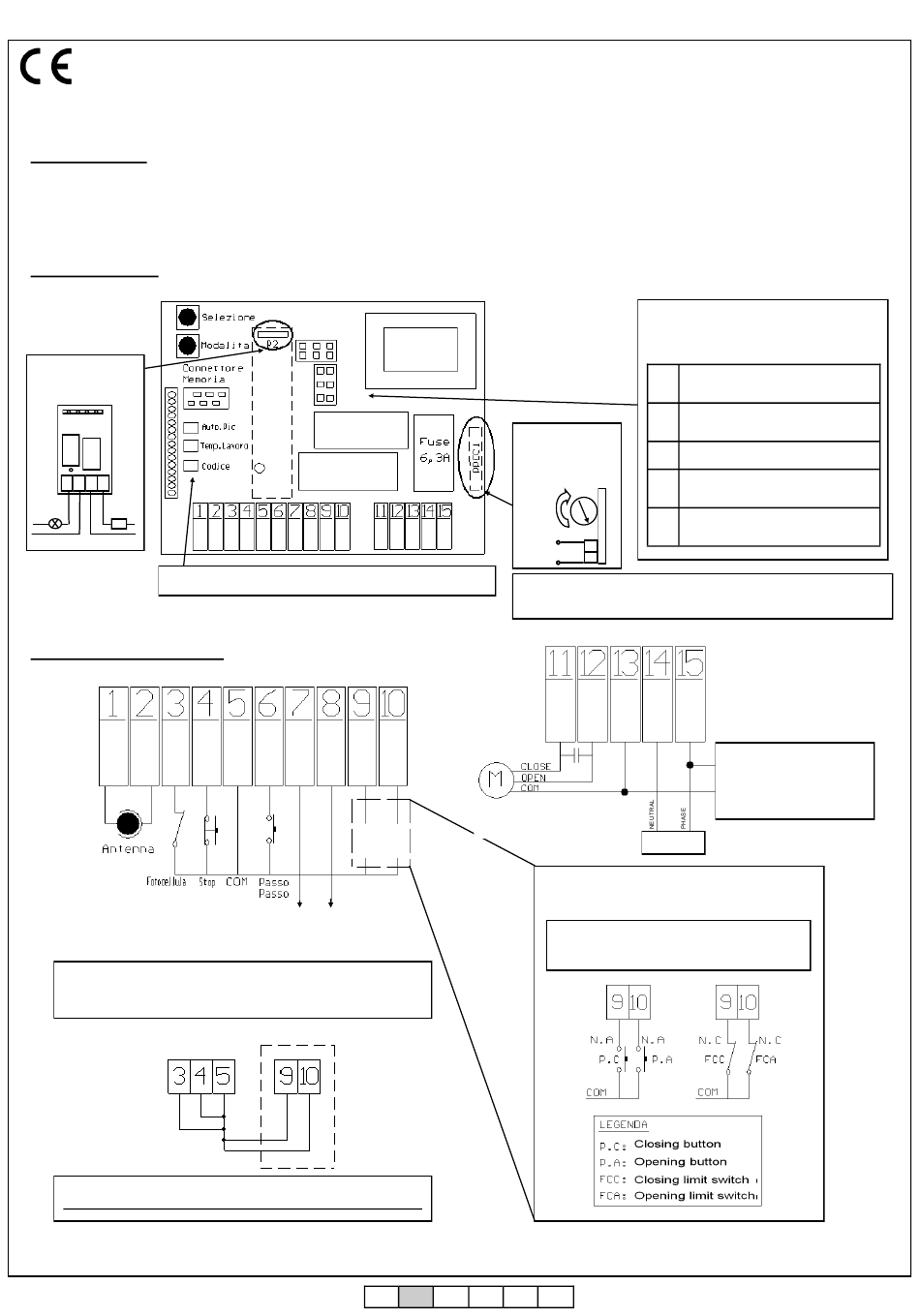

3. Electrical connections.
ATTENTION!! N.C. CONTACTS NOT USED MUST BE
JUMPED TO THE COMMON WIRE LIKE SHOW IN THE
FOLLOWING FIGURE.
The contact 9 and 10 must be jumped to the common only if
jumper J5 is close and the photocellule are not connected.
6-1622081 REV.12 23/09/2020
Control unit AV and AV1
CONTROL UNTI WITH EXTRACTIBLE MEMORY
J1
J2
J3
J4
J5
Photocells power supply
24 Vac 1.5 W MAX
ITA
Optional torque
regulator
(only with AV1).
MIN
MAX
230 VAC
If the torque regulator is used, connect the flashing light (with
self-blinking card) to the output of the torque regulator
J5 jumper configuration for limit switch or
J5 close: Limit switch selection.
ENG FRA ESP DEU POR
FUNCTION SELECTION PRESENT
ON AV AND AV1
( See page 4 ).
Step-by-step / open-close func-
J1
tion selection.
Normal / deadman function
J2
selection.
J3 Fixe code / rolling code selection.
Condominium function enable /
J4
disabile selection.
Limit-switch or button use
J5
selection.
Connection for blinker
BRO LIGHT 220 (with
self-blinking card) without
torque regulator
230 Vac
boton selection.
J5 open : Button selection
