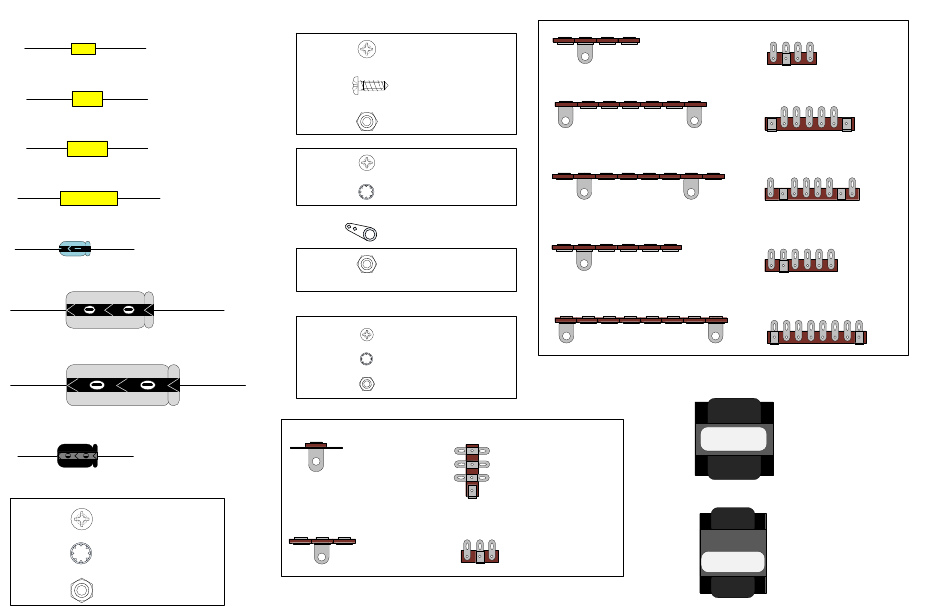

C-MD001-630
1
0.001µF capacitor
BAG 1
.001µF
630V
C-MD022-630
2
0.022µF capacitor
BAG 1
.022µF
630V
C-MD047-630
1
0.047µF capacitor
BAG 1
.047µF
630V
C-MD1-630
4
0.1µF capacitor
BAG 1
.1µF
630V
C-ET22-50
2
22µF polarized capacitor
22µF 50V
BAG 1
C-ET22-500-IL
4
22µF polarized capacitor
BAG 1
22µF 500V
C-ET80-450-IL
2
80µF polarized capacitor
80µF 450V
C-ET220-50
1
220µF polarized capacitor
220µF 50V
BAG 1
S-HS1032-12
8
#10 screw
BAG 9
S-HLW10
6
#10 lock washer
S-HHN1032
8
#10 hex nut
S-HS832-34
S-HST8-12
S-HHN832
S-HS632-14
S-HLW6
S-H112
S-HHN632
S-HS440-14
S-HLW4
BAG 1
S-HHN440
P-0300V
5
P-0301H
1
Parts List 2
P-0401H
4
#8 screw
BAG 10
8
#8 self-tap screws
P-0500H
4
#8 hex nut
22
#6 screw
P-0600H
BAG 8
20
#6 lock washer
4
#6 locking lug
BAG 10
P-0601H02
22
#6 hex nut
BAG 8
P-0802H
4
#4 screw
BAG 9
4
#4 lock washer
4
#4 hex nut
3 lug vertical terminal strip (no common lugs)
BAG 2
T10, T11, T12, T13, T14
nd
3 lug terminal strip (2
lug common)
T9
nd
2
4 lug terminal strip (2
lug common)
BAG 2
1
5 lug terminal strip (no common lugs)
2
6 lug terminal strip (no common lugs)
nd
3
6 lug terminal strip (2
lug common)
st
th
1
8 lug terminal strip (1
and 8
lug common)
P-T374BX
1
power transformer (TR1)
374BX
P-T1650P
1
output transformer (TR2)
#
#
1
1
0
0
1650P
#
#
1
1
0
0
T2, T6
T7
T3, T4
T5, T'5, T8
T1
