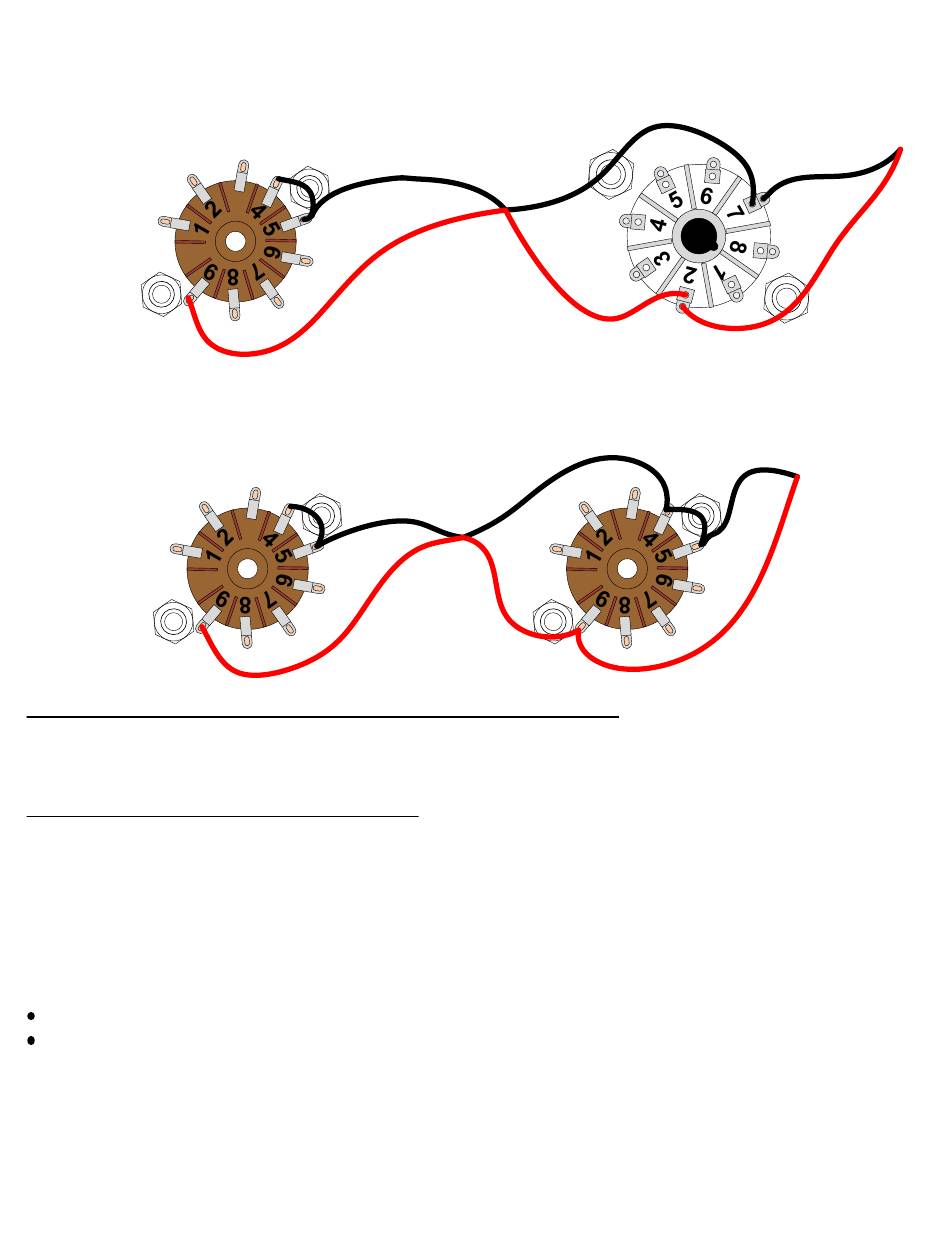

B) Twist and connect two 20AWG green wires from V3 pins 2 & 7 to V2 pins 4, 5 & 9. At
V2 one wire connects to both pins 4 & 5, while the other wire only connects to pin 9. (Only
solder the connection at V3).
(It does not matter which wire goes to which lug, but
make sure not to connect the wires to the same lug).
C) Twist and connect two 20AWG green wires from V2 pins 4, 5 & 9 to V1 pins 4, 5 & 9. At
V1 one wire connects to both pins 4 & 5, while the other wire only connects to pin 9.
(It does not matter which wire goes to which lug, but
make sure not to connect the wires to the same lug).
SECTION 11 – Insert the Strain Relief and Connect the Power Cord
Please refer to Drawings 21 & 22.
Step 1 – Insert the Strain Relief and Power Cord
Drawing 21 shows where and how to do this.
A) Put the strain relief around the power cord at a point about 1 inch up from where the outer insulation of the
cord ends.
B) Close the strain relief over the power cord.
C) Use your pliers to simultaneously:
Tightly squeeze the strain relief into the power cord.
Push the strain relief and power cord into the chassis hole.
You will have to squeeze very tightly with the pliers to fit the strain relief and power cord into the chassis
hole. This is what gives the cord a secure fit.
(When the strain relief is inserted properly, you should not be able to pull the cord out with your hand).
