SECTION 6 – Connect the Front Mounted Components

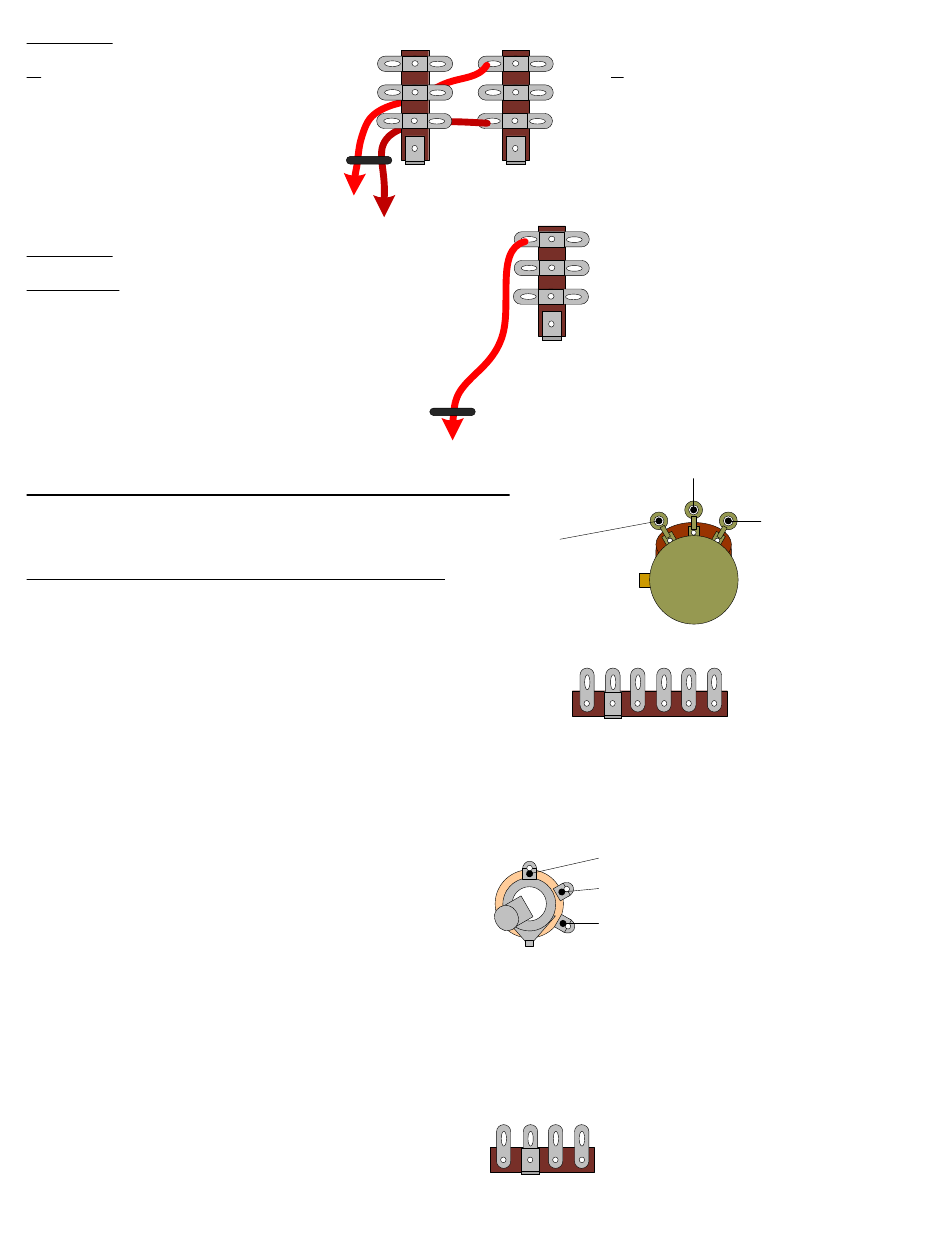

Please refer to Drawings 13 - 17.
Step 1 – Connect the Potentiometers and Input Jack
Drawing 13 shows where to connect each pot.
Notice the following sub-step letters (A, B, C, etc.) are
shown on the Assembly drawings in parenthesis.
A) Connect the cold lug of the Bass pot to T5 terminal 1.
B) Connect Bass wiper to the Treble cold (do not solder the treble cold side, yet).
C) Connect Treble cold to T5 terminal 4 (now solder the treble cold side).
D) Connect Treble wiper to Volume hot.
E) Connect Treble hot to T5 terminal 6.
F) Connect Volume cold to Input Jack ground pin
(do not solder the jack ground side, yet).
G) Connect Volume wiper to V1 pin 7.
H) Mount but do not solder a 1MΩ, ½ W resistor from Input Jack switch pin to
signal pin.
I) Connect a jumper wire from Input Jack ground pin to switch pin and solder this
connection.
J) Connect Input Jack signal pin to T2 terminal 4.
