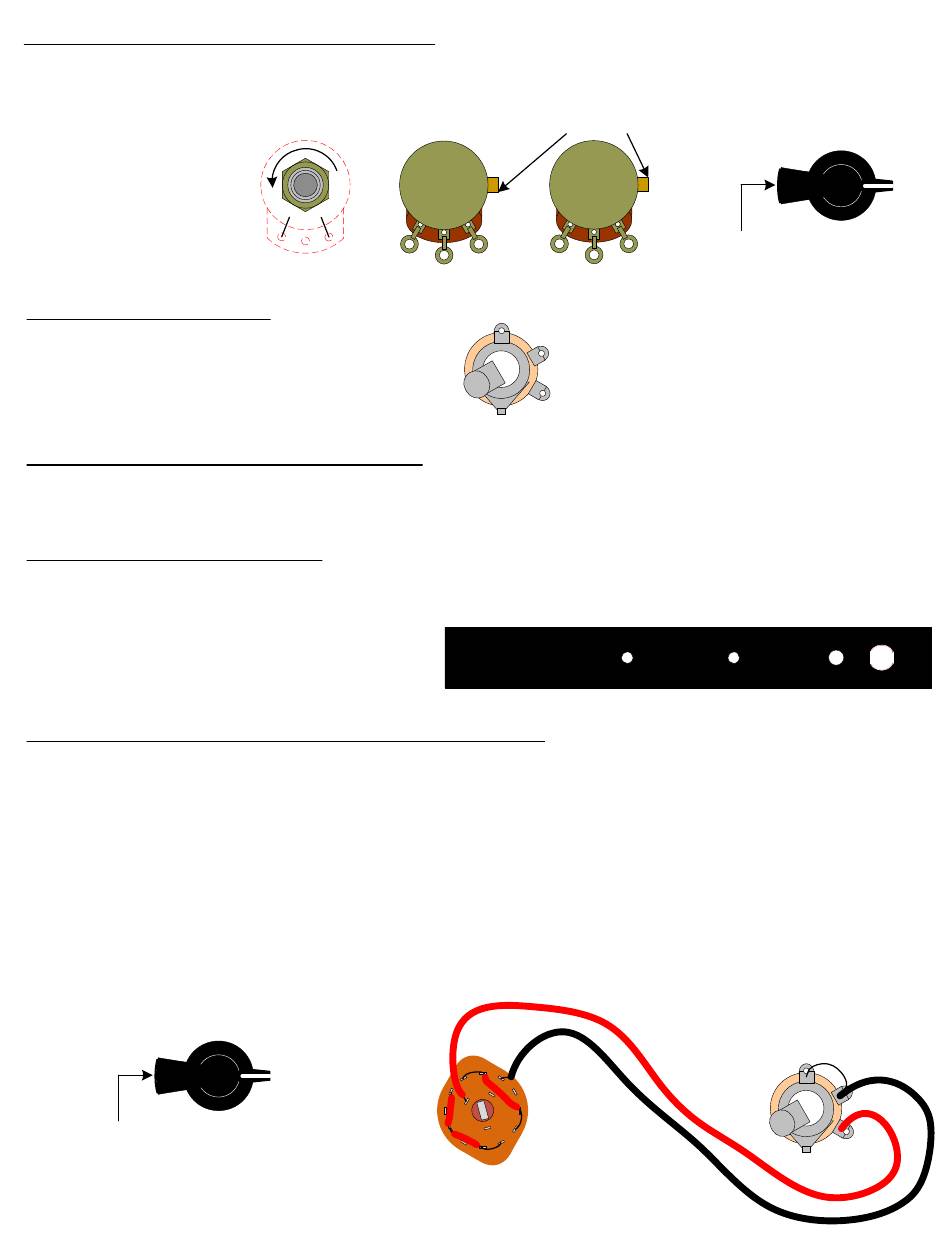

Step 4 – Mount the Bass, Treble, and Volume Pots
Drawing 7 shows where to mount the bass, treble, and volume pots. When they are mounted, turn their shafts all
the way counter-clockwise. (Once you have done this, you can mount the chicken head knobs while pointing to
"0" and tightening their set screws).
It is good idea to use a
contact cleaner on each pot
before mounting.
Step 5 – Mount the Input Jack
Drawing 7 shows where to mount the input jack.
SECTION 3 – Mounting of Rear Components
Please refer to Drawing 8.
Step 1 – Mount the Rear-plate Label
Drawing 8 shows where to mount the rear-plate label. Make sure and line up each hole in the sticker with
each hole in the chassis rear.
Take your time and line this up properly because the sticker
cannot be removed again without damaging it.
Step 2 – Mount the Impedance Selector Switch and Output Jack
Drawing 8 shows where to mount the impedance switch and output jack. (Once you have done this, you can
mount the remaining chicken head knob to the switch).
There are 4 positions to the switch.
A) Mount the chicken head knob to the switch and gently click it over to the furthest counter-clockwise
position. (This position should be 4 ohms).
B) Re-adjust the knob so that it points at the "4" and tighten the set screw. Make sure that you can click over
to three more positions going in the clockwise direction.
Set screw
250KA
ccw
0
10
Chassis Bottom
(1)
Bend back mounting tabs
1MA
(2)
(1)
Chassis Bottom
(1)
13
(3)
Set screw
blk
red
