Step 3 – Mount the Fuse Holder

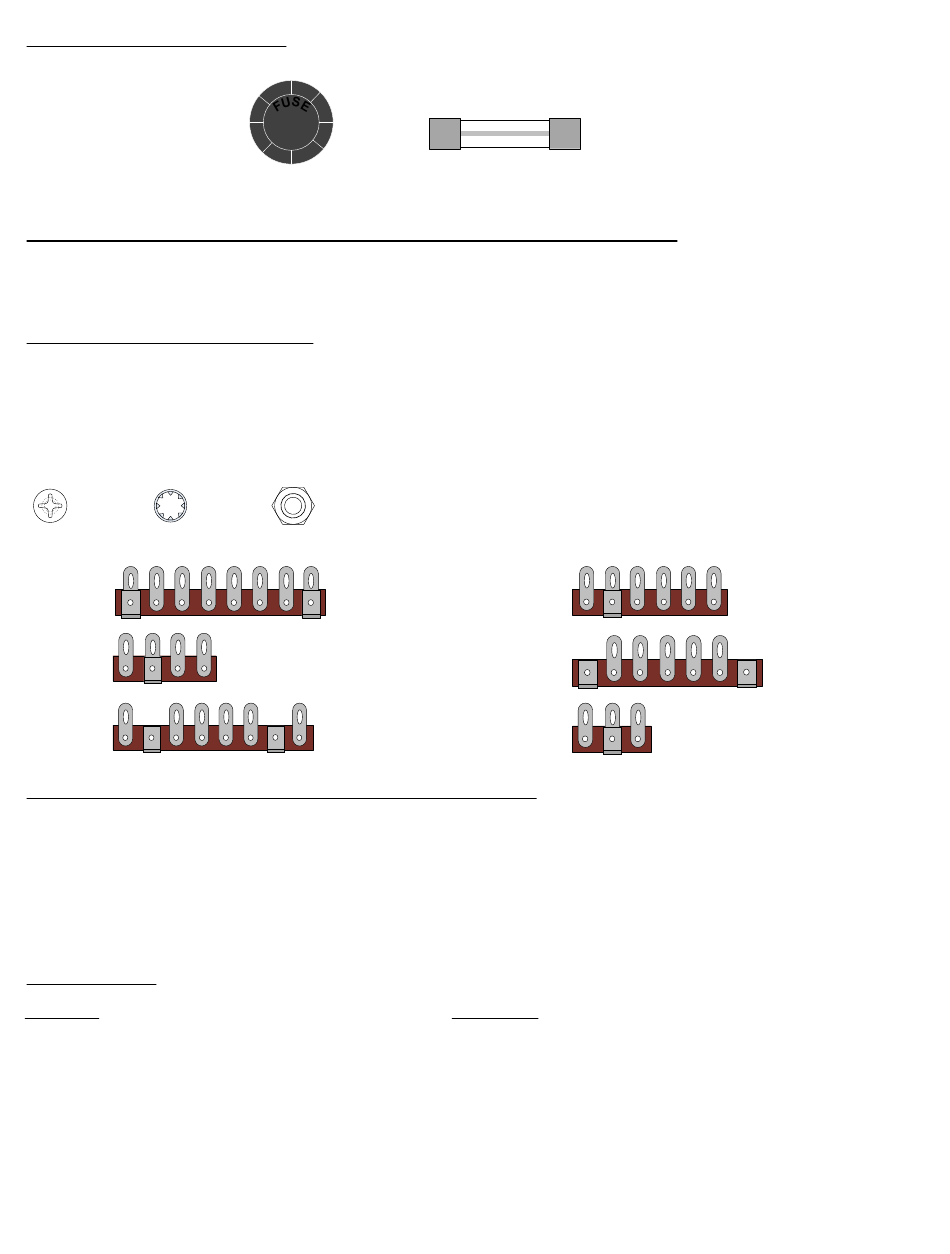

Drawing 8 shows where to mount the Fuse holder. You can also insert the 2A slow blow fuse at this time.
SECTION 4 – Mounting Internal Terminal Strips and Passive Components
Please refer to Drawings 9 - 11.
Step 1 – Mount the Terminal Strips
Drawing 9 shows what you should see when you flip the chassis box over so that you are looking inside and
viewing from the rear side. The terminal strip mounting holes are labeled T1 – T9. (You will be mounting 9
terminal strips in this step)
Use #6 hardware and Drawing 10 to mount the 9 terminal strips in the same orientation as in the drawing.
(13) (13)
T1
T2, T6
T3, T4
Step 2 – Solder Components to Their Terminal Strip Locations
Please see page 7 "Soldering Tips" if you are new to making solder connections.
Drawing 11 shows each passive circuit component and its respective location on the terminal strip. Be sure to
follow the same orientation of polarity as shown in the drawing for diodes and polarized electrolytic
capacitors.
T1 Components
Resistors
47Ω 1/2W
22kΩ 1/2W
1MΩ 1/2W
470Ω 1/2W
(13)
(1)
(2)
(2)
Capacitors
.1µF
1
.001µF
1
2
1
14
Note: Terminal strip terminals are
numbered from left to right with
mounting bracket directed towards
the viewer.
T5, T8
T7
T9
630V
630V
(2)
(1)
(1)
1
1
