Step 8 – Mount the Output Transformer
Remove the 1650P output transformer from its packaging. Drawings 4 and 5 show where to mount the
output transformer.
A) Cut off the blu/yel and brn/yel wires as described on the drawing.
B) Place the transformer on its side and push the wires (one at a time) through their respective grommet holes
as indicated on the drawing.
C) Slowly tilt the transformer upright so that the mounting holes line up with the transformer feet, while
continuing to push each bundle of wires through the grommet holes. (Be careful not to dislodge the rubber
grommets).
Step 9 – Mount the Power Transformer
Remove the 374BX power transformer from its packaging. Drawings 5 and 6 show where to mount the
power transformer.
A) Cut off the blu/yel, wht/blk, blk/red, brn/yel, yel, yel, and yel/blk wires as described on the drawing.
B) Place the transformer on its side and push the wires (one at a time) through their respective grommet holes
as indicated on the drawing.
C) Slowly tilt the transformer upright so that the mounting holes line up with the transformer feet, while
continuing to push each bundle of wires through the grommet holes. (Be careful not to dislodge the rubber
grommets).
D) Use #10 mounting hardware and two #6 locking lugs in place of regular lock washers on the two inside
screws. (You can cut a slot in the rings of both locking lugs and stretch them slightly to fit the #10 screws).

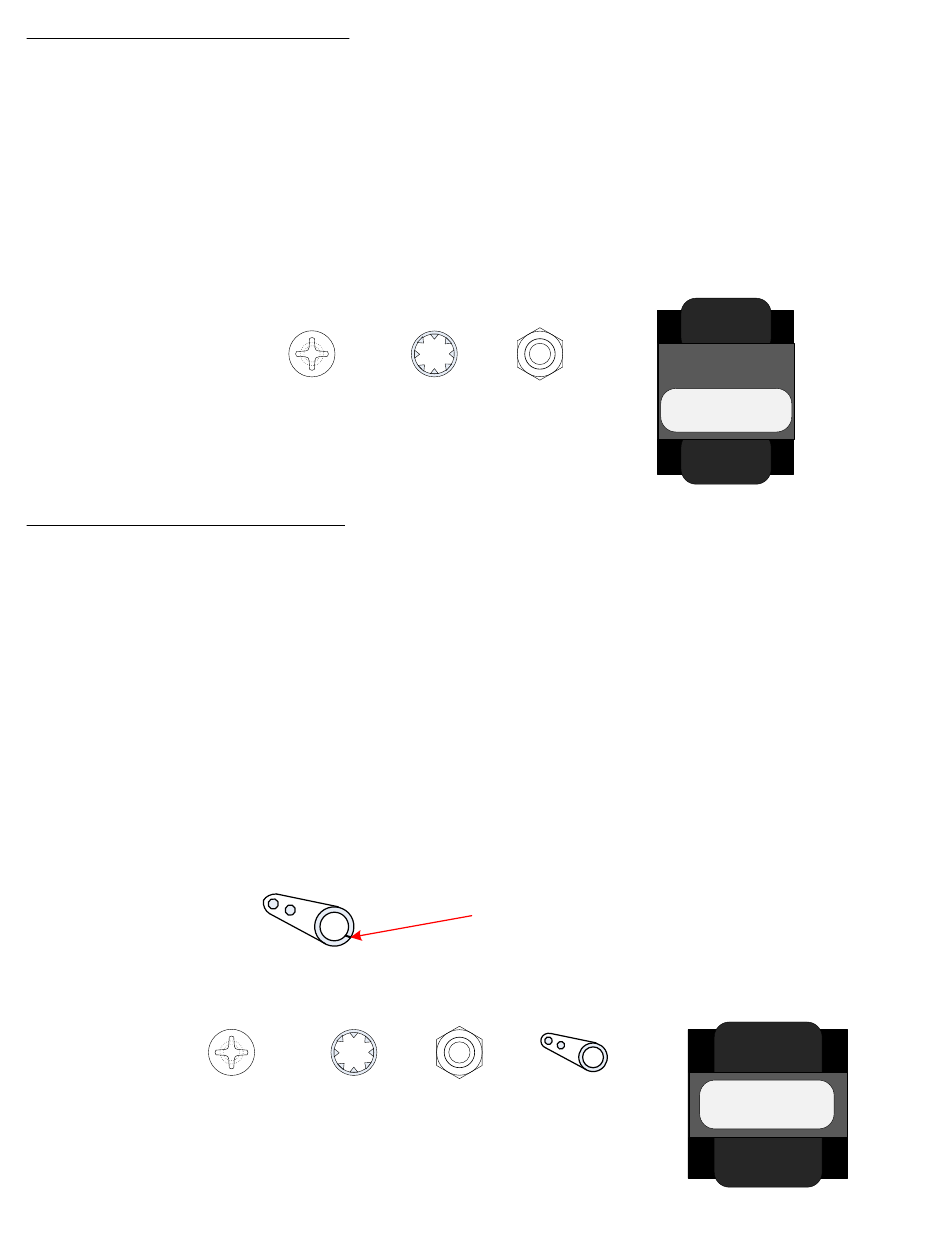

(4)
Use #10 mounting hardware.
(4)
Use #10 mounting hardware
and two #6 locking lugs.
(4)
Cut a slit in the locking lugs in
order to fit the #10 screws
(2) (4)
