Mod 101 Manual page 17

T12 Components
Resistors
5kΩ 5W
1kΩ 1W
One end only of 1k connects to this terminal from T13
T13 Components
Resistors
1kΩ 1W
One end only of 1k connects to this terminal from T12
4.7kΩ 1W
T14 Components
Jumpers
Add 2 jumpers wires (22 AWG) to T14 in
order to ground terminals 1 and 2.
J1 connects ground to terminal 1
J2 connects terminal 1 to terminal 2

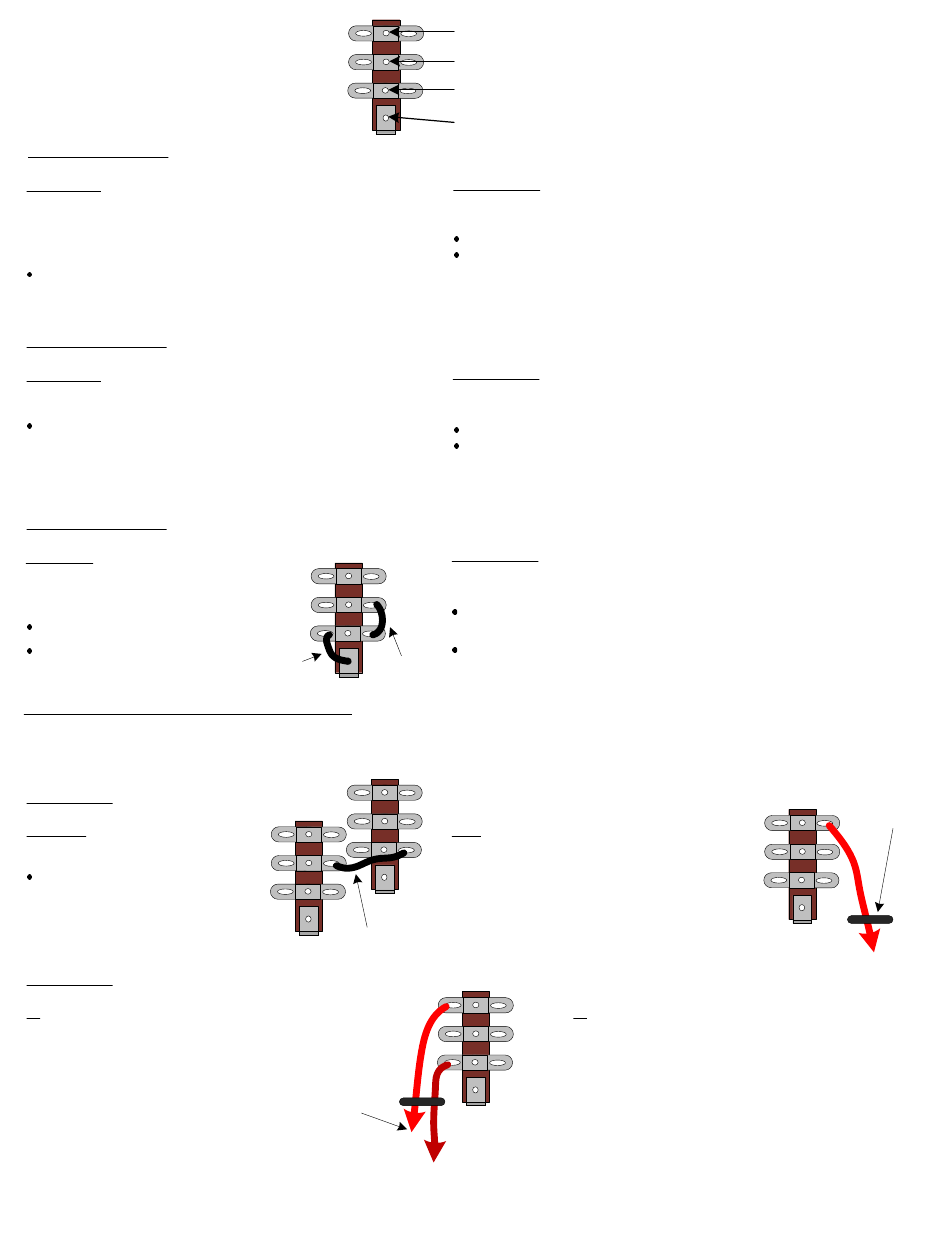

Step 2 – Connect Wires to Filter Section
Drawing 12 shows where to connect these wires on each terminal strip. Use 22 AWG wire.
(Drawing 14 can help you see where the other end of these wires will eventually be connected).
T10 Wires
Jumper
Add 1 jumper wire.
J3 connects T10 terminal 2 to T11
terminal 1
T12 Wires
B
B will connect to the power switch.
(Strip a little bit of the insulation on the
end that goes through the grommet to
help you identify it later).
(Make sure this wire has enough
length to get to the lamp holder on the
inside of the chassis).
Terminal 3
Terminal 2
Terminal 1
ground
Capacitors
22µF
1
1
Capacitors
22µF
1
1
Capacitors
Jumper Wires
22µF
J1 J2
HV
HV will connect to the standby switch.
(Make sure this wire has enough
T11
length to get to the lamp holder on the
J3 inside of the chassis).
T10
B
C
Stripped end
T12
12.5"
10"
17
500V
Positive side of bottom cap is connected to terminal 1
Positive side of top cap is connected to terminal 3
500V
Positive side of bottom cap is connected to terminal 1
Positive side of top cap is connected to terminal 3
500V
Negative sides of two 22µF@500V caps are connected to
terminal 1 (grounded)
Negative sides of the other two 22µF@500V caps are
connected to terminal 2 (grounded)
C
C will connect to T6.
(Make sure this wire has enough
length to get to V4).
2
2
4
grommet
HV
T10
About 12.5"
in length
