Step 2 – Connect the Power and Standby Switches

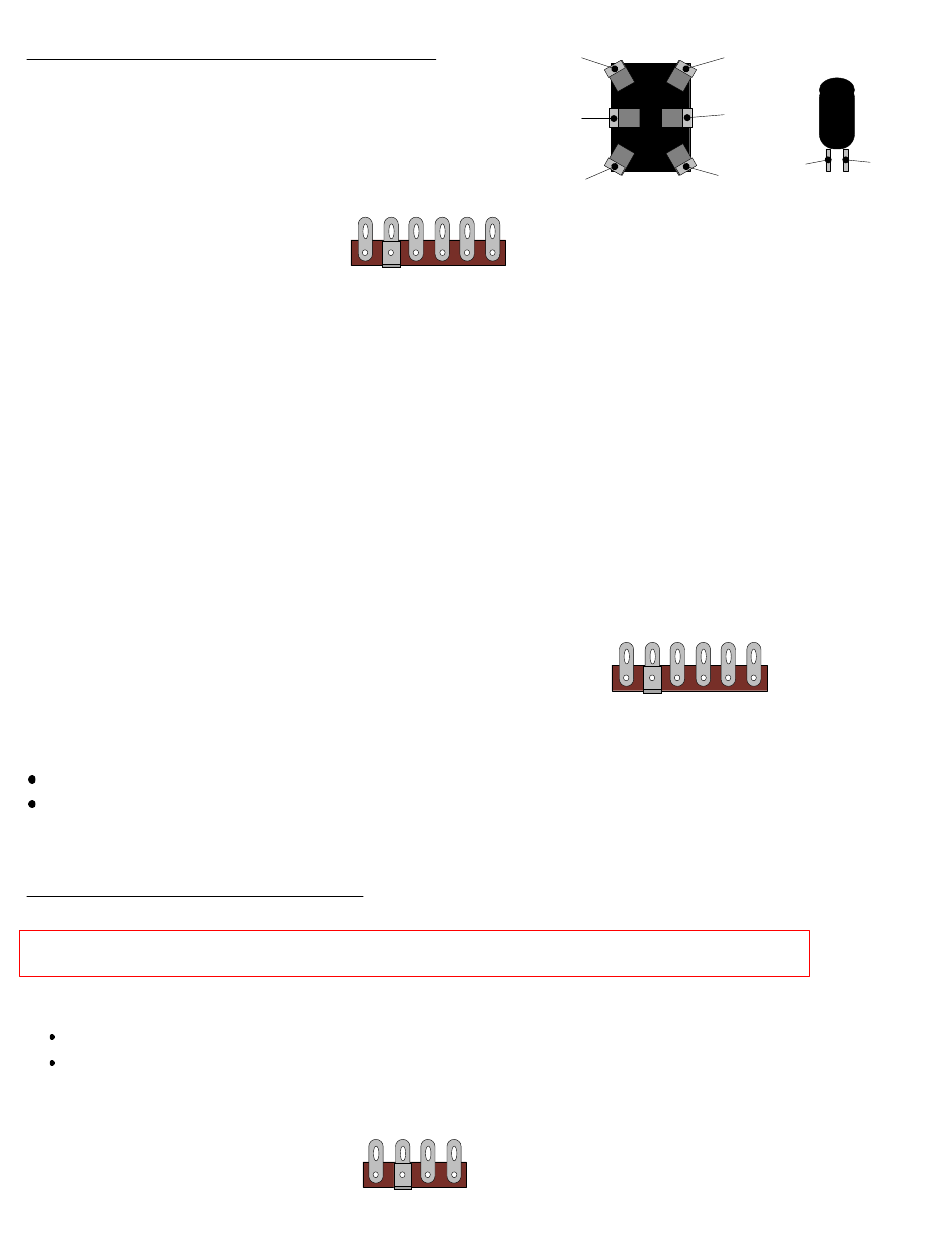

Drawing 13 shows some of these connections.
A) Connect the TR2 (red) to Pole B (do not solder this
connection, yet).
B) Connect the 1Ω, 5W resistor from Throw B Off to
the nearby locking lug.
C) Connect T8 terminal 5 to Pole.
D) Connect one end of the 360Ω, 10W resistor to Throw (do not solder this connection, yet).
(Leave enough room for this resistor to be able to connect
to the power switch without its leads accidentally
touching a neighboring connection point).
E) Twist and connect the two green TR1 wires to the lamp holder solder lugs (leave the top
holes open for a future connection).
(It does not matter which wire goes to which lug, but
make sure not to connect the wires to the same lug).
F) Twist and connect the TR1 grn/yel & red/yel wires to the nearby locking lug.
G) Twist and connect the two TR1 red wires to T8 terminals 4 & 6.
(It does not matter which wire goes to which terminal, but
make sure not to connect the wires to the same terminal).
H) Connect the TR1 violet wire to T8 terminal 1.
I) Twist and connect TR2 brown & blue wires to V3 pin 3 and V4 pin 3, respectively.
V3 pin 3 – brown wire
V4 pin 3 – blue wire
Step 3 – Connect the Filter Section Wires
Drawing 14 shows some of these connections.
Be careful not to confuse the sub-step letters on Drawing 14 with the wire names.
For example, the first part of Step 3 here is sub-step (A) and involves twisting wires "B" and "HV" together.
A) Twist and connect wires "B" (w/ stripped end) and "HV" to their respective locations.
B connects to Pole B (do not solder, yet)
HV connects to Throw (now solder this
connection leaving enough room for the resistor
to swing over to the power switch).
B) Connect wire "C" to T6 terminal 3.
6
1
T8
4
1
T6
19
Throw Throw
A B
On On
Pole Pole
A B
Throw Throw
A B
Off Off
Power Switch
Take your time when wiring these switches and be careful
not to unintentionally short any neighboring connections.
Make sure the Standby Switch connections do not touch
the chassis.
1
T8
Throw
Pole
Standby Switch
6
