SECTION 9 – Connect the Terminal Strip Interconnects

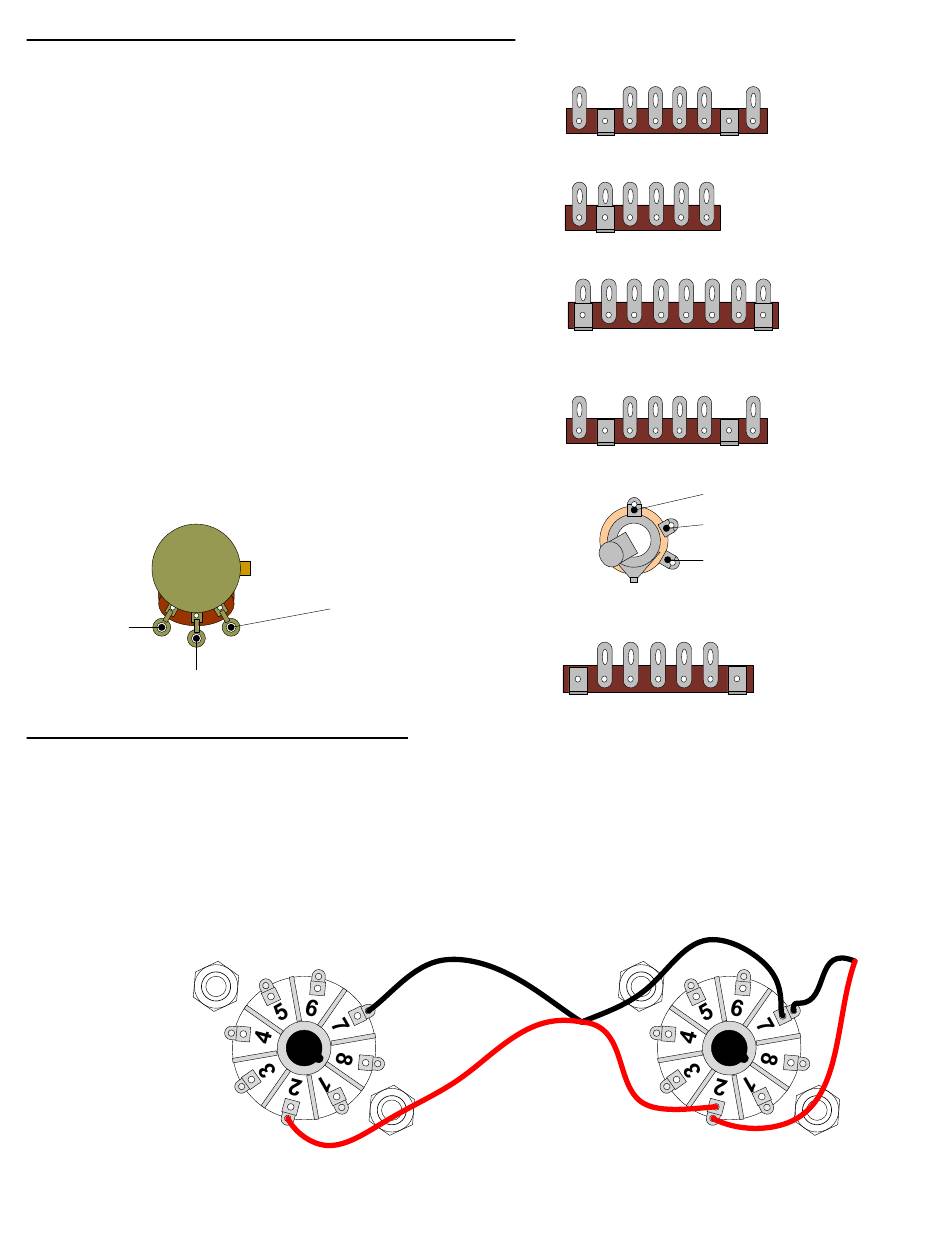

Please refer to Drawing 19.
A) Connect T4 terminal 6 to T5 terminal 5.
B) Connect T1 terminal 2 to T4 terminal 4.
C) Connect T4 terminal 3 to T3 terminal 3.
D) Connect T4 terminal 1 to T3 terminal 5.
E) Connect T1 terminal 7 to T3 terminal 1.
F) Connect T3 terminal 2 to Output Jack signal lug.
G) Connect T3 terminal 4 to T7 terminal 4.
H) Connect T3 terminal 6 to T7 terminal 2.
I) Connect the Bias Pot wiper lug to T7 terminal 3.
hot
wiper
SECTION 10 – Connect the Tube Filaments
Please refer to Drawing 20.
A) Twist and connect two 20AWG green wires from V4 pins 2 & 7 to V3 pins 2 & 7. (Only
solder the connection at V4).
(It does not matter which wire goes to which lug, but
make sure not to connect the wires to the same lug).
Note: Terminals are numbered from
left to right with mounting bracket
directed towards the viewer.
