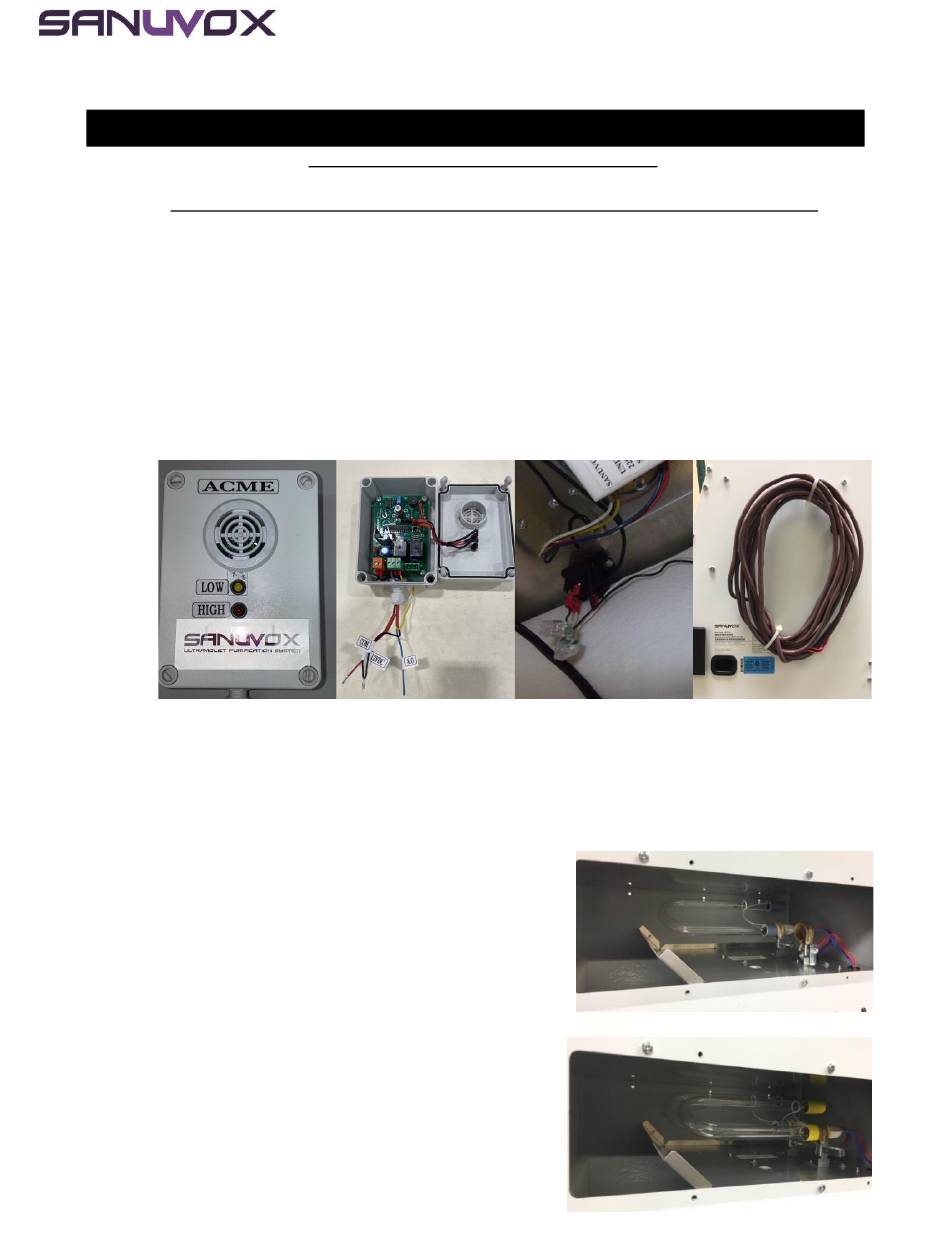

Please use these instructions along with the complete S300 instruction manual

Box contains:

•
One (1) S300 VOC unit that includes:
o One (1) ''J'' lamp UVC/UVV with yellow tips (part LMPHGXJ105-1
o One (1) ''J'' lamp all UVV with blue tips (part LMPHXJ105)
o Two (2) Multi voltage ballasts (part BST120/277GL) and 2 lamp-holding brackets
o One (1) Relay (part MSCELC16) connected to all UVV lamp
o Twenty (20) feet of wire that can be inserted in BX shield.
o One (1) VOC controller (part MSC1A) factory's pre-set
•
Two (2) replacement pre-filters (part MSCFTR10)
Controller casing

LAMP INSTALLATION

1. Remove the 6 screws on the front cover (The one with the SANUVOX logo). Put aside.
2. Remove the BLUE END CAP lamp from packaging. Use
the gloves provided.
3. Insert the lamp in the second clamp and tighten.
(furthest clamp from opening)
4. Holding the cap with one hand, plug the white
connector tightly on the lamp
5. Remove the YELLOW END CAP lamp from packaging.
Use the gloves provided.
6. Insert the lamp in the first clamp and tighten. (closest
to opening)
7. Holding the cap with one hand, plug the white
connector tightly on the lamp
8. Put the cover back on with the 6 screws
S300 VOC FOR SMOKING ROOM
INSTALLER INSTRUCTIONS
For a 2400 cubic feet maximum smoking room
Controller Opened
2'' exposed)
Relay
Page 1 of 5
20ft wiring

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S300 VOC and is the answer not in the manual?

Questions and answers

Related Manuals for Sanuvox S300 VOC

Summary of Contents for Sanuvox S300 VOC

  • Page 1 Relay 20ft wiring LAMP INSTALLATION 1. Remove the 6 screws on the front cover (The one with the SANUVOX logo). Put aside. 2. Remove the BLUE END CAP lamp from packaging. Use the gloves provided. 3. Insert the lamp in the second clamp and tighten.
  • Page 2 The VOC controller should be installed on the ceiling or wall -where the smoke will accumulate. The S300 VOC unit comes with 20ft of wire to link the controller box to the unit. If 20 ft is not long enough, you can replace it with BX cable with 3 wires.
  • Page 3 Page 3 of 5 VOC CONTROLLER (see also VOC controller detailed operation on page 4) Remove the cover. setting screw: Connect the wires with the marrettes supplied: triggers at CONTROLER WIRING SET 3.0 V DC BLACK (2) BLACK Positive BLUE ORANGE Sensor The detector is factory set at 3.0 V DC;...
  • Page 4 Page 4 of 5 VOC Operation (Ver. 2 firmware) 20-11-17 The circuit is designed to work with TGS822 or TGS 2620 The input supply voltage is 12VDC — 30VDC. A bridge rectifier is used to protect against reverse polarity, and a bypass shunt (LK3) will allow for common ground (if preferred). The VOC can also be powered by an AC source (with LK3 open).
  • Page 5 • The S300 VOC unit runs continuously, so its regular lamp purifies the air constantly. This dual zone lamp (UVC / UVV) is enough when there are only one or two smokers.
