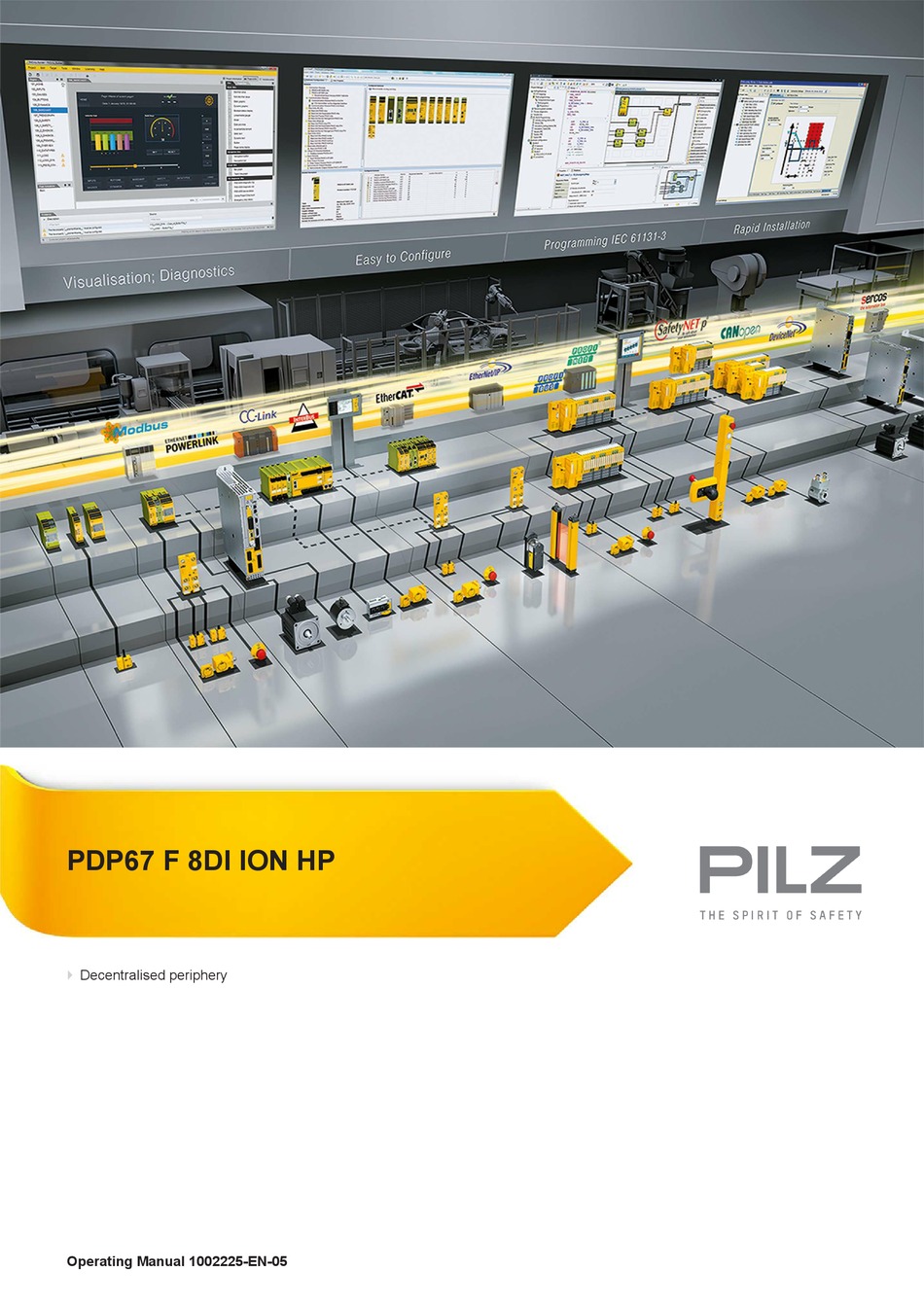

- Page 1 PDP67 F 8DI ION HP Decentralised periphery Operating Manual 1002225-EN-05...
-
Page 2: Validity Of Documentation
Introduction Validity of documentation This documentation is valid for the products PDP67 F 8DI ION HP, PDP67 F 8DI ION HP VA. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. - Page 3 Introduction INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PDP67 F 8DI ION HP 1002225-EN-05...
-
Page 4: Unit Structure
Unit features Application of the products PDP67 F 8DI ION HP, PDP67 F 8DI ION HP VA: Decentralised input module for connection to a Pilz control system, for use in a rugged in- dustrial environment up to protection type IP67. The product has the following features:... -
Page 5: Front View
Interface to the 24 V supply or to X8 on the upstream module Interface to the 24 V supply or to X7 on the downsteam module LEDs: – Device – Fault – Traffic – Load Supply Operating Manual PDP67 F 8DI ION HP 1002225-EN-05... -
Page 6: Scope Of Supply
Overview – IO0 ... IO7 Scope of supply Decentralised input module PDP67 F 8DI ION HP/PDP67 F 8DI ION HP VA 4 blind plugs Operating Manual PDP67 F 8DI ION HP 1002225-EN-05... -
Page 7: Intended Use
Safety Intended use The products PDP67 F 8DI ION HP, PDP67 F 8DI ION HP VA are decentralised input mod- ules designed for use in a rugged industrial environment up to protection type IP67. The module can be connected to a link module PNOZ ml2p or PNOZ mml2p from the con- figurable control system PNOZmulti. - Page 8 In safety-related applications, please comply with the mission time T in the safety-re- lated characteristic data. When decommissioning, please comply with local regulations regarding the disposal of electronic devices (e.g. Electrical and Electronic Equipment Act). Operating Manual PDP67 F 8DI ION HP 1002225-EN-05...
-
Page 9: Function Description
Communication with the control system is via a safe data link. Data is exchanged cyclically. 4.1.3 Diagnostics The status and error messages shown by the LEDs are saved in an error stack. The sys- tem software can read this error stack. Operating Manual PDP67 F 8DI ION HP 1002225-EN-05... -
Page 10: General Installation Guidelines
Fit 2 x M4 internal threads on the mounting surface. Use two fixing screws to attach the product to the mounting plate. With shielded cables, connect the functional earth to the upper fixing screw X0. 5.1.1 Dimensions Operating Manual PDP67 F 8DI ION HP 1002225-EN-05... -
Page 11: Supply Voltage
Overvoltage or interference voltage can damage or even destroy the electronics on the products PDP67 F 8DI ION HP, PDP67 F 8DI ION HP VA. The affected outputs on the control system are shut down. You should therefore take note of the relevant EMC measures. - Page 12 Please note that the connection of the additional supply voltage is not monitored for over- load. INFORMATION We recommend that you connect the functional earth to the upper fixing screw. Operating Manual PDP67 F 8DI ION HP 1002225-EN-05...
- Page 13 Supply Voltage X7 (male connector) X8 (female connector) Fig.: Pin assignment for the supply voltage Key: 1: + 24 VDC 2: + 24 VDC 3: 0 V 4: 0 V 5: n.a. Operating Manual PDP67 F 8DI ION HP 1002225-EN-05...
-
Page 14: General Wiring Guidelines
Please refer to the link module's operating manual for details of the maximum cable length. Pilz pre-assembled cable can be used to connect the inputs and outputs (see order ref- erence). We recommend you use pre-assembled Pilz connectors to connect the inputs and test pulse outputs (see order reference). -
Page 15: Connector Pin Assignment
X7 Assignment 5 pin M12 male connector 1: + 24 V DC B-coded 2: + 24 V DC 3: 0 V 4: 0 V 5: n.a. Operating Manual PDP67 F 8DI ION HP 1002225-EN-05... -
Page 16: Wiring Examples
Avoid short circuits by – Appropriate wiring – Wiring in accordance with the requirements of IEC 61076-2-101 and IEC 60204-1, clause 14.1.1 and 14.1.2 Operating Manual PDP67 F 8DI ION HP 1002225-EN-05... - Page 17 The input device must be approved for failsafe applications. If you are using input devices with different (diverse) channels, adjacent inputs may be used. The user program will detect short circuits via the feasibility check. Operating Manual PDP67 F 8DI ION HP 1002225-EN-05...
- Page 18 – Wiring in accordance with the requirements of IEC 61076-2-101 and IEC 60204-1, clause 14.1.1 and 14.1.2 24 V Dual-channel input device with different (diverse) channels 24 V 24 V Please ensure safety regulations and EMC guidelines are met! Operating Manual PDP67 F 8DI ION HP 1002225-EN-05...
- Page 19 Avoid short circuits by – Appropriate wiring – Wiring in accordance with the requirements of IEC 61076-2-101 and IEC 60204-1, clause 14.1.1 and 14.1.2 Operating Manual PDP67 F 8DI ION HP 1002225-EN-05...
- Page 20 Wiring 24 V Single-channel, fail- safe input device Test pulse T0 Please ensure safety regulations and EMC guidelines are met! Operating Manual PDP67 F 8DI ION HP 1002225-EN-05...
- Page 21 Dual-channel input device with diverse channels Test pulse T1 Test pulse T0 Dual-channel input device with identical channels Test pulse T1 Test pulse T0 Please ensure safety regulations and EMC guidelines are met! Operating Manual PDP67 F 8DI ION HP 1002225-EN-05...
-
Page 22: Operation
Yellow The supply voltage is/was too low. Once the fault has been rectified, the LED will not stop flashing until the system has been switched off and then on again. Voltage is missing Operating Manual PDP67 F 8DI ION HP 1002225-EN-05... -
Page 23: Technical Details
Min. processing time of input when signal changes from "1" to "0" 0,50 ms 0,50 ms Min. processing time of input when signal changes from "0" to "1" 0,70 ms 0,70 ms Potential isolation Operating Manual PDP67 F 8DI ION HP 1002225-EN-05... - Page 24 Shock stress In accordance with the standard EN 60068-2-27 EN 60068-2-27 Acceleration Duration 11 ms 11 ms In accordance with the standard EN 60068-2-29 EN 60068-2-29 Acceleration Duration 16 ms 16 ms Operating Manual PDP67 F 8DI ION HP 1002225-EN-05...
- Page 25 Dimensions Height 162,0 mm 162,0 mm Width 60,0 mm 60,0 mm Depth 30,0 mm 30,0 mm Weight 375 g 375 g Where standards are undated, the 2010-03 latest editions shall apply. Operating Manual PDP67 F 8DI ION HP 1002225-EN-05...
-
Page 26: Safety Characteristic Data
A safety function's SIL/PL values are not identical to the SIL/PL values of the units that are used and may be different. We recommend that you use the PAScal software tool to calculate the safety function's SIL/PL values. Operating Manual PDP67 F 8DI ION HP 1002225-EN-05... -
Page 27: Order Reference
Order reference for module Product type Features Order no. PDP67 F 8DI ION HP Decentralised input module 773 601 PDP67 F 8DI ION HP VA Decentralised input module, V2A ring nut 773 615 10.2 Order reference for accessories Plug Product type Features Order no. - Page 28 380 261 Adapter Product type Features Order no. PSEN ma adapter Adapter for connection to safety switch 380 300 PSENmag PSEN cs adapter Adapter for connection to safety switch 380 301 PSENcode Operating Manual PDP67 F 8DI ION HP 1002225-EN-05...
- Page 29 380 312 PSS67 M12 connector Socket, M12, straight, 5-pin, B-coded 380 313 PSS67 M12 connector Connector, M12, angled, 5-pin, B-coded 380 314 PSS67 M12 connector Socket, M12, angled, 5-pin, B-coded 380 315 Operating Manual PDP67 F 8DI ION HP 1002225-EN-05...
- Page 30 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95446300 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
