Hirschmann SPIDER 3TX-TAP Description And Operating Instructions

Description and operating instructions
Industrial ETHERNET Rail Switch
P P
x x
SPIDER 3TX-TAP SPIDER 5TX
SPIDER 5TX EEC
P x
DA/STAT
SPIDER 4TX/1FX
SPIDER 4TX/1FX EEC
SPIDER 4TX/1FX-SM EEC
Hirschmann. Simply a good Connection.
P
x
SPIDER 8TX
SPIDER 8TX EEC
P x
DA/STAT
SPIDER 4TX/1FX-ST EEC
P
x
DA/STAT
SPIDER 1TX/1FX
SPIDER 1TX/1FX EEC
SPIDER 1TX/1FX-SM
SPIDER 1TX/1FX-SM EEC
SPIDER
SPIDER xTX(/xFX)
The Rail Switches / media converters
– SPIDER 3TX-TAP
– SPIDER 5TX
– SPIDER 5TX EEC
– SPIDER 8TX
– SPIDER 8TX EEC
– SPIDER 1TX/1FX (media converter)
– SPIDER 1TX/1FX EEC (media converter)
– SPIDER 1TX/1FX-SM (media converter)
– SPIDER 1TX/1FX-SM EEC (media converter)
– SPIDER 4TX/1FX
– SPIDER 4TX/1FX EEC
– SPIDER 4TX/1FX-ST EEC
– SPIDER 4TX/1FX-SM EEC
in short SPIDER, are switches especially
designed for use in industrial environments.
It supports ETHERNET 10 MBit/s and Fast
ETHERNET 100 MBit/s.
The devices support switched ETHERNET
networks in accordance with IEEE standard
802.3 or 802.3u using copper and fiber optic
technology. The devices are plugged onto
the standard bar.

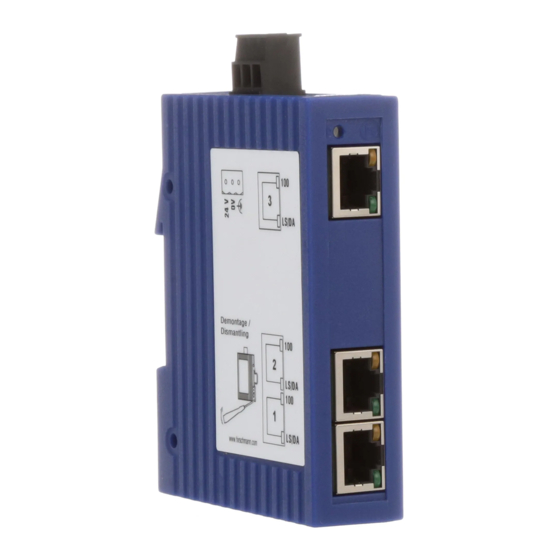

The SPIDER 3TX-TAP (SPIDER 5TX, SPIDER
5TX EEC, SPIDER 8TX, SPIDER 8TX EEC)
devices have three (five, eight) 10/100
MBit/s twisted pair ports (RJ45 connectors).
It is possible to connect up to three (five,
eight) data terminal equipments or other
network segments to the TP ports using twi-
sted pair cabling.
The SPIDER 1TX/1FX... devices have one
10/100 MBit/s twisted pair port (RJ45
connectors) and one 100 MBit/s fiber optic
port (100BASE-FX, Duplex SC connector). It
is possible to connect one data terminal
equipments or other network segments to
the TP ports using twisted pair cabling. One
further DTE or optical network component
can be connected to the fiber port.
The SPIDER 4TX/1FX... devices have four
10/100 MBit/s twisted pair ports (RJ45
connectors) and one 100 MBit/s fiber optic
port (100BASE-FX, Duplex SC connector or
ST connector on SPIDER 4TX/1FX-ST EEC).
It is possible to connect up to four data
terminal equipments or other network
segments to the TP ports using twisted pair
cabling. One further DTE or optical network
component can be connected to the fiber
port.
The TP ports support autonegotiation, auto-
polarity and autocrossing.
The fiber optic port of the SPIDER
1TX/1FX... and SPIDER 4TX/1FX... supports
full duplex (FDX).
