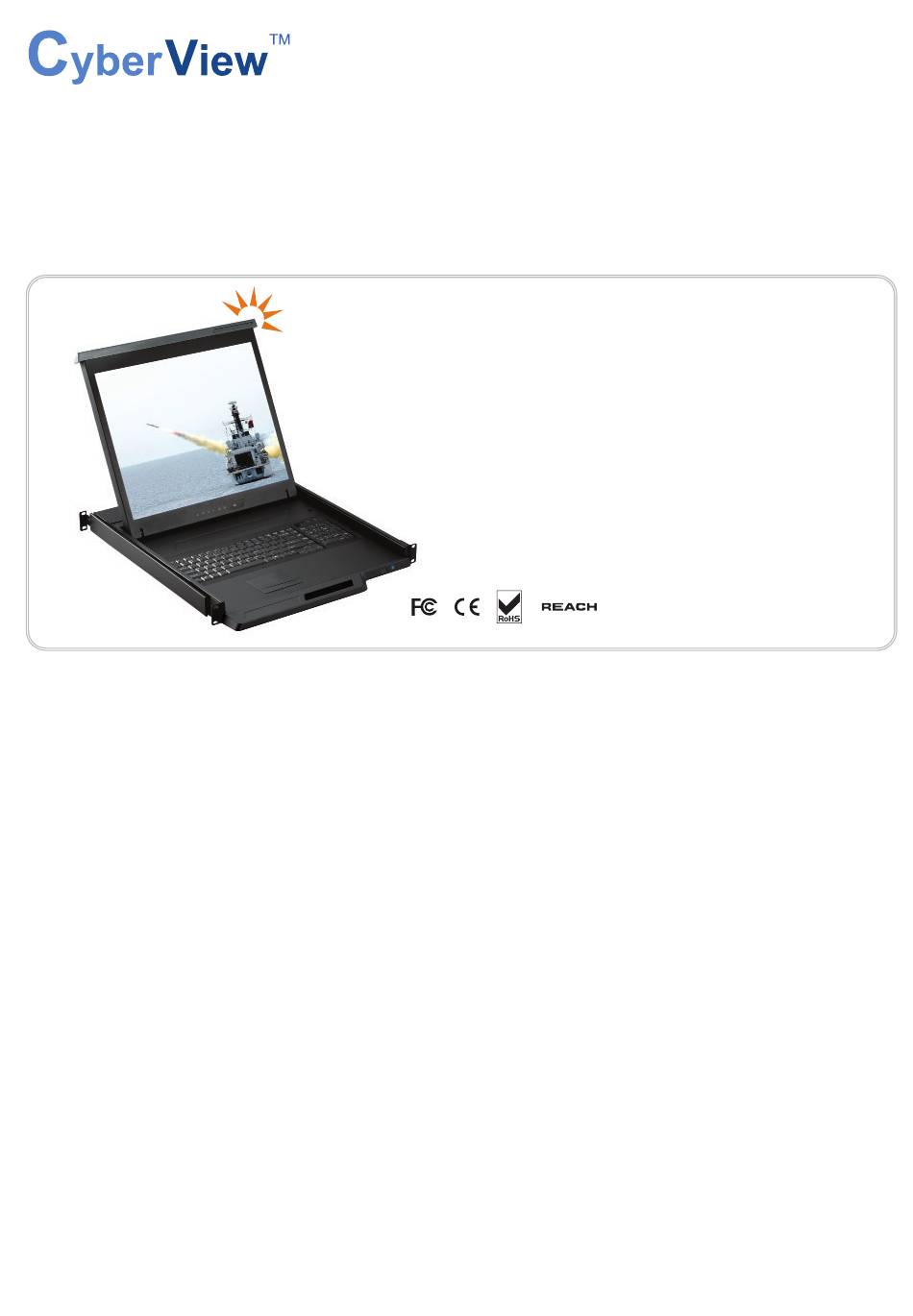

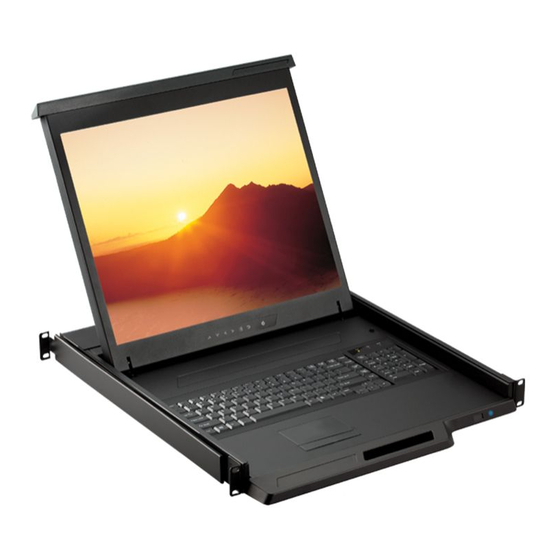

- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” High Brightness LCD 1000 cd/m² H117 / H119 1U LCD Console Drawer Options : - AV / DVI-D / HDMI - DC power Designed and manufactured by Austin Hughes UM-CV-751-H117-Q220V1 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-H117-Q220V1 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > H117 / H119 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) < Part. 3 >... - Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-H117-Q220V1 www.austin-hughes.com...
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content H117 / 119 H117 or H119 unit X 1 - CB-6A 6ft VGA console cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 6 Weight 441.6 x 480 x 44 mm 590 x 808 x 140 mm 12.5 kg 17.5 kg H117 17.4 x 18.9 x 1.73 inch 23.2 x 31.8 x 5.5 inch 27.5 lb 38.5 lb 441.6 x 520 x 44 mm 590 x 808 x 140 mm 13.2 kg...
-
Page 7: Installation
< 1.3 > Installation - Installation Slides H117 / 119 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. - Page 8 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-H117-Q220V1 P. 4 www.austin-hughes.com...
-
Page 9: Connection
< 1.4 > Connection to USB Server via CB-6A cable H117 / 119 LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable USB server < 1.4 > Connection to external KVM via CB-6A cable LCD Console Drawer POWER... -
Page 10: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations H117 H119 Panel Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. ) - Page 11 H117 / 119 Environmental Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Conditions Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random...
-
Page 12: Keyboard / Mouse Specifi Cations
3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States EMEA United Kingdom Germany France Spain Italy Asia Japan Korea UM-CV-751-H117-Q220V1 P. 8 www.austin-hughes.com... -
Page 13: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) H117 / 119 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust... - Page 14 H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc: for the language, OSD position, graphic mode, ratio, reset and timer UM-CV-751-H117-Q220V1 P. 10 www.austin-hughes.com...
- Page 15 fi x the issue. ( 3 ) For the above options, H117 depth will be extended from 480mm ( 18.9” ) to 530mm ( 20.9” ) and H119 depth will be extended from 520mm ( 20.5” ) to 570mm ( 22.4” ) S-Video &...
- Page 16 ( 2 ) DC option excludes AC power adapter and power cord. ( 3 ) H117 depth will be extended from 480mm ( 18.9” ) to 530mm ( 20.9” ) ( 4 ) H119 depth will be extended from 520mm ( 20.5” ) to 570mm ( 22.4” ) UM-CV-751-H117-Q220V1 P.
- Page 17 < Part. 4 > KVM Integration H117 / 119 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port -801D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Matrix -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf Cat6...
- Page 18 Intentionally Left Blank UM-CV-751-H117-Q220V1 www.austin-hughes.com...
- Page 19 Intentionally Left Blank UM-CV-751-H117-Q220V1 www.austin-hughes.com...
- Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-H117-Q220V1 www.austin-hughes.com...
