German pool SGV-2617 User Manual

German pool SGV-2617 User Manual

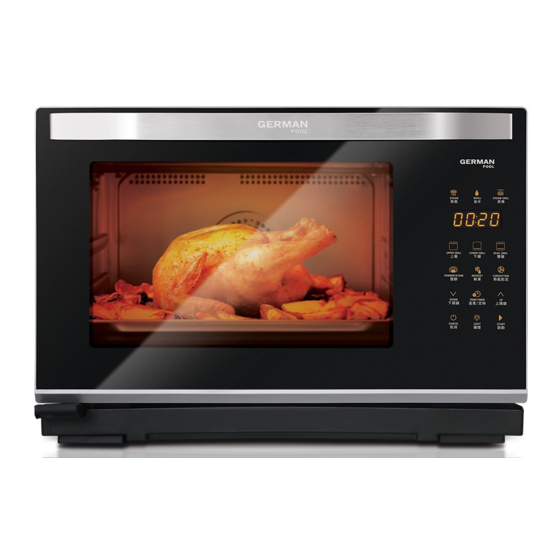

2-in-1 free standing steam oven

Advertisement

Quick Links

2-in-1 Free Standing Steam Oven
在使用之前請詳細閱讀「使用說明書」及「保用條款」,並妥為保存。
Please read these instructions and warranty information carefully
before use and keep them handy for future reference.
使 用 說 明 書
二 合 一蒸氣焗爐
SGV-2617
U S E R
M A N U A L
P.1
熱 旋 風 版
Tornado Series
即時網上 登記保用
Online Warranty Registration

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SGV-2617 and is the answer not in the manual?

Questions and answers

Summary of Contents for German pool SGV-2617

  • Page 1 SGV-2617 二 合 一蒸氣焗爐 2-in-1 Free Standing Steam Oven 熱 旋 風 版 Tornado Series 即時網上 登記保用 Online Warranty Registration 在使用之前請詳細閱讀「使用說明書」及「保用條款」,並妥為保存。 Please read these instructions and warranty information carefully before use and keep them handy for future reference. U S E R M A N U A L 使...
  • Page 2 目錄 1. 產品結構 2. 控制面板 3. 技術規格 4. 使用前注意事項 5. 安全注意事項 請即進行保用登記﹗ 有關保用條款細則,請看本說明書最後一頁。 6. 各模式預設參數及調校範圍 7. 操作說明 Please register your warranty information now ! - 開啟 / 關閉控制面板 For Warranty Terms & Conditions, - 開啟 / 關閉爐燈 - 蒸煮模式 please refer to the last page of this user manual. - 蒸烤模式...
  • Page 3 產品結構 產品結構 部件名稱 功能 爐門安全装置 確保爐門關上,蒸焗爐才開始運作。 上發熱管 置於爐腔上層,產生熱量,加熱食物。 進氣口 讓蒸氣進入爐腔 。 儲水箱 盛裝清水以產生蒸氣。 層架 承托烹調食物時用的食物盤 。 下發熱管 置於爐腔下層,產生熱量,加熱食物。 排出爐腔多餘水份 。 排水口 用於排出爐腔內多餘的水蒸氣。 排氣口 安裝於排氣口上以控制蒸氣排放。 排氣口導套 盛放要烹調的食物 。 網架 安裝在爐腔底部,用於盛接烹調食物時產生的油汁。易拆設計 集油盤 方便清潔。 烤盤 承載要烹調的食物或裝有食物的容器,主要於烤焗時使用。 隔熱保護網架 防止接觸發熱管。 隔熱手套 由蒸焗爐取出食物或托盤時使用 。 電源開關 總電源的開關 。 接水盤...
  • Page 4 控制面板 控制面板 注意:當功能被選定時,相應的按鍵燈亮起。當功能不可選定時,相應的按鍵燈會熄滅。 圖示 功能 100℃蒸煮模式 無水提示 高温蒸烤模式 時間/溫度顯示 上燒烤模式 下燒烤模式 上下同時燒烤模式 發酵 / 保温模式 解凍模式 熱風對流模式 爐燈 减少烹調時間/温度 選擇切換顯示時間/温度 增加烹調時間/温度 開關(長按) / 取消(單按) 調節温度後作確定,調節時間後作啟動 當温度顯示閃動時,表示腔體温度正在上升,直至温度達 到預設温度,圖示會變為長亮 如使用“蒸煮”模式對煮食器皿進行消毒操作,請先確保被消毒的器皿為耐高溫玻璃或其他耐高溫材質所製。...
  • Page 5 安全注意事項 技術規格 • 使用前請詳細閱讀“使用手冊”全部內容。 • SGV-2617 型號 本蒸焗爐專為家庭加熱及烹調食物而設計, 故不適用於其他工商用途。 • 本產品並不適宜讓兒童、身體或心智殘障、缺乏經驗或知識的人士操作,除非該人士得到負責保障 220 - 240V ~ 50Hz 額定電壓及額定頻率 其安全的人士的監管或指引。 • 烹調前最好把水注滿至水箱最大刻度處,不要使用其他液體,並且把水箱充分插入爐內,確保固定 2100W 額定輸入功率 到位,以免工作時水位不夠導致不能工作。 • 每次使用完畢後務必清空水箱,此舉有助於保持衛生及蒸焗爐的保養。 505mm×349mm×478mm 產品尺寸(寬×高×深) • 烹調過程中盡量不要打開爐門,以免蒸氣流失,影響烹調效果。 • 烹調過程中因需要翻轉食物或其它需要必須打開爐門時,請不要讓兒童或用户身體部位(特別是臉 350mm×230mm×300mm 爐內尺寸(寬×高×深) 部)靠近爐門,以免被蒸氣燙傷。 • 爐腔容積 從蒸焗爐內提取食物和器皿時,應當使用器皿叉或戴上隔熱手套,以免被高温燙傷。 • 不要用蒸焗爐儲存任何物品。 約14.6 Kg 淨重...
  • Page 6 操作說明 各模式預設参數及調校範圍 開啟 / 關閉控制面板 觀 看操 作 視 頻 1. 開啟電源總開關 。 預設時間 預設溫度 時間調校範圍 溫度調校範圍 模式 2. 長按 鍵1秒,控制面板啟動 。 3. 控制面板啟動的情况下長按 鍵1秒,控制面板關閉。 5 分鐘 5 - 180 分鐘 (3 小時) 80 - 115 蒸煮 開啟 / 關閉爐燈 5 分鐘...
  • Page 7 操作說明 使用須知 上燒烤 / 下燒烤 / 上下燒烤 / 熱風對流 下列現象均屬正常 : 例如:設置燒烤時間為45分鐘,温度200℃的程式。 現象 原因 1. 在待機狀態下按 鍵 。 2. 顯示預設溫度為180℃,按 鍵調節温度至200℃,按 鍵確認。认 進氣口噴水 當水箱內的水較滿時, 進氣口有時會噴出少量的水,這是正 常現象。 3. 顯示預設時間為5分鐘,按 鍵調節時間至45分鐘,再按 鍵確認。 排氣口噴水 使用蒸煮模式後,爐腔壓力效大, 若此時立即關上爐門,排氣 小提示 : 開始烹煮後,需要加熱數分鐘才能達至預設温度,可按 切換顯示時間或温度。顯示温度 口有機會噴出少量的水,這是正常現象。建議等待約60秒後 時, 圖示閃動,表示正在升温中,當達至預設温度,顯示會變為長亮並發出響聲示 才關上爐門。...
  • Page 8 清潔與保養养 故障排除 注意:切勿使用腐蝕性强的清潔劑、天拿水、汽油、研磨粉和金屬刷來清洗此爐的任 觀 看 操作 視 頻 故障現象 可能原因 排解方法 何部位。 1. 清洗爐腔之前,必須確保蒸焗爐處於關機狀態, 並從插座上拔去電源線插頭。 蒸焗爐沒有連接電源或爐側電源 接上電源(配有保險絲);開啟 2. 經常保持爐腔清潔。當食物或湯水濺到爐內壁時,可用濕布擦去。不宜用硬質物料 總開關未開啟 電源總開關 清潔。如爐內壁非常骯髒,請使用軟性清潔劑,切勿使用粗糙、磨損性的清潔劑。 顯示屏上沒有顯示 3. 蒸焗爐烹調用水建議使用純淨水或蒸餾水,因自來水中的礦物質會令爐腔產生水 電源線不能正常工作 聯系售後服務部 垢。 顯示屏損壞 4. 每次使用後請清空水箱及接水盤。如有需要可取出水箱及接水盤,擦洗乾淨晾乾後 聯系售後服務部 顯示屏顯示異常 再放回原處。 電路板電子元件損壞 5. 每次使用後請打開爐門10-15分鐘風乾爐腔及門框。 電源沒有正確連接 重新連接電源线 6. 應經常清潔門的密封邊,可用軟乾布擦淨。 爐門沒有妥善關好...
  • Page 9: Table Of Contents

    Table of Contents 故障排除 代碼 代碼詮釋 可能成因 1. Product Structure 爐腔高温保護裝置啟動 腔體温度感應器温度高於安全設定 2. Control Panel 3. Technical Specifications 蒸發盤高温保護裝置啟動 蒸發盤高温保護裝置啟動温度高於安全設定 4. Notice Before Use 啟動工作後3分鐘無變化且腔體温度低於30℃ 爐腔低温保護裝置啟動 5. Safety Notes 6. Default Settings 蒸發盤低温保護裝置啟動 啟動工作後3分鐘無變化且蒸發盤温度低於30℃ 7. How to Use 温度感應器連接發生故障 温度感應器斷路 - Control Panel ON / OFF - Lamp ON / OFF 温度感應器發生故障...
  • Page 10: Product Structure

    Product Structure Product Structure Parts Name Function Door safety switch The appliance will be disable when the door is open. Upper heating element To produce heat for food cooking/reheating from the top Steam inlet To allow steam to enter the oven cavity Water tank To hold water for steam generation Shelves...
  • Page 11: Control Panel

    Control Panel Control Panel Remarks: when the function is selected, the button will lights on. When the mode is not available to select, the light will be off. ICON FUNCTION Steam mode ( 100 Water Refill Steam Grill mode Cooking time/temperature display Upper grill mode Lower grill mode Dual grill mode...
  • Page 12: Technical Specifications

    • This manual contains important information regarding the safety, use and maintenance of your steam Model SGV-2617 oven. Read and keep it in an easily accessible place for future reference. • This appliance is solely designed for domestic use. Do not operate the appliance for commercial use or...
  • Page 13: Default Settings

    Default Settings How to Use Control Panel ON / OFF Watch the video clip Default 1. Turn on the main power switch. Mode Default Time Time Range Temperature Range Temperature 2. Press the button for 1 second, control panel will be activated. 3.
  • Page 14: Defrost

    How to Use Tips for Using the Oven Upper Grill / Lower Grill / Dual Grill / Convection The following circumstances are regarded as normal: Example: 45-minute grilling at 200 Circumstances Reason 1. In Standby mode, press button. 2. Preset Temperature of 180 C is displayed, press button to adjust temperature to 200 C, press...
  • Page 15: Cleaning And Maintenance

    Cleaning and Maintenance Troubleshooting NOTE: NEVER USE METAL SCOURING PADS, ABRASIVE CLEANERS, STEEL WOOL PADS, Watch the video clip or GRITTY WASHCLOTHS to clean any part of the oven. Problem Cause Solution 1. Make sure the appliance is turned off, and disconnected from the power supply Oven is not connected to power;...
  • Page 16: Troubleshooting

    - the serial number is modified, damaged or removed from the product. - 機身編號被擅自塗改、破壞或刪除。 4. German Pool will, at its discretion, repair or replace any 4. 總代理有權選擇維修或更換配件或其損壞部份。 defective part. 5. This warranty will be void if there is any transfer of 5.
  • Page 17 傳真 Fax: +853 2875 2661 HONG KONG TOP BRAND TEN YEAR ACHIEVEMENT AWARD © 版權所有。未獲德國寶授權,不得翻印、複製或使用本說明書作任何商業用途,違者必究。 © All rights reserved. Copying, reproducing or using the contents of this manual is not allowed without prior authorization from German Pool, violators will be prosecuted. P.32 SGV-2617-M-18(4)
