Operating Instructions
Bench platform Puro®
98628-000-64
Edition 1.1.1
8/5/2021
Minebea Intec Bovenden GmbH & Co. KG, Leinetal 2, 37120 Bovenden, Germany
Phone: +49.551.309.83.0 Fax: +49.551.309.83.190

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Puro and is the answer not in the manual?

Questions and answers

Related Manuals for Minebea Intec Puro

Summary of Contents for Minebea Intec Puro

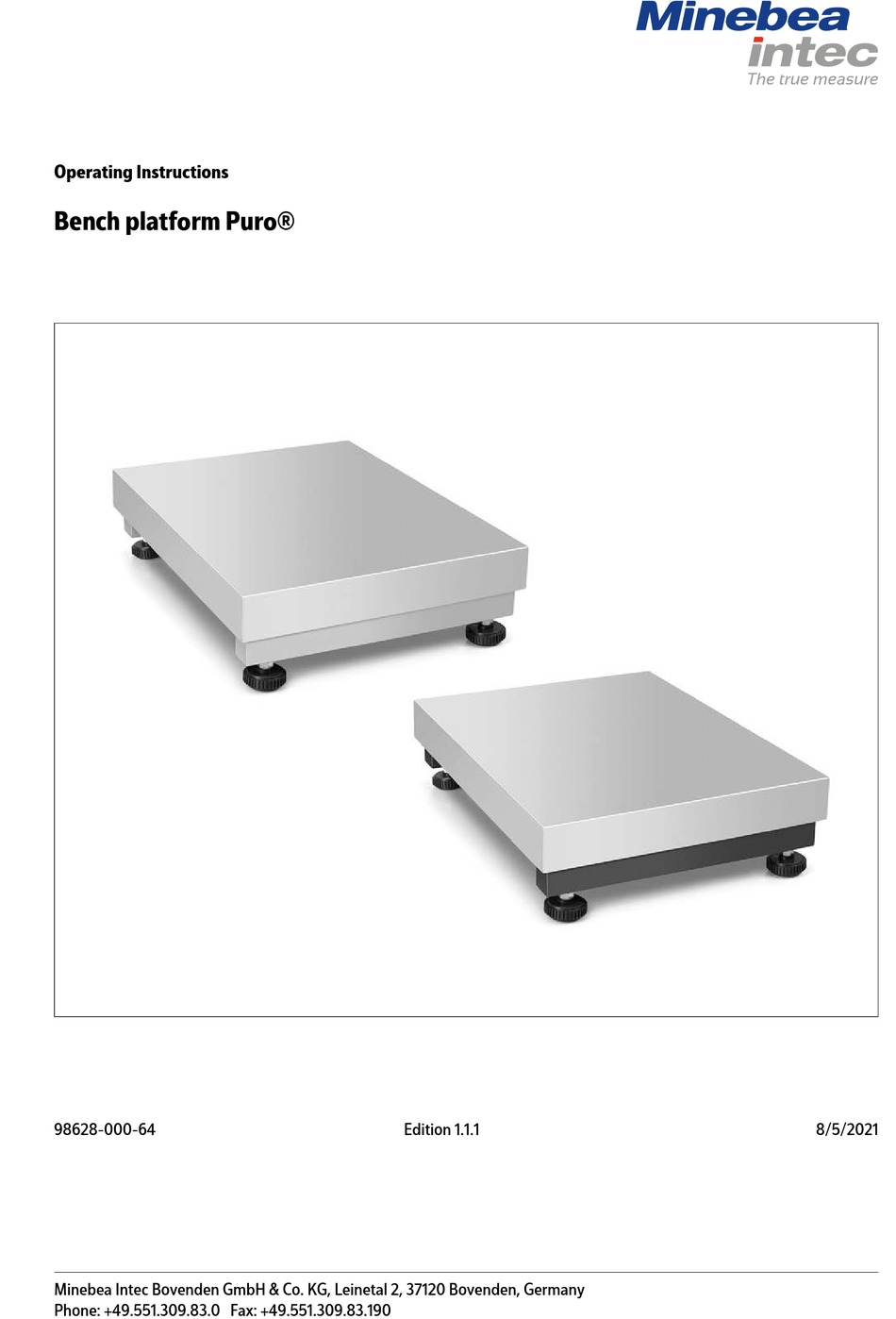

  • Page 1 Operating Instructions Bench platform Puro® 98628-000-64 Edition 1.1.1 8/5/2021 Minebea Intec Bovenden GmbH & Co. KG, Leinetal 2, 37120 Bovenden, Germany Phone: +49.551.309.83.0 Fax: +49.551.309.83.190...
  • Page 2 Any information in this document is subject to change without notice and does not represent a commitment on the part of Minebea Intec unless legally prescribed. This product should only be operated/installed by trained and qualified personnel. In correspondence concerning this product, the type, name, and release number/serial number as well as all license numbers relating to the product have to be cited.

  • Page 3: Table Of Contents

    Bench platform Puro® Table of contents Table of contents Introduction............................2 Read the manual................................. 2 This is what operating instructions look like ......................2 This is what lists look like............................2 This is what menu items and softkeys look like..................... 2 This is what the safety instructions look like......................

  • Page 4: Introduction

    Bench platform Puro® 1 Introduction Introduction Read the manual Please read this manual carefully and completely before using the product. This manual is part of the product. Keep it in a safe and easily accessible location. This is what operating instructions look like 1.
  • Page 5 1 Introduction Bench platform Puro® NOTICE Warning of damage to property and/or the environment. NOTICE indicates that damage to property and/or the environment may occur if appropriate safety measures are not observed. Take the corresponding safety precautions. Note: User tips, useful information, and notes.

  • Page 6: Safety Instructions

    If there are grounds for rejection of the goods, a claim must be filed with the carrier immediately. A Minebea Intec sales or service organization must also be notified. Visit our website http://www.puroscales.com or contact your dealer.

  • Page 7: Ip Protection

    2 Safety instructions Bench platform Puro® 2.3.2 IP protection The load cells fulfill protection grade IP67. 2.3.3 Storage and transport conditions NOTICE Material damage is possible. Unpacked devices may lose their precision due to strong vibrations; strong vibrations may impair the safety of the device.

  • Page 8: Device Installation

    Bench platform Puro® 3 Device installation Device installation Mechanical preparation 3.1.1 Ambient conditions Only use within buildings. Operating temperature range: -10°C to +40°C Storage temperature: -30°C to +70°C Relative humidity: 20% to 85%, non-condensing Altitude: up to 3,575 m 3.1.2 Installation location Place the device on a stable, flat, and horizontal surface.

  • Page 9: Connecting

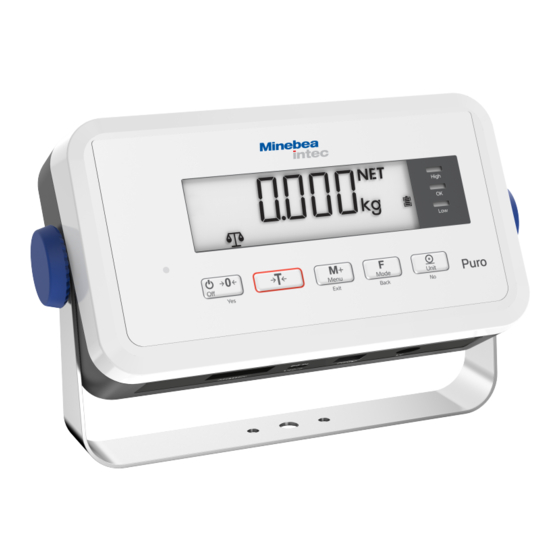

    Extend the adjustable feet (counter-clockwise) in order to lower the scale. Connecting 3.2.1 Connecting the platform Connection of an analogue Puro® platform or a commercially available strain gauge load cell to a Puro® indicator. Switch off the indicator and disconnect from the electrical supply. 2. Turn over the indicator.
  • Page 10 Bench platform Puro® 3 Device installation DGND Ground Signal- Signal+ Sense- Supply voltage- Supply voltage+ Sense+ 9. Tighten the screw connection. 10. Reassemble the housing, tighten the screws, and apply the rubber plugs. 3.2.1.1 Color coding Wiring of the load cell cable...

  • Page 11: Maintenance/Repairs/Cleaning

    Defective or damaged cables or screw connections must be replaced as a complete unit. WARNING Improper repairs can pose considerable risks to the user. Only have repairs carried out by Minebea Intec qualified dealers using original spare parts. Cleaning 4.2.1...

  • Page 12: Waste Disposal Policy

    Bench platform Puro® 5 Waste disposal policy Waste disposal policy If the packaging is no longer required, please take it to your local waste disposal facility and/or a reputable disposal company or collection point. The packaging largely consists of environmentally friendly materials, which are suitable for recycling.

  • Page 13: Technical Data

    6 Technical data Bench platform Puro® Technical data Specification Model number Max load (g) 30,000 60,000 150,000 300,000 Readability d (g) Max. resolution 6,000 6,000 7,500 6,000 Repeatability error Linearity ±1 d ±1 d ±1 d ±1 d Dimensions in mm...

  • Page 14: Accessories

    Bench platform Puro® 6 Technical data Model number 700 x 560 x 700 x 560 x Shipping weight (kg) Accessories Option Order no. Stand for table, stainless steel YP-CBS1 Height 300 mm: 355 x 305 mm Stand for table, stainless steel...
  • Page 15 6 Technical data Bench platform Puro® EF-FEP-.../EF-FES-... All dimensions in mm EF-GFP-.../EF-GFS-... All dimensions in mm Minebea Intec EN-13...
  • Page 16 Published by Minebea Intec Bovenden GmbH & Co. KG | Leinetal 2 | 37120 Bovenden, Germany Phone: +49.551.309.83.0 | Email: info@minebea-intec.com www.minebea-intec.com...
