Chapter 2. Identify parts

This chapter helps identify parts location for ThinkAgile VX1320 Appliance, VX 1SE Certified Node models.

Front view

The front view of the ThinkAgile VX1320 Appliance, VX 1SE Certified Node servers.
Front view of the server

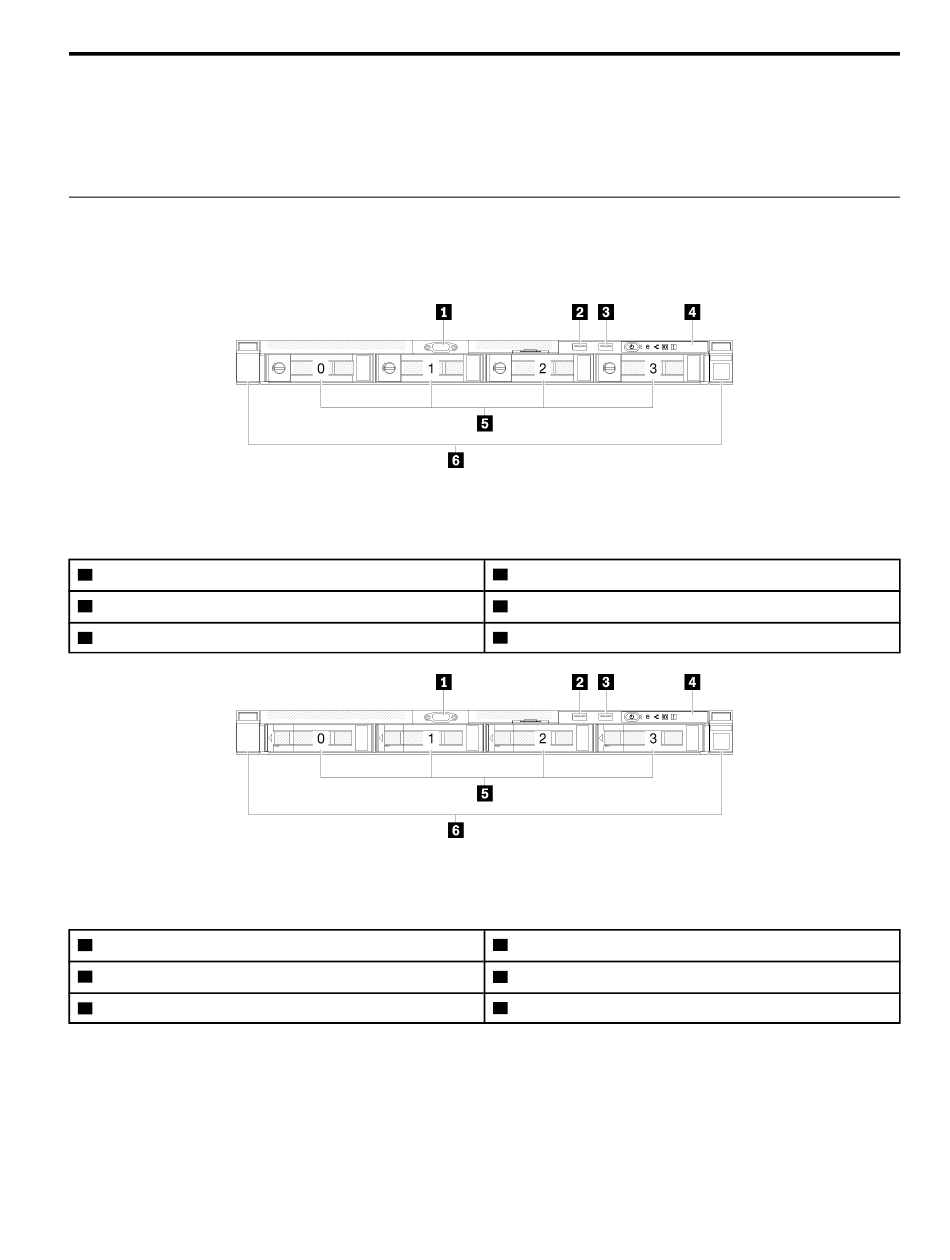

Figure 1. Four simple-swap drives model front view
Table 2. Components on the four simple-swap drives model front view
1
VGA connector (optional)
2
USB 2.0 connector
3
USB 3.1 Gen 1 connector
Figure 2. Four hot-swap drives model front view
Table 3. Components on the four hot-swap drives model front view
1
VGA connector (optional)
2
USB 2.0 connector
3
USB 3.1 Gen 1 connector
© Copyright Lenovo , 2019
4
Front operator panel
5
Four simple-swap drive bays (0-3)
6
Rack release latches
4
Front operator panel
5
Four hot-swap drive bays (0-3)
6
Rack release latches
3
