VERTIV EDGE UPS 500-3000VA I
Quick Installation Guide
INSTALLATION
1. Inspecting the UPS
Inspect the UPS for any signs of
obvious damage. If damage is
visible, do not proceed and call
our warranty support line for
assistance at 0080011554499
(Toll free), +39 02 98250222
(Toll), or email at eoc@vertiv.
com.
2. Choosing a location
Install the EDGE UPS in a
temperature-controlled
environment that is free of
corrosive and conductive
contaminants. Avoid locations
near heat or water sources and
exposed to direct sunlight. For
proper ventilation, leave four
inches clearance on all sides of
the UPS.
The input outlet should be
nearby and easily accessible.
3. Installing the UPS
The EDGE UPS and optional
EDGE UPS External Battery
Cabinets may be installed in
either a tower or rack
configuration. For tower
installation, assemble and attach
the tower support stands. For
rack installation, attach the
brackets to the UPS, install the
rail kit in the rack if needed, and
install the UPS in the rack.
CONNECTIONS
1. Connecting Loads
The UPS has
non-programmable and
programmable rear outlets.
Plug your critical equipment
(such as computer, monitors,
etc.) into the non-programmable
outlets and your less-critical
equipment (such as printers
and other less-often used
peripherals) into the
programmable outlets.
2. USB Communication
Connection (Optional)
Connect the EDGE through the
rear panel USB Type-B port to a
2
SL-70582_REV0_1-20

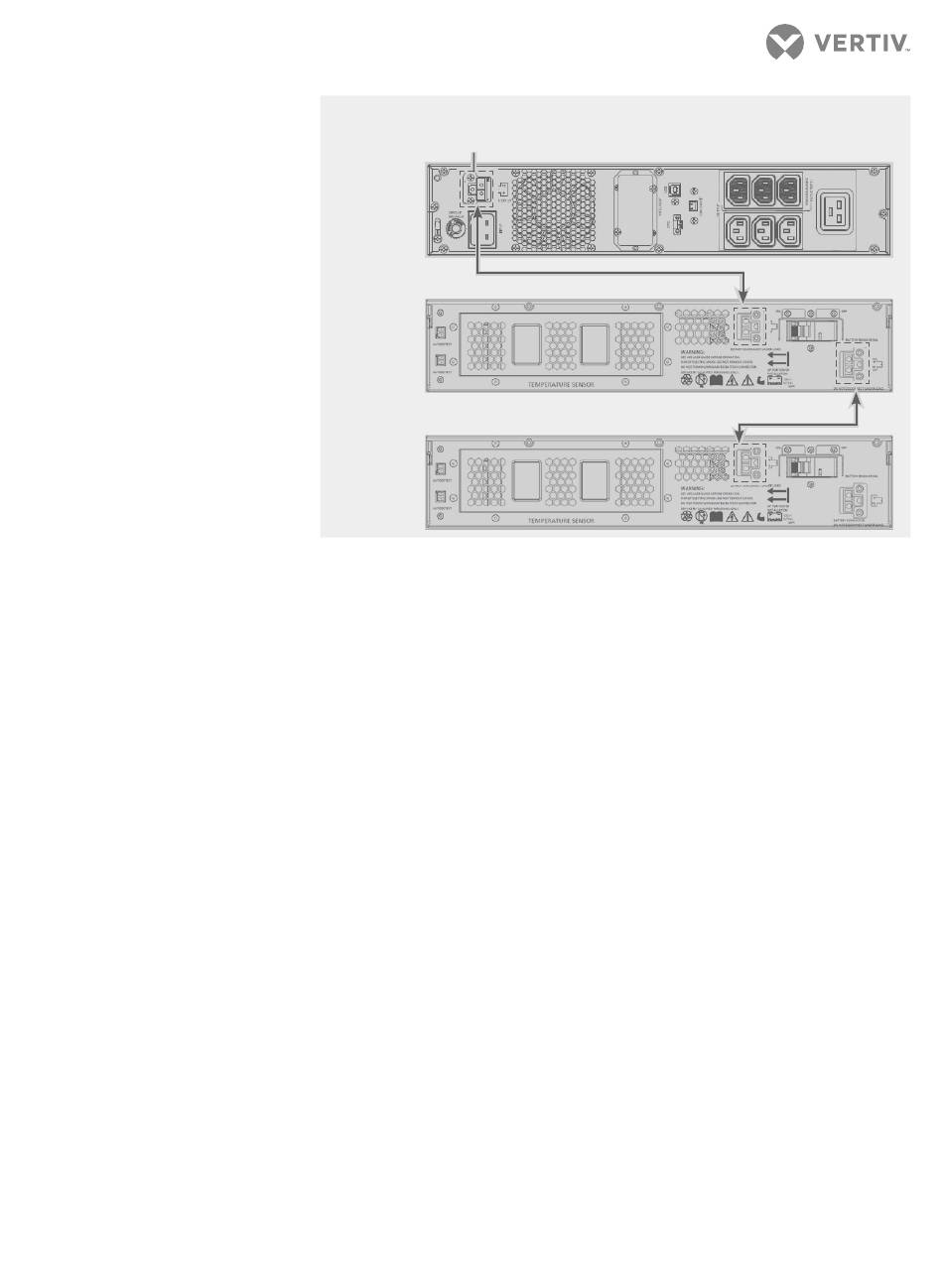

EDGE UPS to External Battery Cabinet Connections
EBC port
EDGE-
2200RT120
Shown
Single/First
EBC
Second EBC
computer via USB to allow
unattended, controlled-
shutdown of your computer in
case of UPS input power failure.
The UPS works with the
computer running software
built-in within the Microsoft®
Windows® operating system or
the Vertiv Power Assist
Shutdown software located at
www. V ertiv.com.
3. Emergency Power-
off (EPO) Connection
(Optional)
To comply with national and
local wiring codes and
regulations, the EPO connector
internally disconnects all power
sources to the UPS and
connected equipment. To use
this feature remove the factory-
installed jumper on the rear-
panel EPO connector and
connect to active-open
contacts that are normally
closed but open during an
emergency power off event.
Operating logic may be
reversed in the Settings menu.
If you do not use the EPO
connector, leave the
factory-installed jumper in
place and the default (active
open) EPO setting in the
Settings Menu.
4. External Battery Cabinet
Connection (Optional)
External battery cabinets
provide longer battery run-time
for connected devices. Refer to
EDGE User Guide, to select the
appropriate model and quantity
for your EDGE model and
applications. You can connect up
to 6 battery cabinets to the
EDGE.
1. Turn off the UPS utility input.
2. Open the front left cover on
the UPS and the External
Battery Cabinet (EBC) and
disconnect the internal
batteries.
3. Remove the EBC terminal
covers from the UPS and the
EBC. Connect one end of
the external battery cable to
the UPS and one end to the
battery cabinet. If
connecting more than one
external battery, connect
one end of the external
battery cable to the second
