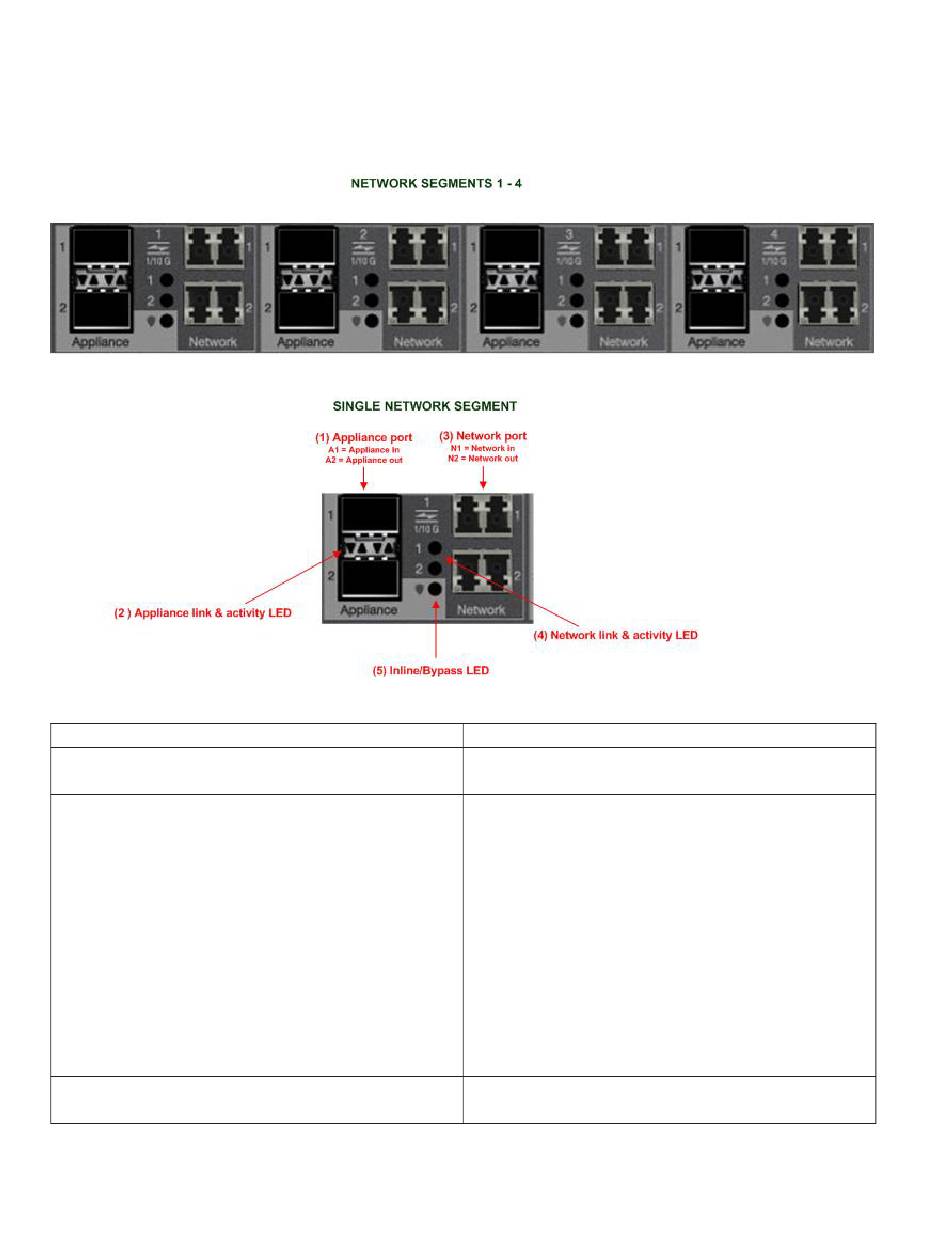

Network segments
You can connect up to four Network IPS appliances to the 10G Network Active Bypass unit. The four
network segments work independently.
Table 2. Network segments
Item
(1) Appliance port
(2) Appliance link & activity LED
(3) Network port
4
10G Network Active Bypass V3.4: User Guide
Description
Ports that connect the 10G Network Active Bypass unit
to a Network IPS appliance.
Link and activity status of the connected Network IPS
appliance.
10G uses orange LED
Blinking orange = Traffic activity (blinks only when
receiving traffic, not when transmitting traffic)
Solid orange = Traffic link
1G uses yellow LED
Blinking yellow = Traffic activity
Solid yellow = Traffic link
Ports that connect the 10G Network Active Bypass unit
to the network and from the network.
