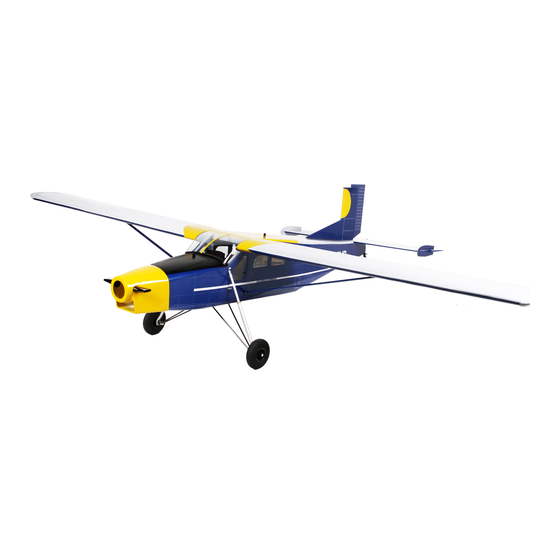

H-KING PILATUS PORTER PC-6 Building Instructions

Ep/gp balsa 2150mm arf
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EP/GP Balsa 2150mm ARF
SPECIFICATIONS
Wingspan:
Length:
Flying weight:
Gas Engine:
Nitro Engine:
95 2T / 1.20 4T
Motor:
SK3-4240-740Kv
Radio:
6 Channels / 7-8 servos
WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and
cause serious human injury or property damage. Before flying your airplane, ensure the air field is spacious enough.
Always fly it outdoors in safe areas and seek professional advice if you are unexperienced.
DISCLAIMER:
All product names, logos, brands, trademarks and registered trademarks are property of their respective owners. Use of these names, trademarks and brands does
not imply endorsement.
RADIO CONTROL MODEL
BUILDING INSTRUCTIONS
2150mm
1600mm
4.6-4.9Kg
20cc 2T

Advertisement

Table of Contents
loading

Related Manuals for H-KING PILATUS PORTER PC-6

Summary of Contents for H-KING PILATUS PORTER PC-6

  • Page 1 RADIO CONTROL MODEL BUILDING INSTRUCTIONS EP/GP Balsa 2150mm ARF SPECIFICATIONS Wingspan: 2150mm Length: 1600mm Flying weight: 4.6-4.9Kg Gas Engine: 20cc 2T Nitro Engine: 95 2T / 1.20 4T Motor: SK3-4240-740Kv Radio: 6 Channels / 7-8 servos WARNING! This radio controlled model is NOT a toy. If modified or flown carelessly it could go out of controll and cause serious human injury or property damage.
  • Page 2 REQUIRED FOR OPERATION (Purchase separately) Extension for aileron, Flap , Elevator servo. Glow 1.20 4T Engine Gas Engine: 20cc SK3-4240-740Kv 6 channel radio for airplane Brushless Motor with 5 standard servos and 3 mini servos Nylon tube Flapx2 standard servo - Aileronx2 standard servo Rudderx1 standard servo - Elevatorx2 mini servo Motorx1 mini servo GLUE...

  • Page 3: Landing Gear

    1- Landing gear PC-6 Porter 5.5mm Collar 3x12mm screw Stopper (metal) 5.5mm Collar Stellring ....8 Stopper (metal) ...2 ...4 Nylon strap 3mm set screw 5mm landing ....4 Collar ....4 gear BOTTOM - VIEW Aluminum tube 5mm landing gear 5mm Main landing gear (front) Caution: All holes on the bottom of the fuselage are pre-drilled at factory...

  • Page 4: Bottom View

    4- Tail gear PC-6 Porter Tail gear push rod Tail gear control horn B 3x12mm screw Tail gear control arm ...4 ...2 Note: Slide the tail gear Tail gear mount push rod in to he hole of the tail gear control horn ...2 B first.

  • Page 5: Top View

    6- Vertical stabilizer PC-6 Porter Full the rudder out of the Vertical stabilizer. Cut 7/8” (22mm) long slots along the hinge line in the trailing edge of the vertical stabilizer for the rudder torque rod bearing. Position of the slot on the side of the vertical stabilizer, 2”(50mm) from the bottom (6A) Test-fit the rudder torque rods into the slot.
  • Page 6 7- Vertical stabilizer PC-6 Porter Remove the vertical stabilizer from the fuselage. Using the sharp hobby knife, carefully cut away the covering inside the lines which were marked above(6C) * WARNING: When removing any covering from the airframe, please ensure that you secure the cut edge with CA or similar cement.

  • Page 7: Horizontal Stabilizer

    8- Vertical stabilizer PC-6 Porter Drill a 5/64”(2mm) diameter hole in torque rod mounting slot, marking sure that you drill the hole perpendicular to the leading edge of the rudder. TOP-VIEW VERTIAL STABILIZER Apply a thin layer of petroleum jelly Apply thin CA glue on the left (right) of the hinge.
  • Page 8 10- Horizontal stabilizer PC-6 Porter 30x4mm nylon bolt ....3...

  • Page 9: Elevator Servo

    11- Horizontal stabilizer PC-6 Porter Control horn ......2 2x30mm screw ....4 12- Elevator servo PC-6 Porter BOTTOM - VIEW...

  • Page 10: Glow Engine

    13- Gas Engine & Cowl PC-6 Porter ! Align the center mark on the engine with the mark on the fire-wall. Remove the engine mount and drill a 13/64”(5mm) hole Using a pencil or felt tipped pen, mark the fire wall through the fire-wall at each of the four marks marked (10B).

  • Page 11: Electric Motor

    15- Electric motor PC-6 Porter FRONT-VIEW Plywood motor mounting plate Vorderansicht Sperrholztrager Platten - Using a plywood motor mounting plate as a template, mark the fire wall where the four holes are to be drilled (12A). - Remove the plywood motor mounting plate and drill a 13/64”(5mm) hole through the fire-wall at each of the four marks marked (12B).
  • Page 12 16- Fuel tank / Lipo. Battery PC-6 Porter Full the magnetic battery hatch out of the fuselage. Put the Li-Po battery in place. Magnetic battery hatch. Put the fuel tank in place. 17- Aileron and flap servo PC-6 Porter Aileron control horn Aileron servo extension cord...

  • Page 13: Installing The Wing

    18- Installing the wing PC-6 Porter Aluminum tube Wooden dowel Wooden dowel 19- Installing the wing PC-6 Porter 3x15mm screw / Schraube ......2 ......2 The blind-nut on the bottom of the wing installed at factory The holes on the bottom of the wings and side of the fuselage are pre-drilled 3x15mm...
  • Page 14 20- Decor PC-6 Porter IMPORTANT: Please do not clean your model with pure alcohol, only use liquid soap with water or use glass cleaner to clean on surface of your model to keep the colour not fade. Cut through the balsa Cut through the balsa Sticker Sticker...
  • Page 15 21- Balance and control surface PC-6 Porter Aileron 15mm 15mm 30mm Rudder Flap 30mm 20mm Elevator 15mm Do not try to fly an out-of balance model! 15mm 75 ~ 80mm...
