Installation, Operation & Maintenance Instructions
DESCRIPTION

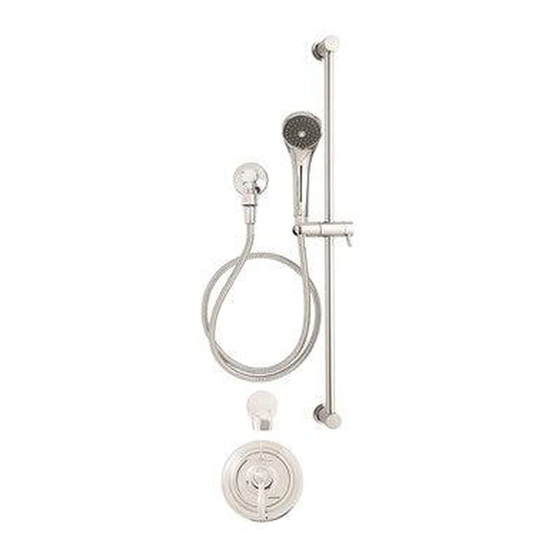

Speakman SentinelPro™ Combination, SLV-5450 includes: Trim with integral Volume Control / Diverter
Handle (CPT-5401), Hand Shower with Flow Control (VS-100-PC), Supply Ell with Wall Flange (VS-115), In-line
Vacuum Breaker (VS-117), 30in Slide Bar (VS-123), Tub Spout (S-1554), and 69in Metal (SS) Hose. This
combination does not include the Shower Valve.
This combination should be installed with one of the following
Speakman SentinelPro™ Thermostatic/Pressure Balance Diverter Shower Valves
CPV-TP-DV:
CPV-TP-DV-PXC: Thermostatic/Pressure Balance Diverter Shower Valve
CPV-TP-DV-PXE: Thermostatic/Pressure Balance Shower Valve
SPECIFICATIONS
CPT-5401 T/P DIVERTER VALVE TRIM:
FINISH: Polished Chrome
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
VS-100-PC HAND SHOWER WITH FLOW CONTROL:
CONNECTIONS: ½" NPSM Male Inlet
FLOW RATE: 2.5 gpm (9.5 L/min)
FINISH: Polished Chrome
COMPLIANCE: ASME A112.18.1 / CSA B125.1 Standard
VS-115 SUPPLY ELL WITH WALL FLANGE:
CONNECTIONS: ½" NPT Female Inlet; ½" NPSM Male Outlet
FINISH: Polished Chrome
VS-117 IN-LINE VACUUM BREAKER:
CONNECTIONS: ½" NPSM Female Inlet; ½" NPSM Male Outlet
FINISH: Polished Chrome
COMPLIANCE: ASSE 1014 Standard
VS-123 30in SLIDE BAR:
FINISH: Polished Chrome
S-1554 TUB SPOUT:
CONNECTIONS: ½" NPT Female Inlet
FINISH: Polished Chrome
400 Anchor Mill Rd. New Castle, DE 19720
SPEAKMAN
SLV-5450
SENTINELPRO™ COMBINATION SERIES
Thermostatic/Pressure Balance Diverter Shower Valve
Sweat & Thread Connections
PEX F1807 Crimp Inlet Connections
PEX F1960 Cold-Expansion Inlet Connections
SPEAKMAN
07/31/18
www.speakman.com
®
®
Phone: 800-537-2107
92C-SLV-5450-01
Fax: 800-977-2747
Advertisement
Table of Contents
Related Manuals for Speakman SENTINELPRO SLV-5450
Summary of Contents for Speakman SENTINELPRO SLV-5450
- Page 1 SENTINELPRO™ COMBINATION SERIES DESCRIPTION Speakman SentinelPro™ Combination, SLV-5450 includes: Trim with integral Volume Control / Diverter Handle (CPT-5401), Hand Shower with Flow Control (VS-100-PC), Supply Ell with Wall Flange (VS-115), In-line Vacuum Breaker (VS-117), 30in Slide Bar (VS-123), Tub Spout (S-1554), and 69in Metal (SS) Hose. This combination does not include the Shower Valve.
- Page 2 INSTRUCTIONS See individual products for installation of the components and warranty information. ROUGH-IN SPEAKMAN ® 400 Anchor Mill Rd. New Castle, DE 19720 Phone: 800-537-2107 Fax: 800-977-2747 07/31/18 www.speakman.com 92C-SLV-5450-01...
-
Page 3: Maintenance
Cover your drain to prevent loss of parts. Be sure to wear eye protection while cutting pipe. MAINTENANCE Your new Speakman Product is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with a soft cloth. The use of harsh... - Page 4 Temporarily place Handle over splines and adjust the valve to the OFF position (as per the Valve Instructions). Then, align Handle vertically as shown below. Secure Handle to Spindle with the included #8 Screw. SPEAKMAN CPT-5001 / CPT-5401 REPAIR PARTS ® ITEM NO.
- Page 5 SPEAKMAN CPT-5001 ROUGH-IN DIAGRAM ® 1" 25mm HOLE FOR SHOWER ARM 6'-6" [2 METERS] TO FLOOR 7.50in 191mm 5-1/2" (140MM) DIA. 4.31in 1/2" NPT MALE HOLE FOR 110mm 1/2" SWEAT VALVE ACCESS CONNECTION 1/2" NPT MALE 1/2" NPT MALE 1/2" SWEAT 1/2"...
-
Page 6: Tools And Supplies
½ hour then rinse thoroughly. Brush off any remaining mineral deposits if necessary. DO NOT USE the vinegar/water treatment on any finish other than Chrome. For additional assistance or service please contact: SPEAKMAN ® Company 400 Anchor Mill Road New Castle, DE 19720... -
Page 7: Rough-In Dimensions
ROUGH IN DIMENSIONS 50 RUBBER TIPPED SPRAYS " 79.38 " 215.90 PAUSE BUTTON 1/2-14 NPSM MALE THREADED INLET 1" 25.40mm .714in 18.14mm " ACROSS 10.16mm FLATS FLOW CONTROL INSERTED INTO HANDLE " 30.18 VS-100-PC Max. Flow Rate: 2.5 gpm (9.5L/min) Min. -
Page 8: Specifications
Connect accessories to supply ell and firmly hand tighten. Turn water supply on and check for leaks. MAINTENANCE The gleaming finish of your SPEAKMAN VERSATILE® VS-115 supply ell can be cleaned by using mild soap and warm water. Dry immediately with a soft, clean cloth for best results. - Page 9 Note: Do not install VS-117 in concealed locations or where spillage under certain service conditions might cause water damage. Avoid continuous pressure applications (shut off valve downstream of the vacuum breaker). MAINTENANCE The gleaming finish of your SPEAKMAN VERSATILE® VS-117 vacuum breaker can be cleaned by using mild soap and warm water. Dry immediately with a soft, clean cloth for best results.
- Page 10 TOOLS AND SUPPLIES IMPORTANT MAINTENANCE • Do not over-tighten any connections or damage Your new Speakman Product is designed for years of VS-123 trouble-free performance. Keep it looking new by may occur. cleaning it periodically with a soft cloth. The use of harsh •...
- Page 11 SPEAKMAN SPEAKMAN VS-123 / VS-124 REPAIR PARTS ® ® VS-123 ROUGH-IN DIAGRAM " 45mm " 38mm 31 3 " 807mm " 116mm 30 7 " 30" 762mm 773mm " 18mm " 69mm DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE. SPEAKMAN ®...
- Page 12 Apply teflon tape or pipe dope to male threads and thread spout onto piping. Wrench tighten carefully. Check all connections for leaks. MAINTENANCE The gleaming finish of your SPEAKMAN tub spout can be cleaned by using mild soap and warm water. Dry immediately with a soft, clean cloth for best results.
