Related Manuals for Gold Medal Econo-16 2024
Summary of Contents for Gold Medal Econo-16 2024

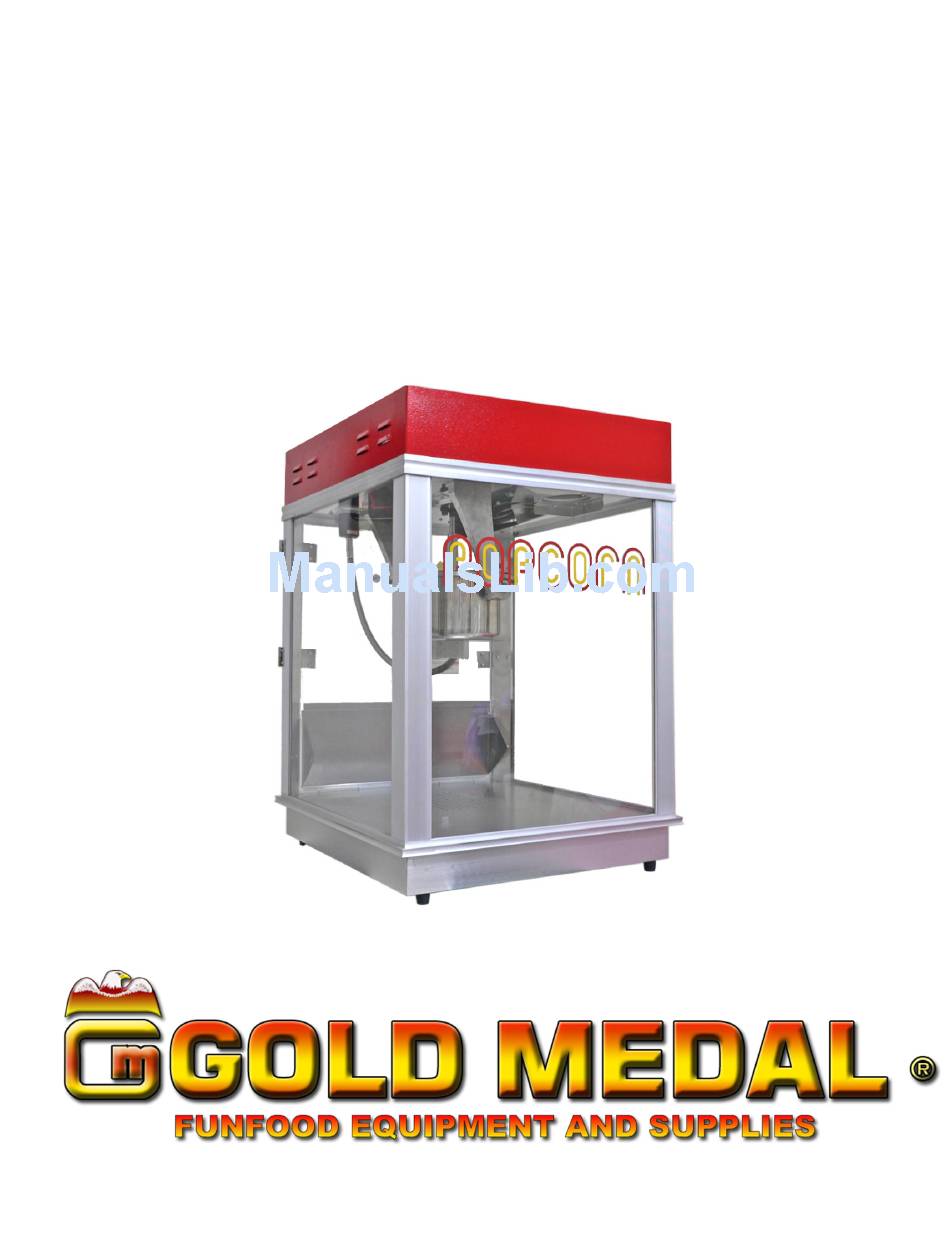

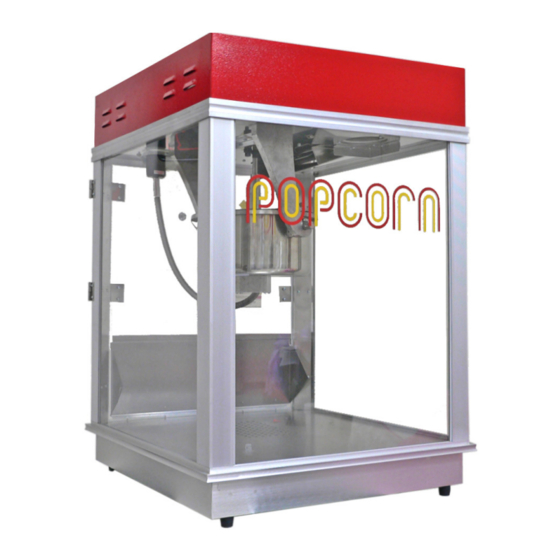

- Page 1 Part No. 67833 Econo-16 Models 2024, 2024ST 16oz. Popcorn Machine Instruction Manual Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215... - Page 3 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 4: Installation Instructions
Read and understand the operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. -
Page 5: Before You Plug In Machine
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614... -
Page 6: Popping Instructions
16 oz. Econo-16 OPERATING INSTRUCTIONS CONTROLS AND THEIR FUNCTIONS LIGHT SWITCH Operates cabinet lighting (and sign lighting for Model 2024ST). WARMER SWITCH Operates the heaters for the heated corn pan. KETTLE HEAT SWITCH (and Indicator Light) Operates the heating elements in the popping kettle. The Indicator Light will turn ON when the Kettle Heat Switch is ON. -
Page 7: Care And Cleaning
2. Every night, mix Gold Medal’s Heat’n Kleen solution (Item No. 2095), 2 tablespoons per gallon of water. It is not necessary to use the entire gallon at once; only use enough to fill the kettle 1/2 inch deep. - Page 8 Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of machine. 5. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended.
-
Page 9: Troubleshooting
16 oz. Econo-16 Troubleshooting Issue Possible Cause Solution Power to the Unit A. Power to the Unit A. Make sure the unit’s power cord is plugged Kettle Does Not Heat A. Power to the Kettle A. Make sure kettle lead-in cord is plugged in and twisted to lock into the kettle receptacle. - Page 10 16 oz. Econo-16 Agitator Set Collar Adjustment The following instructions describe how to properly adjust set collars on an agitator assembly with a fixed stir rod. Agitator Assembly with a FIXED Stir Rod Steps to Adjust Set Collars on Agitator with a Fixed Stir Rod Agitator assembly is adjusted while fastened to the kettle (image shown for general reference only).
-
Page 11: Maintenance Instructions
16 oz. Econo-16 MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. Keep cord and plug off the ground and away from moisture. -
Page 12: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... - Page 13 16 oz. Econo-16 16 oz. Kettle Assembly (55199) – Agitator Assembly View 55199 Overall Ket tle 55199 Overall Ket tle 55199 Overall Ket tle 55199 Overall Ket tle 55199E Ag. As s y. 55199E Ag. As s y. 55199E Ag. As s y. 55199E Ag.
- Page 14 16 oz. Econo-16 16 oz. Kettle Assembly (55199) – Kettle Bottom Assembly 55199 Ke ttle Elemen t 55199 Ke ttle Elemen t 55199 Ke ttle Elemen t 55199 Ke ttle Elemen t 55199EX Ke ttle Bo ttom As s y. 55199EX Ke ttle Bo ttom As s y.
- Page 15 16 oz. Econo-16 16 oz. Kettle Bottom Assembly (55199) – Parts List Part Number Item Part Description 55199 16OZ KETTLE BOTTOM ASSY (Complete Assy.) 55200 TRANSFER PLATE ASSY (beneath heat 67944 element) KETTLE GASKET 41598 KETTLE WELDMENT 67892 8-32 SERRATED FLANGE NUT ¼...
- Page 16 Rubber Foot p/n 41838 p/n 41282 20A Lead-In Cord *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., (not shown)* its service agent, or similarly qualified persons in order to avoid a hazard. p/n 47580...
- Page 17 16 oz. Econo-16 Door Hardware Kits – Individual Component Breakdown 1 1 1 1 3 3 3 3 4 4 4 4 2 2 2 2 2 2 2 2 3 3 3 3 5 5 5 5 6 6 6 6 7 7 7 7 8 8 8 8 Complete Left Hand Door...
- Page 18 16 oz. Econo-16 Dome Assembly (2024ST only) M odel 2452 image M odel 2452 image M odel 2452 image M odel 2452 image Front Sign View 1 1 1 1 2 2 2 2 Molded Plug seen here 3 3 3 3 4 4 4 4 5 5 5 5 (Molded Receptacle shown...
- Page 19 16 oz. Econo-16 Dome Interior - Motor Plate Assembly For LED Lighting and Power Supply, see Cabinet Interior View for parts breakdown. Blower Box Assembly p/n 41006 Exhaust Blower, 115V p/n 41015 Terminal Block, 8 Terminal p/n 47208 Kettle Drive Motor, 120V p/n 47038 For controls, see Cabinet Interior View.
-
Page 20: Electrical Schematic
16 oz. Econo-16 ELECTRICAL SCHEMATIC Models #2024, 2024ST... -
Page 21: Warranty
© 2017 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
