3.7 GAS PANEL INFRAGAS 109

3.8 GAS PANEL INFRAGAS 209/309

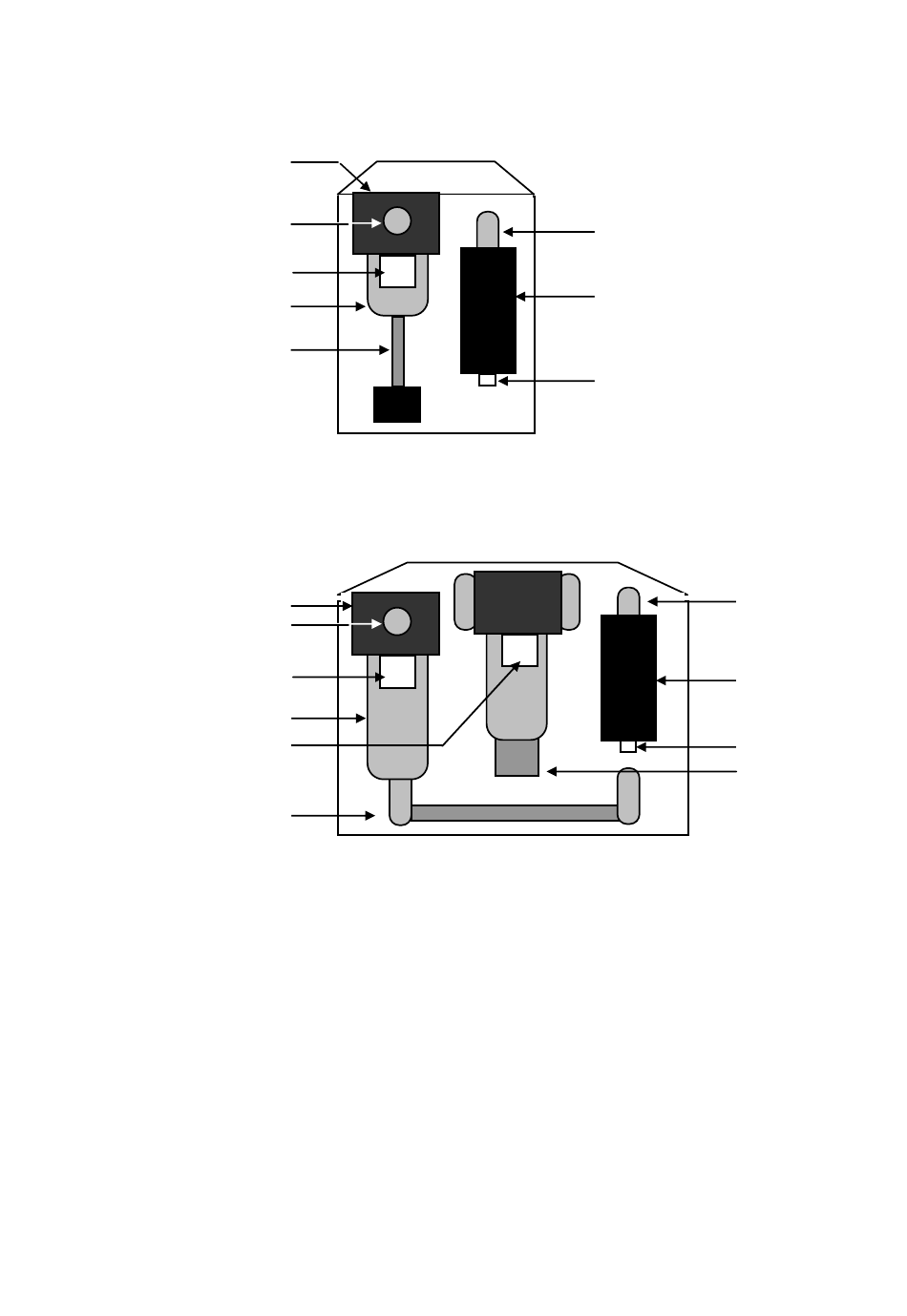

Main items on the gas panel of Infragas-109/209/309:
01 – Condense separator
02 – Exhaust Gas input.
03 – Filter cartridge (5 um)
04 – Cup of condense separator
05 – Condense pipe
06 – Filter cartridge 25 um (Coalescent 0,01 um for Infragas-309)
07 – Input condense sensor case
08 – Condense sensor case
09 – Condense discharge
10 – Valve for manual discharge
01
02
03
04
05
01
02
03
04
06
05
