Connector Panel Infragas 109; Connector Panel Infragas 209/309 - ASSEMBLAD Infragas-109 Operation And Maintenance Manual

Infragas-109 - Infragas-209 - Infragas-309 - Infragas-205 - Infragas-305

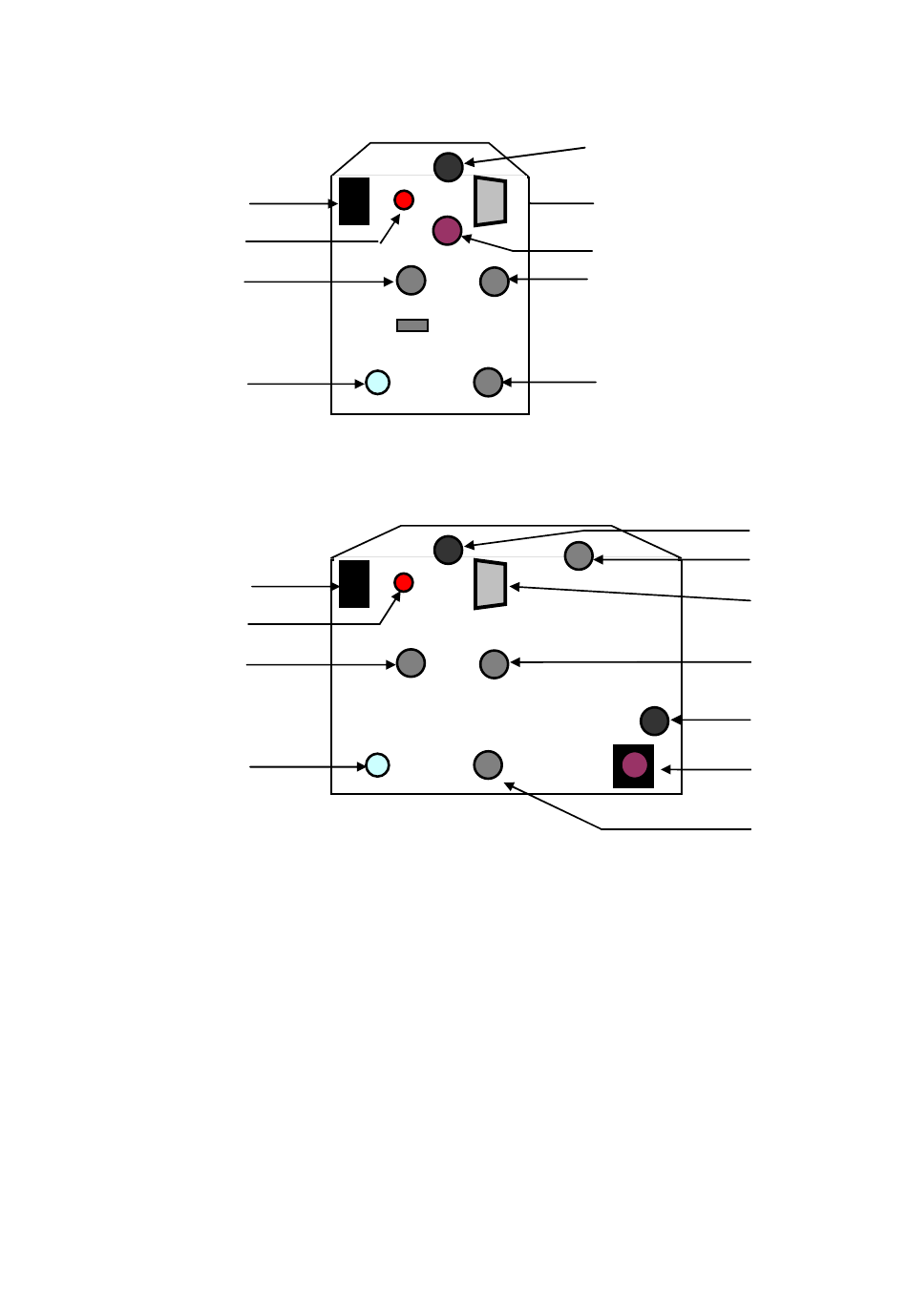

3.5 CONNECTOR PANEL INFRAGAS 109

01
02
03
05

3.6 CONNECTOR PANEL INFRAGAS 209/309

01
02
03
05
Main items on the connector panel of Infragas-109/209/309:
01 – Power on switch.
02 – Led
03 – External RPM Counter connection.
04 – Compressed air input
05 – Drainage.
06 – Fuse gas analyser
07 – RS-232 connector
08 – Power supply plug.
09 – Oil temperature probe connection.
10 – Exhaust Gas output.
11 – Connector battery charger.
12 – Fuse battery
ASSEMBLAD S.r.l. - 50013 Campi Bisenzio - Firenze - Italia
www.assemblad.com - info@assemblad.com
Operation and maintenance manual
06
07
08
09
10
06
04
07
09
12
11
10
12
