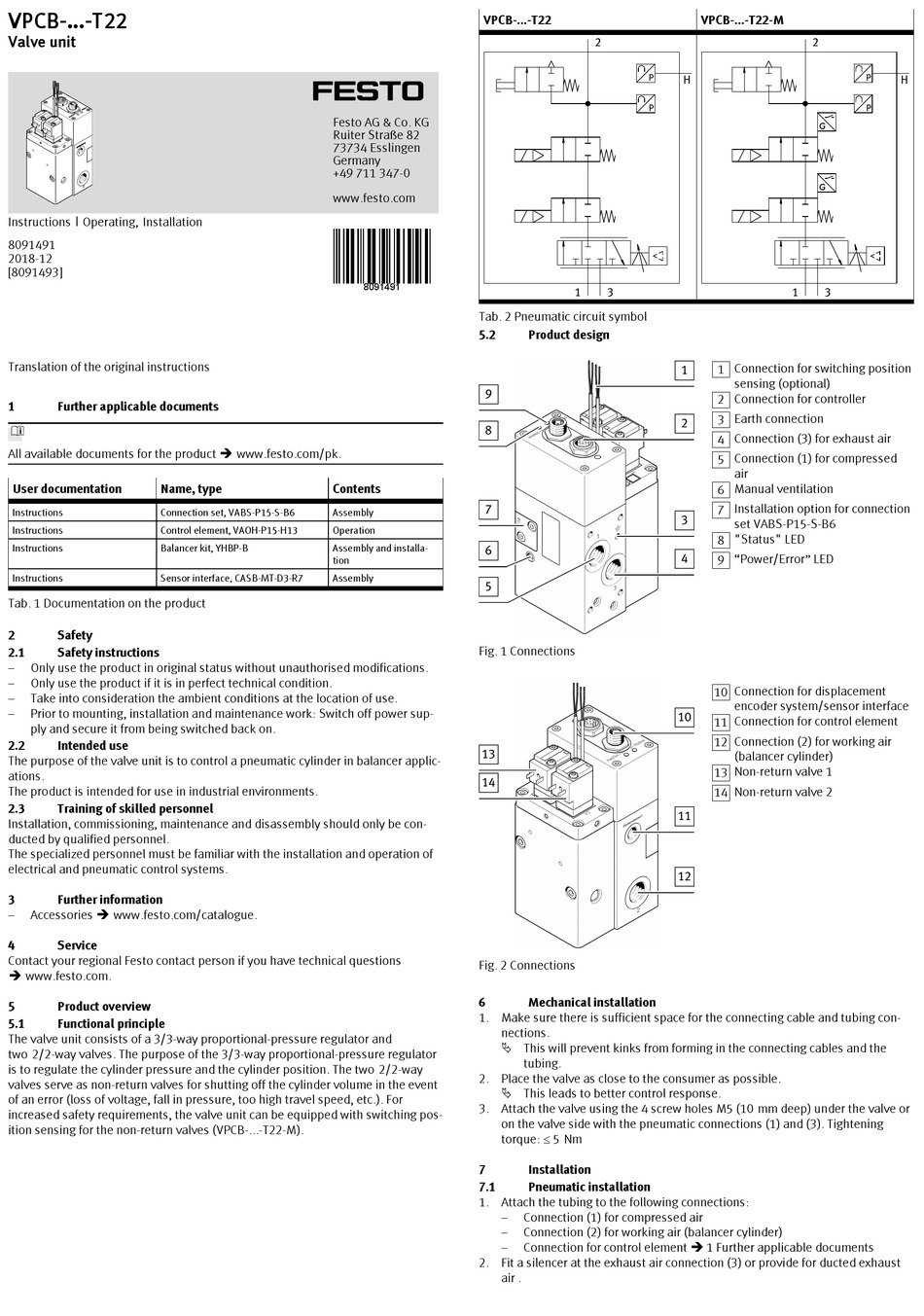

Festo VPCB T22Series Instructions, Operating, Installation

VPCB-...-T22
Valve unit
Instructions | Operating, Installation
8091491
2018-12
[8091493]
Translation of the original instructions
1

Further applicable documents

All available documents for the product è www.festo.com/pk.
User documentation Name, type
Instructions Connection set, VABS-P15-S-B6
Instructions Control element, VAOH-P15-H13
Instructions Balancer kit, YHBP-B
Instructions Sensor interface, CASB-MT-D3-R7
Tab. 1 Documentation on the product
2

Safety

2.1

Safety instructions

– Only use the product in original status without unauthorised modifications.
– Only use the product if it is in perfect technical condition.
– Take into consideration the ambient conditions at the location of use.
– Prior to mounting, installation and maintenance work: Switch off power sup-
ply and secure it from being switched back on.
2.2

Intended use

The purpose of the valve unit is to control a pneumatic cylinder in balancer applic-
ations.
The product is intended for use in industrial environments.
2.3

Training of skilled personnel

Installation, commissioning, maintenance and disassembly should only be con-
ducted by qualified personnel.
The specialized personnel must be familiar with the installation and operation of
electrical and pneumatic control systems.
3 Further information
– Accessories è www.festo.com/catalogue.
4

Service

Contact your regional Festo contact person if you have technical questions
è www.festo.com.
5

Product overview

5.1

Functional principle

The valve unit consists of a 3/3-way proportional-pressure regulator and
two 2/2-way valves. The purpose of the 3/3-way proportional-pressure regulator
is to regulate the cylinder pressure and the cylinder position. The two 2/2-way
valves serve as non-return valves for shutting off the cylinder volume in the event
of an error (loss of voltage, fall in pressure, too high travel speed, etc.). For
increased safety requirements, the valve unit can be equipped with switching pos-
ition sensing for the non-return valves (VPCB-...-T22-M).
VPCB-...-T22
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8091491
Tab. 2 Pneumatic circuit symbol
5.2
Contents
Assembly
Operation
Assembly and installa-
tion
Assembly
Fig. 1 Connections
Fig. 2 Connections
6
1. Make sure there is sufficient space for the connecting cable and tubing con-
nections.
Ä This will prevent kinks from forming in the connecting cables and the
2. Place the valve as close to the consumer as possible.
Ä This leads to better control response.
3. Attach the valve using the 4 screw holes M5 (10 mm deep) under the valve or
on the valve side with the pneumatic connections (1) and (3). Tightening
torque: £ 5 Nm
7
7.1
1. Attach the tubing to the following connections:
–
–
–
2. Fit a silencer at the exhaust air connection (3) or provide for ducted exhaust
air .

Product design

Mechanical installation

tubing.

Installation

Pneumatic installation

Connection (1) for compressed air
Connection (2) for working air (balancer cylinder)
Connection for control element è 1 Further applicable documents
VPCB-...-T22-M
1 Connection for switching position
sensing (optional)
2 Connection for controller
3 Earth connection
4 Connection (3) for exhaust air
5 Connection (1) for compressed
air
6 Manual ventilation
7 Installation option for connection
set VABS-P15-S-B6
8 "Status" LED
9 "Power/Error" LED
10 Connection for displacement
encoder system/sensor interface
11 Connection for control element
12 Connection (2) for working air
(balancer cylinder)
13 Non-return valve 1
14 Non-return valve 2
