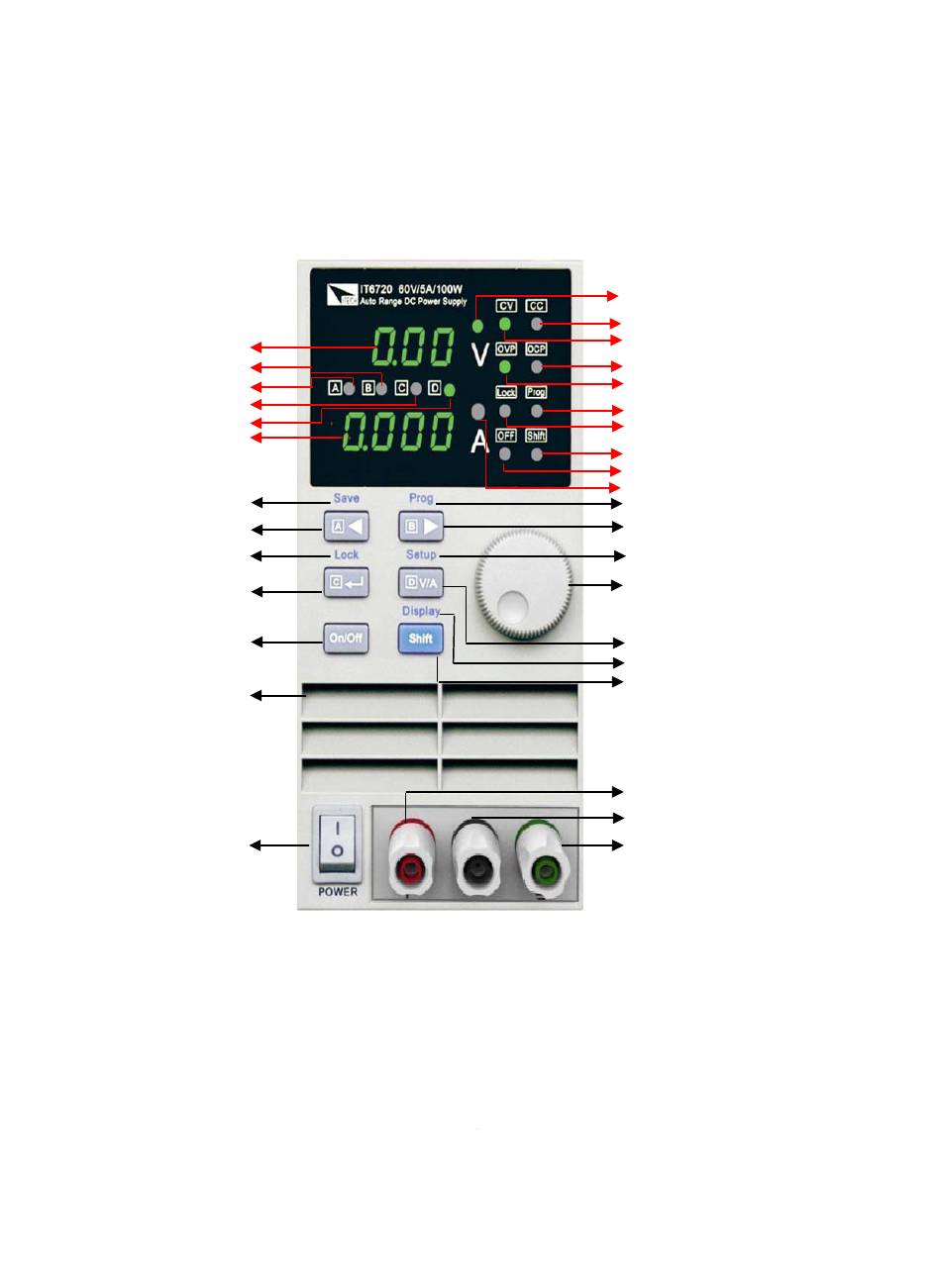

Panel Layout

Voltage Value
StepB + MemoryB
Step A + Memory A
StepC + MemoryC
StepD + MemoryD
Current Value
Memory save (Shift)
Left arrow + Memory A Button
Keyboard (Shift)
Enter + Memory C Button
Output ON/OFF Button
Air flow input
Main Power ON/OFF
Voltage setup Indicator
CC mode Indicator
CV mode Indicator
OCP Indicator
OVP Indicator
Memory mode Indicator
Keyboard Lock Indicator
Shift Indicator
Output OFF Indicator
Current setup Indicator
Memory mode(Shift)
Right arrow + Memory B Button
Function Setup (Shift)
Rotary Encoder
Voltage / Current Selector + Memory D Button
Setup Display (Shift)
Shift Button
Output +
–
Output
Ground
