Panel Layout - ITech IT6721 User Manual

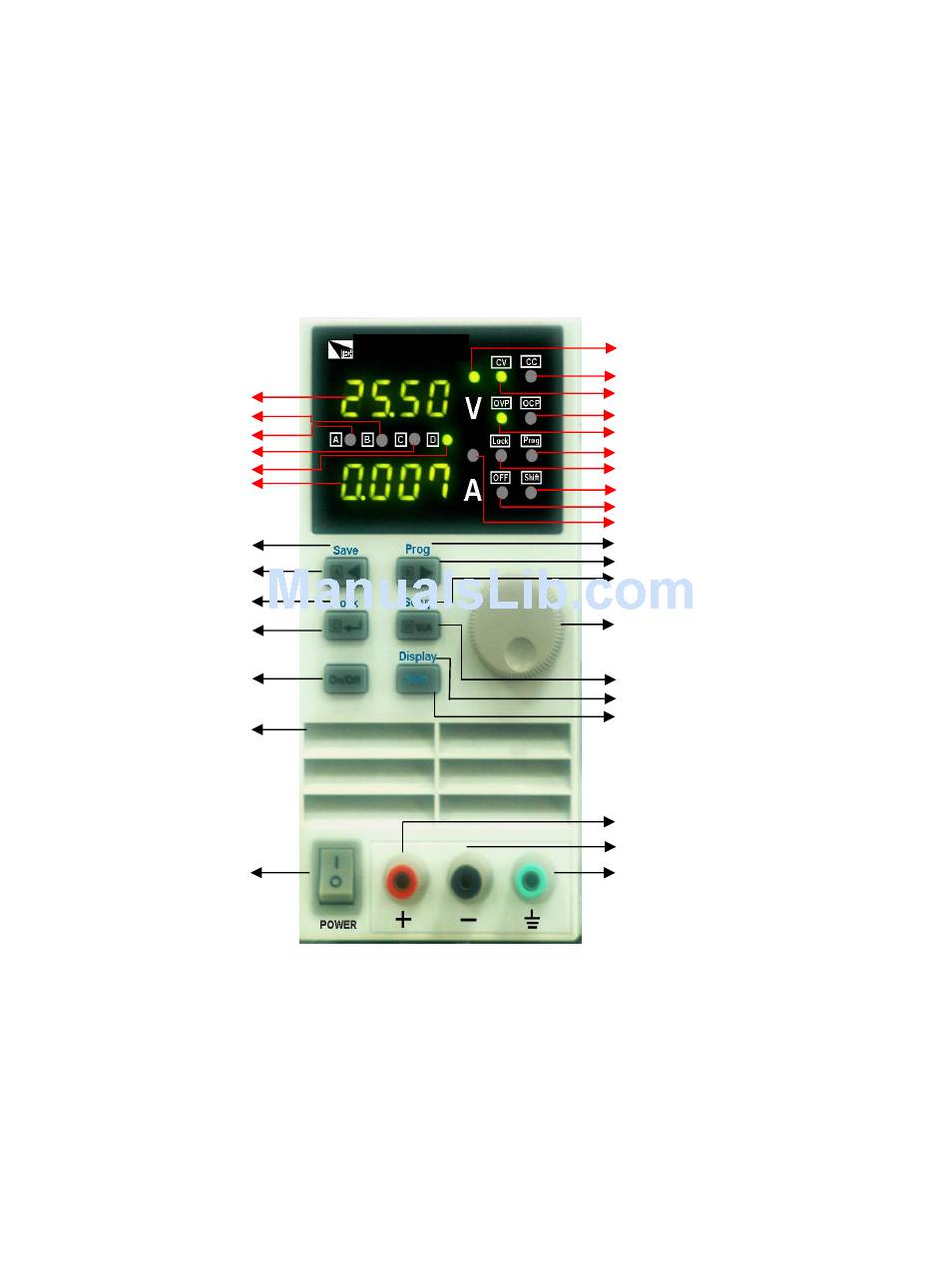

Panel Layout

Voltage Value
Step B + Memory B
Step A + Memory A
Step C + Memory C
Step D + Memory D
Current Value
Memory save (Shift)
Left arrow + Memory A Button
Keyboard (Shift)
Enter + Memory C Button
Output ON/OFF Button
Air flow input
Main Power ON/OFF
IT6721 60V/8A/180W
Auto Range DC Power Supply
Voltage setup Indicator
CC mode Indicator
CV mode Indicator
OCP Indicator
OVP Indicator
Memory mode Indicator
Keyboard Lock Indicator
Shift Indicator
Output OFF Indicator
Right arrow + Memory B Button
Function Setup (Shift)
Rotary Encoder
Voltage / Current Selector + Memory D Button
Setup Display (Shift)
Shift Button
Output +
–
Output
Ground
