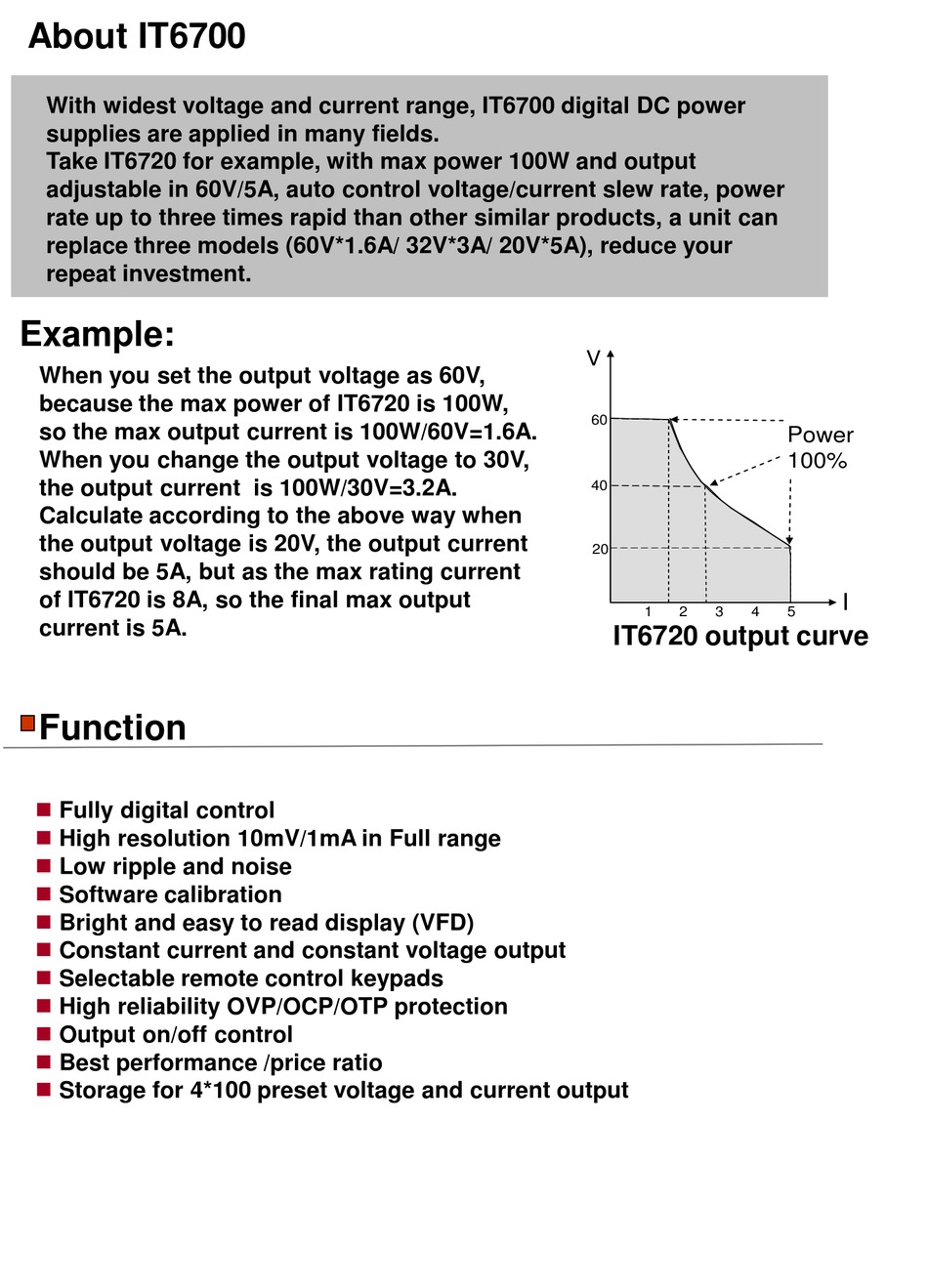

About IT6700
With widest voltage and current range, IT6700 digital DC power
supplies are applied in many fields.
Take IT6720 for example, with max power 100W and output
adjustable in 60V/5A, auto control voltage/current slew rate, power
rate up to three times rapid than other similar products, a unit can
replace three models (60V*1.6A/ 32V*3A/ 20V*5A), reduce your
repeat investment.
Example:
When you set the output voltage as 60V,
because the max power of IT6720 is 100W,
so the max output current is 100W/60V=1.6A.
When you change the output voltage to 30V,
the output current is 100W/30V=3.2A.
Calculate according to the above way when
the output voltage is 20V, the output current
should be 5A, but as the max rating current
of IT6720 is 8A, so the final max output
current is 5A.
Function

Fully digital control

High resolution 10mV/1mA in Full range

Low ripple and noise

Software calibration

Bright and easy to read display (VFD)

Constant current and constant voltage output

Selectable remote control keypads

High reliability OVP/OCP/OTP protection

Output on/off control

Best performance /price ratio

Storage for 4*100 preset voltage and current output
V
60
40
20
1 2 3 4
IT6720 output curve
Power
100%
I
5
