Operations & Maintenance Manual
For Commercial Use Only

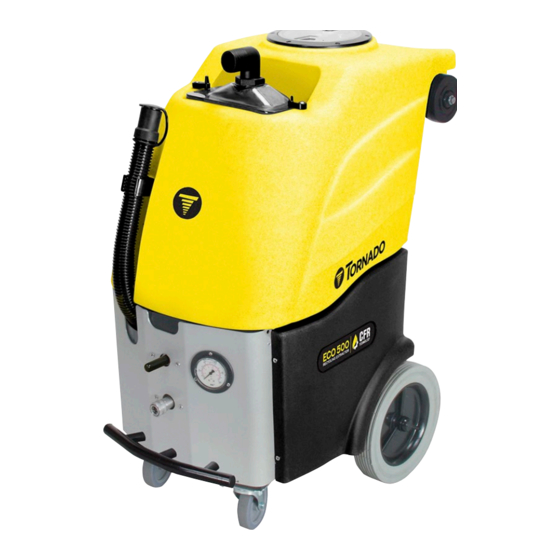

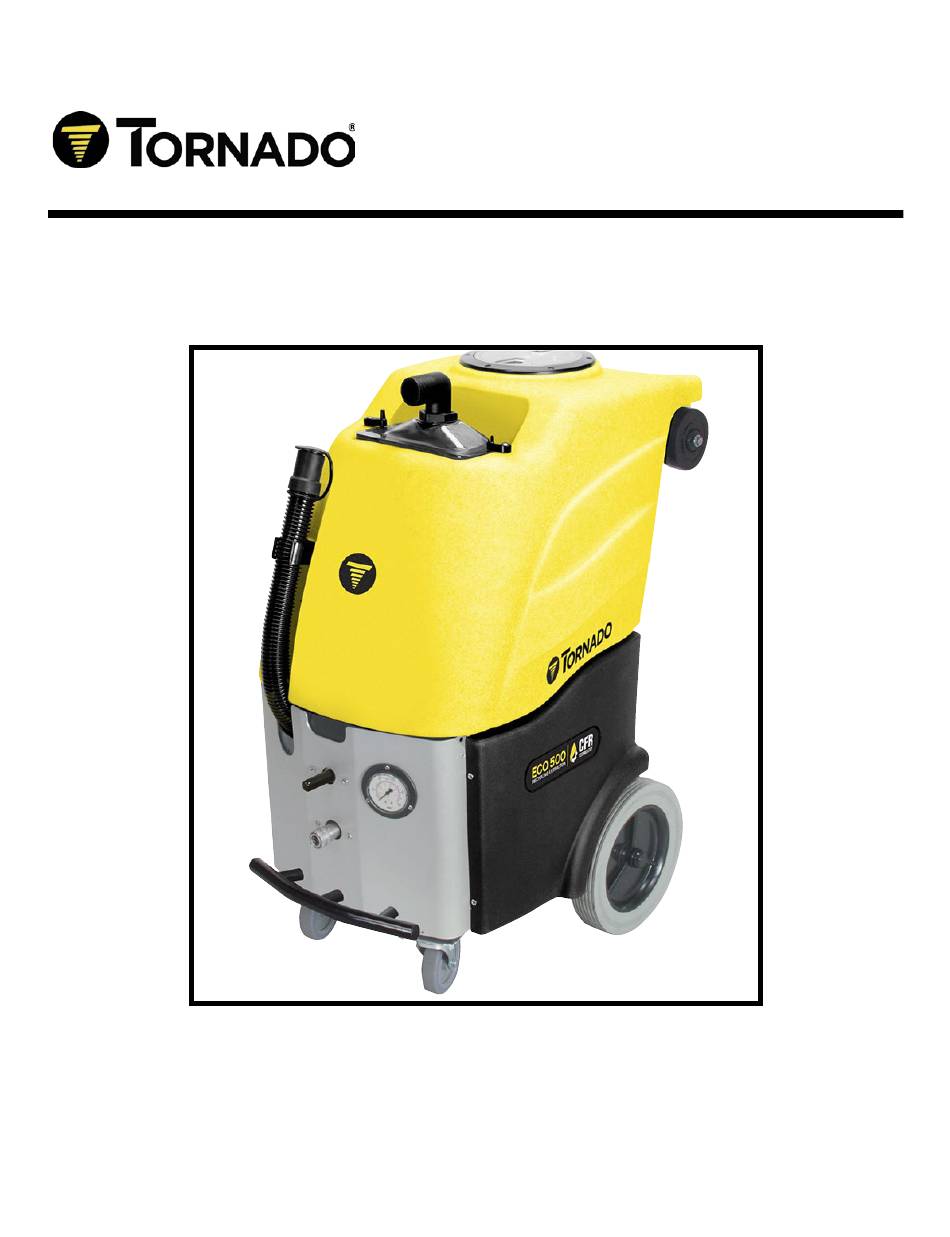

ECO 500AW / ECO500 PLUS AW RECYCLING EXTRACTOR
MODEL NO: 98825, 98827, 98829, 98831/ 98838, 98842, 98846, 98848
Form No. L8838AA 06/19 ©Tornado Industries, LLC. All rights reserved
1
SAVE THESE INSTRUCTIONS
Advertisement
Table of Contents
Related Manuals for Tornado ECO 500 AW Series
Summary of Contents for Tornado ECO 500 AW Series
- Page 1 WWW.TORNADOVAC.COM Operations & Maintenance Manual For Commercial Use Only ECO 500AW / ECO500 PLUS AW RECYCLING EXTRACTOR MODEL NO: 98825, 98827, 98829, 98831/ 98838, 98842, 98846, 98848 Form No. L8838AA 06/19 ©Tornado Industries, LLC. All rights reserved SAVE THESE INSTRUCTIONS...
- Page 2 For full details, contact your Authorized Tornado Distributor, Service Center, or the Tornado Technical Service Department. Tornado sales and service representatives are not authorized to waive or alter the terms of this warranty, or to increase the obligations of Tornado under the warranty. 10 Years*...
- Page 3 ECO 500AW Technical Specifications Model 98825 98827 98838 98842 Tank Size 10 Gallon 10 Gallon 10 Gallon 10 Gallon Heater Tools Power 220V/15A 220V/15A 120V/15A 120V/15A Power Cords (1) 25’ Detachable (1) 25’ Detachable (1) 25’ Detachable (2) 25’ Detachable Vacuum Motor Single 6.6 Dia AW Single 6.6 Dia AW...
- Page 4 ECO500 PLUS AW Technical Specifications Model 98829 98831 98846 98848 Tank Size 15 Gallon 15 Gallon 15 Gallon 15 Gallon Heater Tools Power 220V/15A 220V/15A 120V/15A 120V/15A Power Cords (2) 25’ Detachable (2) 25’ Detachable (2) 25’ Detachable (1) 25’ Detachable Vacuum Motor Single 6.6 Dia AW Single 6.6 Dia AW...
-
Page 5: Important Safety Instructions
All parts used in the manufacturing of this unit have passed rigid quality control standards prior to assembly. Please safeguard the original receipt / invoice. If you experience any problems with your unit during the warranty period, the original receipt / invoice will act as proof of purchase. Contact Tornado for any warranty inquiries. -
Page 6: Unpacking Instructions
To avoid fire, do not use with a flammable or combustible liquid to clean floor. IMPORTANT SAFETY INSTRUCTIONS The ECO 500 AW Series of recycling carpet extractors are intended for use only as described in this manual. Using the equipment in any manner not described in this manual can void the warranty. Use only manufacturer’s recommended accessories. -
Page 7: Setup Instructions
When using an electrical piece of equipment basic precautions should be followed, including the following: SET UP INSTRUCTIONS Filter Installation There are three filters in the ECO-500 AW Series system: gross debris filter, disposable inlet filter and in-tank filter. It is imperative to the efficient operation of the ECO-500 AW Series that the filters are installed properly. Disposable Inlet Filter Place the disposable filter in recovery inlet area. -
Page 8: Maintenance
7. Replace inlet filter and lid 8. Lock the rectangular lid into position 9. Attach hose assembly to machine, connect fluid hose to the quick-disconnect found on the front of machine and connect vacuum hose cuff to recovery inlet fitting. 10. - Page 9 1. Wands and Tools Rinse opening of tool with water to eliminate any debris. Wand only - open and clean in-line strainer. A. Disconnect the In-line Strainer by using the quick disconnect coupler. B. Remove the filter and rinse with water. C.
-
Page 10: Troubleshooting
TROUBLESHOOTING Possible Cause Solution Problem Defective Cord(s). Inspect cord(s). Replace if Vacuum or pump will not run defective. Tripped building circuit breaker. Reset circuitbreaker.* Circuit is overloaded. Move cord to a different wall outlet.* Trips building circuit breaker Check plug end and cord for damage. - Page 11 Possible Cause Solution Problem Check tool positioning Head must be completely “seated” on carpet to provide maximum water recovery. Obstruction in tool or hose. Check tool and hose for any obstructions. Lid cover not sealing. Check lid cover sealing properly - is basket filter gasket properly seated in tank? Is basket filter gasket in good shape with no...
- Page 12 This page intentionally left blank...
-
Page 13: Warranty Registration Form
Damage or defect arising from abuse, neglect or other misuse is excluded from this warranty. Other items may or may not apply based on your specific machine. If any defect occurs, and service is attempted by non-Authorized Tornado Service Centers, the warranty will be void.
