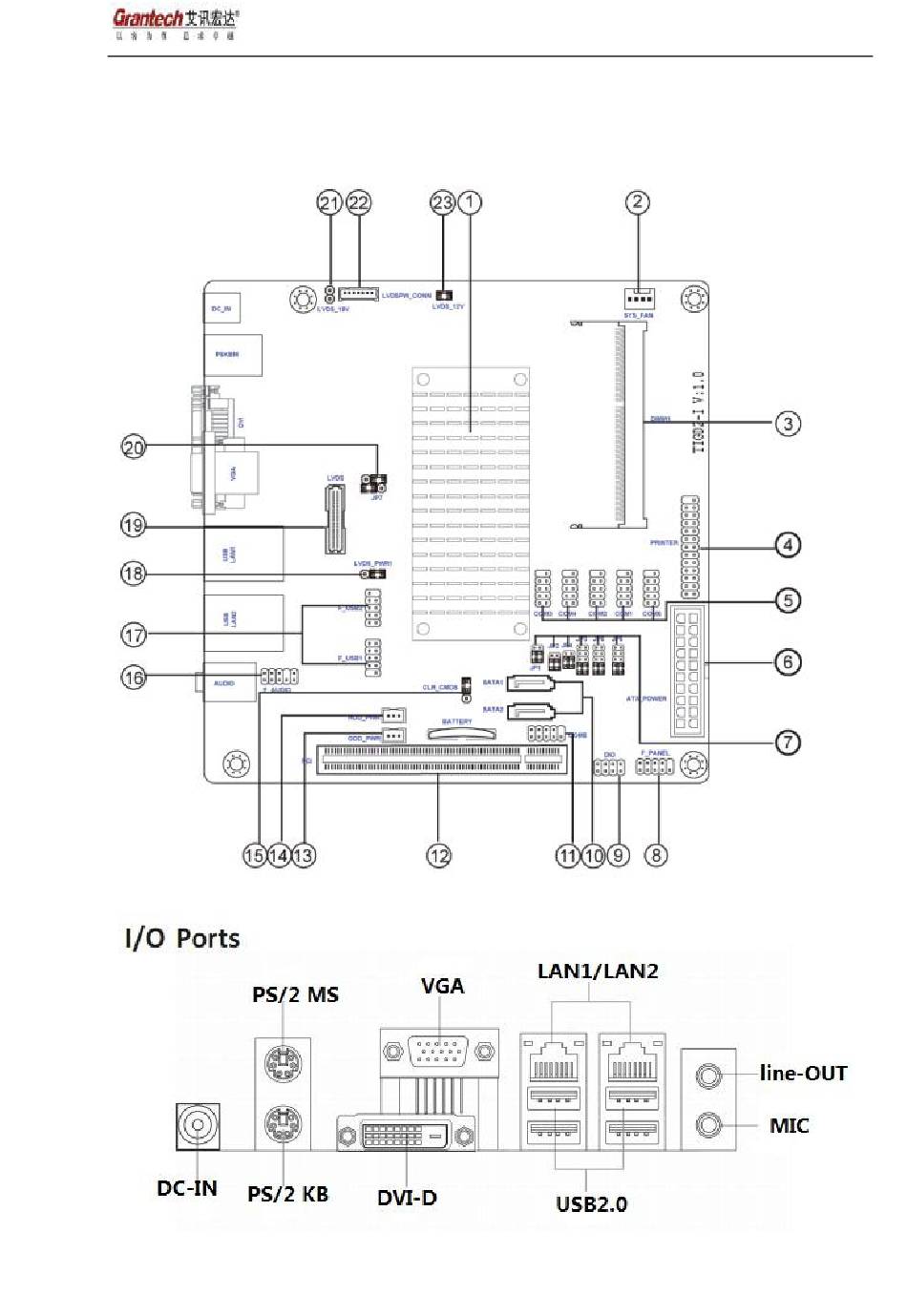

- Page 1 SYS76877VGGA-E Quick Installation Guide SYS76877VGGA-E 简易说明书 1、System Board Layout...
- Page 2 SYS76877VGGA-E Quick Installation Guide 2、Connectors: Label Connectors Onboard D2550 CPU 4-pin system cooling fan connector 204-pin DDR3 SDRAM SO-DIMM Printer header Onboard serial port headers 20-pin ATX power connector COM setting jumpers Front panel switch/LED header DIO header Serial ATA 3.0 Gb/s connectors...
- Page 3 SYS76877VGGA-E Quick Installation Guide 4、Front Panel Connector setting : Define Function Define Function HDD+ Power LED+ Power HDD Power HDD- Power LED- Reset- Power button+ Power Reset button button Reset+ Power button- Reserved 5、Jumper Setting (LVDS PWR1、CLR_CMOS): A、LVDS Power Jumper(LVDS PWR1): LVDS power Selection...
- Page 4 SYS76877VGGA-E Quick Installation Guide 、LVDS_19V & LVDS_12V: LVDS Power Jumper LVDS Power Jumper LVDS-12V LVDS-19V Packing list: SYS76877VGGA-E Mainboard *1pcs Utility CD for SYS76877VGGA-E *1pcs Installation Guide *1pcs USB2.0 cable *2 pcs SATA cable *2pcs; COM extension cables *5pcs...
