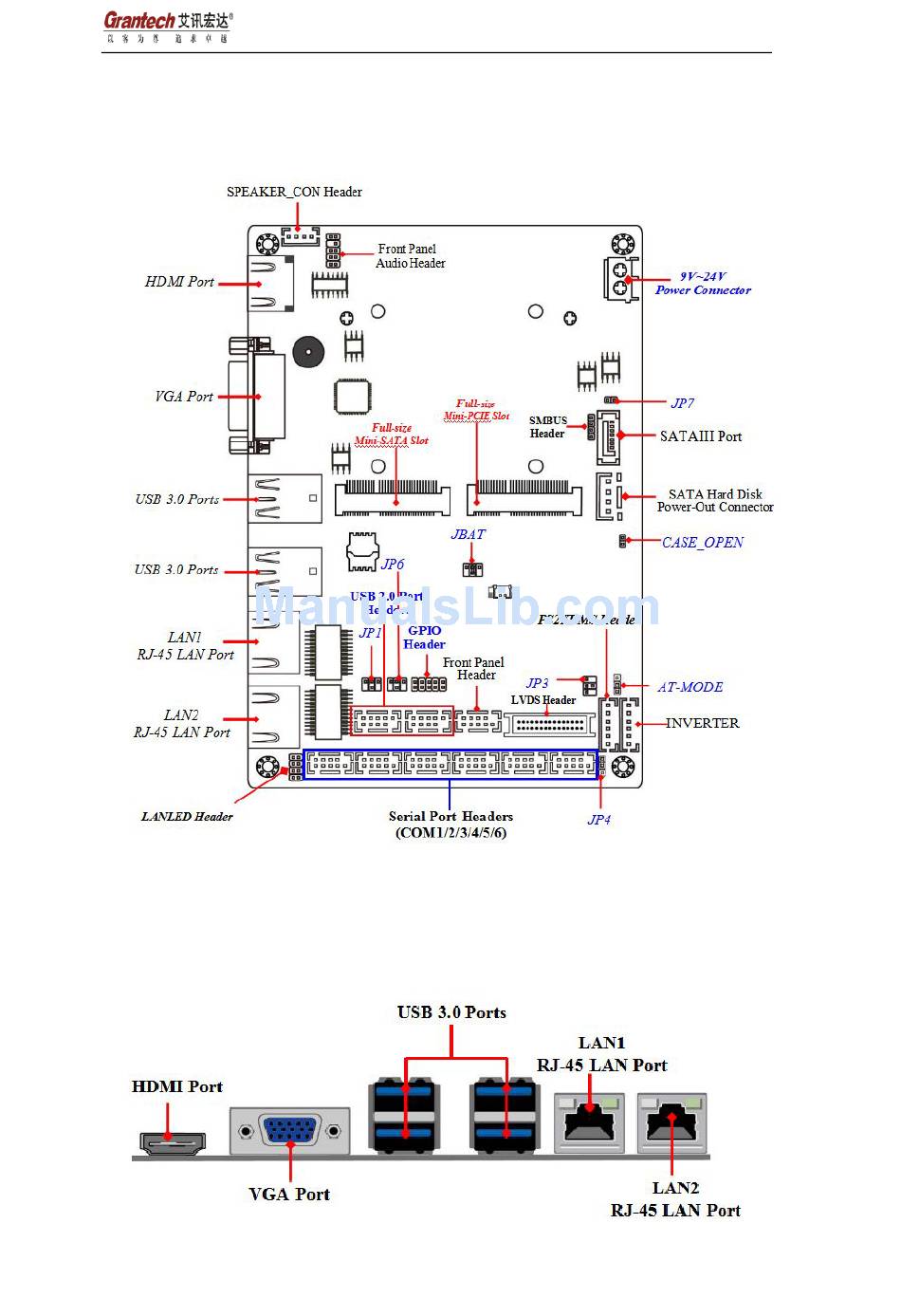

- Page 1 Quick Installation Guide SYS8F377VGGA-3OM SYS8F377VGGA-3OM 简易说明书 1、System Board Layout Rear IO Panel Diagram...
- Page 2 Quick Installation Guide SYS8F377VGGA-3OM 2、Connectors: Connector Name *DCIN1 9V~24V DC-in Power Jack Connector SATA1 SATAIII Port Connector SATAPW1 SATA Power out Connector HDMI HDMI Port Connector CRT VGA Port Connector USB1/USB2 USB 3.0 Port Connector X4 LAN1/LAN2 RJ-45 LAN Port Connector X2...
-
Page 3: Quick Installation Guide
Quick Installation Guide SYS8F377VGGA-3OM 4、Front Panel Connector setting : Define Function Define Function HDD LED+ Power LED+ Power HDD LED- HDD LED Power LED- JPANEL1 Reset GND Power Button Reset Power Button Button Reset Button Power GND 5、Jumper Setting: 1 、 AT_MODE (3-pin): AT Mode/ATX Mode Select AT_MODE →... - Page 4 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9 Checklist: SYS8F377VGGA-3OM Mainboard*1pcs Ø Utility CD for SYS8F377VGGA-3OM*1pcs Ø Installation Guide*1pcs Ø SATA Cable *1pcs; Ø COM cable and Print cable*6pcs Ø USB cable and Print cable*2pcs Ø...
