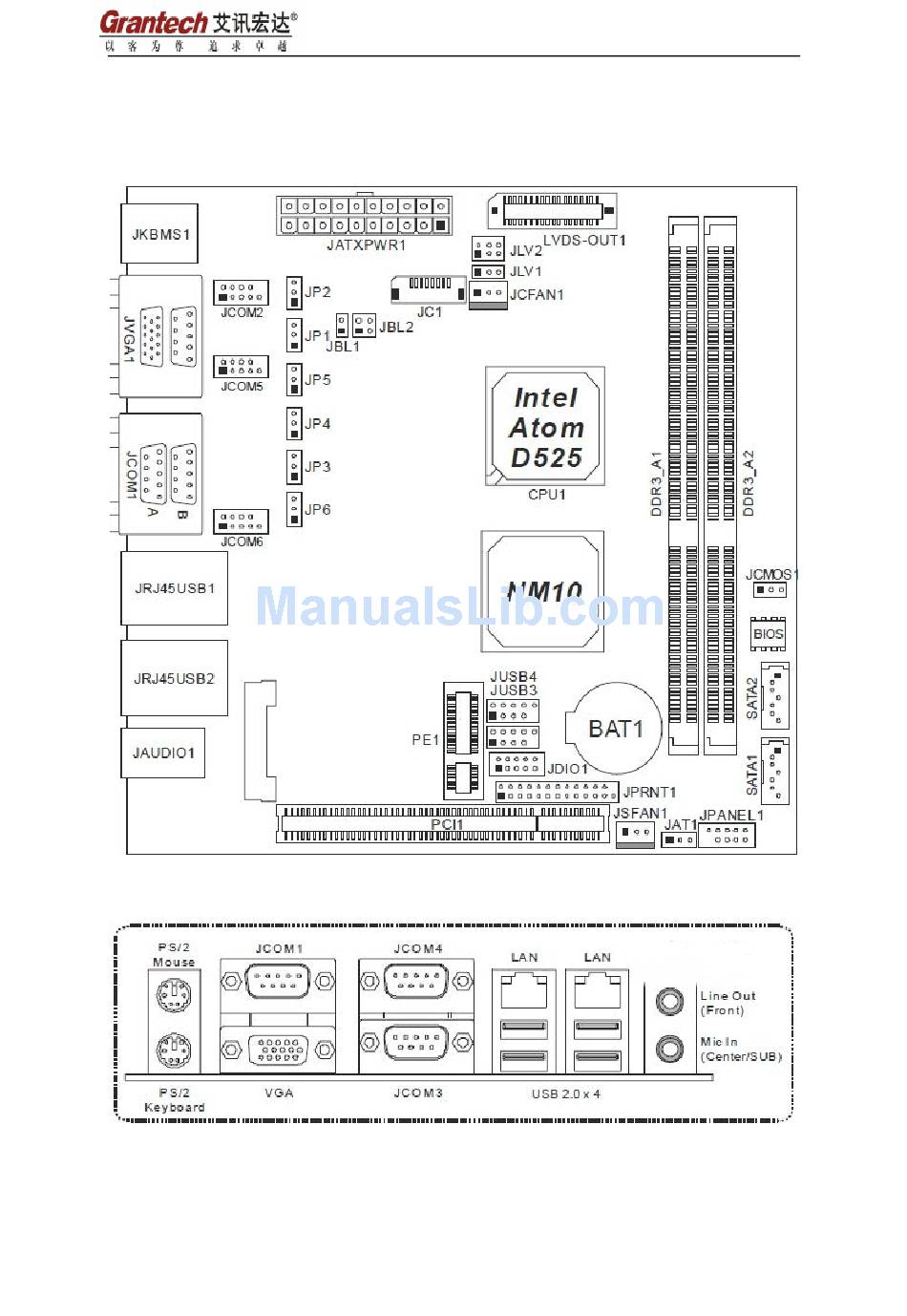

- Page 1 SYS76866VGGA-525-NM Installation Guide SYS76866VGGA-525-NM 简易说明书 1、System Board Layout...
- Page 2 SYS76866VGGA-525-NM Installation Guide 2、Connectors: Label Connectors LVDS_OUT1 LVDS Headers LCD Backlight Inverter Connector JUSB3~JUSB4 USB 2.0 Headers SATA1~SATA2 Serial ATA Header Mini PCI-E Slot JDIO1 Digital I/O Connector JSFAN1 System Fan Header JPRNT1 Printer port Connector JATXPWR1 Standard ATX power Input...
- Page 3 SYS76866VGGA-525-NM Installation Guide 4、Front Panel Connector setting : Define Function Define Function Power LED+ Power HD LED+ Power LED+ HDD LED HD LED- Power LED- JPANEL1 Reset GND Power Reset Power Buttion Button Reset Power GND 5、Jumper Setting (JCMOS1、JAT1):...
- Page 4 SYS76866VGGA-525-NM Installation Guide JLV2: LCD Power Select Header * This header allows you to select LCD Power. Checklist: SYS76866VGGA-525-NM Mainboard*1pcs Ø Utility CD for SYS76866VGGA-525-NM *1pcs Ø Installation Guide*1pcs Ø SATA Cable *1pcs; Ø COM cable and Print cable*3pcs Ø...
