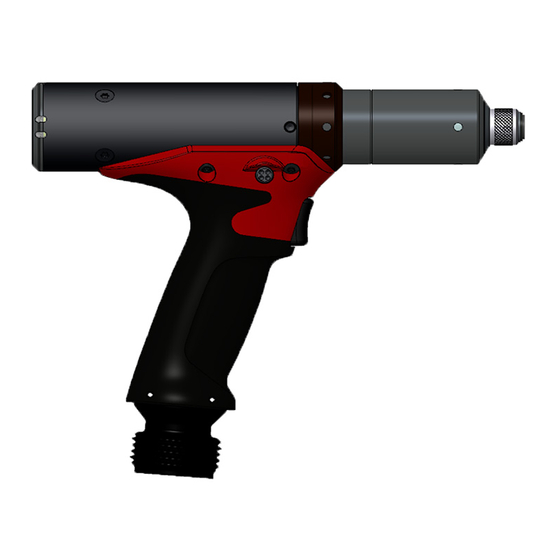

Electric Pistol Nutrunner
Product Instructions
Part number
6151661980
6151661990
6151662000
6151662010
6151662020
6151662030
WARNING
Printed Matter No. 6159928130_EN
Issue No.
02
Date
09/2020
Page
1 / 16
Advertisement
Table of Contents
Related Manuals for Desoutter ERP5
Summary of Contents for Desoutter ERP5
- Page 1 Printed Matter No. 6159928130_EN Issue No. Date 09/2020 Page 1 / 16 Electric Pistol Nutrunner Product Instructions Model Part number ERP5 6151661980 ERP20 6151661990 ERP30 6151662000 ERP40 6151662010 ERP5TC 6151662020 ERP20TC 6151662030 Download the latest version of this document at http://www.desouttertools.com/info/6159928130_EN...
-
Page 2: Table Of Contents
Table of Contents Product Information .......................... 3 General Information......................... 3 Safety Signal Words...................... 3 Warranty.......................... 3 Website .......................... 3 Information about spare parts .................... 3 Dimensions (mm) ......................... 3 CAD files .......................... 5 Overview ............................ 5 General overview ......................... 5 Product description ...................... 5 Technical data........................ 7 Accessories.......................... 8 Service Overview .......................... 10 Maintenance program ...................... 10 Spare parts......................... 10 Installation............................ 11 Installation Instructions........................ 11... -
Page 3: Product Information
• The product warranty relies on the correct use, maintenance, and repair of the tool and its component parts. • Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Desoutter or their Certified Service Partners during the warranty period is not covered by the warranty. - Page 4 Product Information Model ØC ERP5 ERP20 ERP30 ERP5TC / ERP20TC Model ØC ERP5TC ERP20TC 4 / 16 09/2020...
-
Page 5: Cad Files
For information about the dimensions of a product, see the Dimensional drawings archive: https://www.desouttertools.com/resource-centre Overview General overview ERP are electric pistol grip nutrunners powered by one of the following Desoutter controllers. - CVIL II - CVI3 Function - CVI3 Vision - TWINCVI3 They are hand-held by the operator. - Page 6 Product Information Output drive Trigger Reverse button Reporting LEDs ERP5TC / ERP20TC Reporting LEDs Top cable Swiveling multi-position bail ERP40 6 / 16 09/2020...
-
Page 7: Technical Data
Product Information Reaction bar Technical data Voltage (V) 3 ~ 115 V / 230 V Output drive Model Type ERP5 Hex. 1/4 F ERP20 Hex. 1/4 F ERP30 Sq. 3/8 ERP40 Sq. 3/8 ERP5TC Hex. 1/4 F ERP20TC Hex. 1/4 F... -
Page 8: Accessories
Product Information Model ERP5TC ERP20TC Weight (lb) Model ERP5 2.42 ERP20 2.65 ERP30 2.65 ERP40 4.63 ERP5TC 5.51 ERP20TC 5.73 Storage and use conditions Storage temperature -20 to +70 °C (-4 to +158 F) Operating temperature 0 to 45 °C (32 to 113 F) - Page 9 Product Information Protective cover for ERP20TC 6152111570 Protective cover for ERP40 6152111560 Suspension ring 6152110610 Required accessories CVI II tool adapter 6159360700 Tool cable Length (m) Length (ft) Part number 16.0 6159174920 32.8 6159174940 49.2 6159174950 Tool extension cable Length (m) Length (ft) Part number 16.0...
-
Page 10: Service Overview
Product Information Service Overview Maintenance program Please consult us on the Tool Care program that includes production support and maintenance solutions. Spare parts Exploded views and spare parts lists are available at https://www.desouttertools.com/resource-centre. The use of spare parts other than those originally supplied by the manufacturer may result in a drop in performance or in increased maintenance and level of vibration and in the full cancellation of the manufacturer’s liability. -
Page 11: Installation
Installation Installation Installation Instructions Connecting the tool to the controller Respect the minimum firmware releases given in chapter Technical data. Connection to CVI3 Function / CVI3 Vision / TWINCVI3 It is required to mount the CVI II tool adapter between the tool and the controller. Switch off the controller. -
Page 12: How To Install Optional Accessories
Installation Connect the cable to the tool. Connect the cable to the controller. How to install optional accessories Refer to the user manual dedicated to the accessory available at https://www.desouttertools.com/resource-centre. 12 / 16 09/2020... -
Page 13: Operation
Operation Operation Operating Instructions How to reverse the rotation Run reverse button Press this button. Red and green LEDs are blinking alternatively. Apply the tool to the fastener and press the trigger. Starting the tool WARNING Risk Of Injury As the reaction force increases in proportion to the tightening torque, there is a risk of severe bodily injury of the operator as a result of unexpected behavior of the tool. -
Page 14: Service
To upgrade tools, it is necessary to have: • an ACCESS KEY USB stick set with the right profile. This USB stick is provided by your CVIKEY manager. • CVIMONITOR software Contact your Desoutter representative to get more information and support. 14 / 16 09/2020... -
Page 15: Checking Before Putting Back Into Service
Service Checking before putting back into service Prior to putting the equipment back into service, check that its main settings have not been modified and that the safety devices work properly. Recommissionning Prior to putting the different parts of the system back into service, check that the main settings have been correctly set up and that the safety devices work properly. - Page 16 Original instructions Founded in 1914 and headquartered in France, Desoutter Industrial Tools is a global leader in electric and pneumatic assembly tools serving a wide range of assembly and manufacturing operations, including Aerospace, Automotive, Light and Heavy Vehicles, Off-Road, General Industry.
