Lincoln C Series Manual

GENERAL

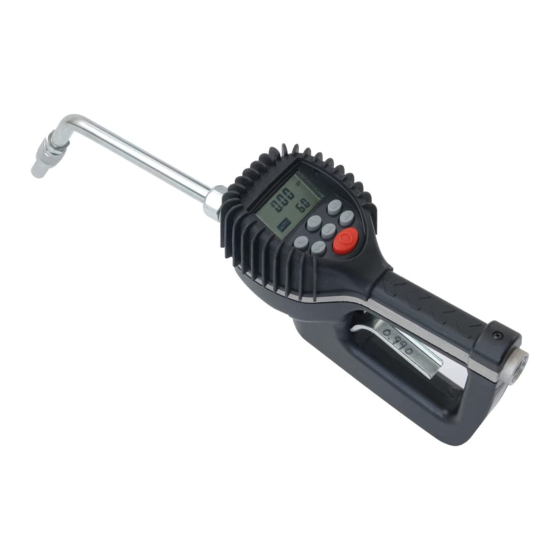

The Electronic Preset Meter (EPM) is designed specifically to
meter and dispense bulk fluids for servicing automobiles, trucks,
buses, construction equipment, and similar applications. The
meter is lightweight, rugged and has a comfortable grip. The
meter is designed specifically to dispense motor oils (S.A.E.
5-50), gear oils (S.A.E. 80-240), automatic transmission fluid,
and hydraulic fluid. The 905SF is designed specifically to
dispense anti-freeze (Ethylene Glycol), windshield wiper
fluid solution, and brake fluid.
A superior rugged, shock-resistant design for demanding
environments.
METEr iS noT for rESAlE MEASurEMEnT of fluid.
OPERATION
This unit can be programmed to dispense in quarts, liters, pints,
and gallons. You can program any batch size in a matter of
seconds. A 5-digit liquid crystal display, accurate to the second
decimal point, shows the exact amount of fluid dispensed.
The EPM meter uses 4 replaceable AA batteries and is
calibrated at the factory. The meter can also be recalibrated
easily in the field.
Electronic accuracy will help you save time and money. The
preset feature will allow users to perform other service tasks
while fluid is dispensed.
TYPICAL APPLICATIONS
• Fleet Maintenance Shops
• Industrial Assembly
• Quick Lube Facilities
• Dealerships
• Construction and Mining Equipment
• General Automotive Service Centers
• Specialty Service and Repair Shops
iMPorTAnT noTE: The automatic nozzle requires 60 PSi
to open and function properly. A pump exceeding 60 PSi is
required for adequate flow and proper operation. A pump ratio
of at least 3:1 is recommended.
SEPTEMBER 2008
(IOM-134-01 P/N 53400-134 Rev. 1)
To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com
ELECTRONIC LUBE METER
FEATURES
• Oval Gear Driven Meter
• Durable, Rugged Design
• Rubber Boot
• Large, Easy-to-Read LCD Display
• Ease of Operation
• CE Approved
• Totalization in Liters and Gallons
• Delivery in Liters, Quarts, Pints, Gallons
• Automatic Non-Drip Nozzle with manual shut-off feature
• Max. Totalizer Number: 99,999 Gallons or Liters
• Max. Dispense Volume: 99,999 Units
• Max. Preset Volume: 99.9 Units
• Calibration Factor for Different Fluids
• Changeable Units of Measure
• One Programmable Preset
• Total and Resettable Total
• Minimum 20,000 Cycles on Battery Life
• Low Battery Indicator
• Low Battery Safety Lock Out Feature
• Uses Standard AA Batteries
• In-Line Swivel Standard With All Meters
• Automatic Shut-Off at Preset Amount
• Emergency Electrical Shut-Off
• Precision Control Valve Operation
forM 403760
MODEL 905
Series "C"
Electronic Preset Meter
F22
Section - Page -
23F
