User Manual

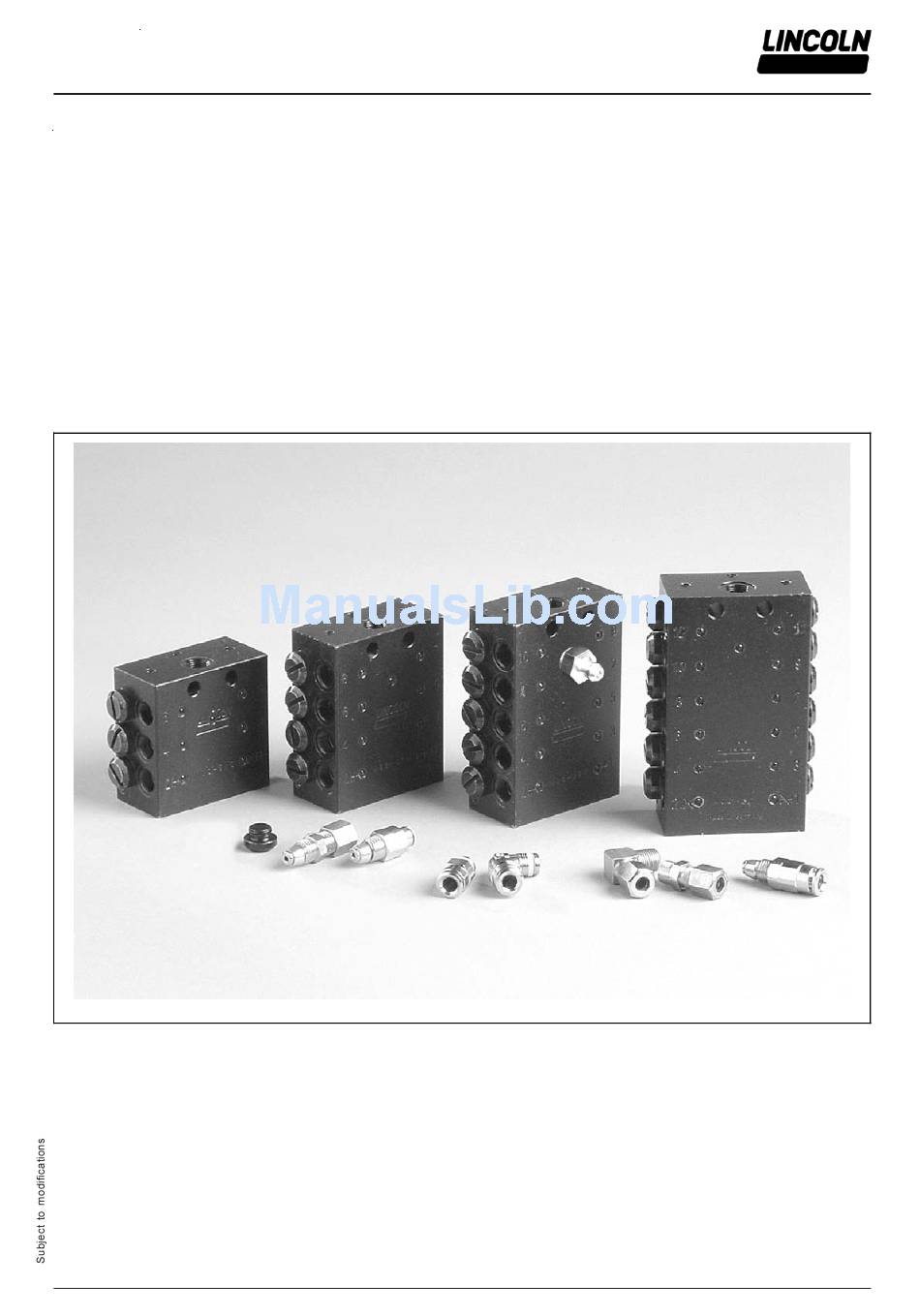

Operating Instructions
2.2EN-20001-J11

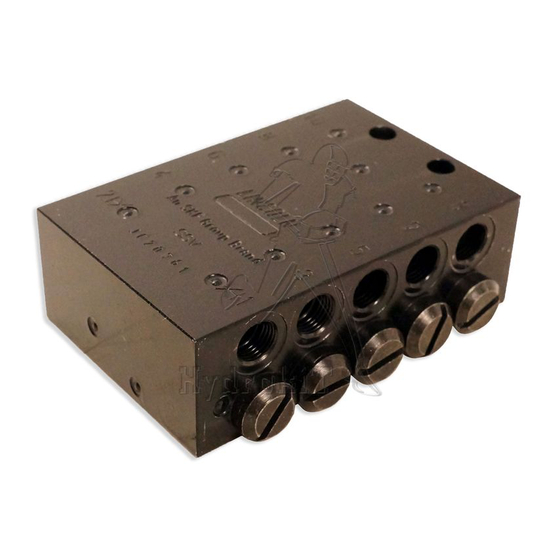

Quicklub - Progressive Metering Devices
for Grease and Oil
Model SSV, SSV-E and SSV M
B-SSV-000a11
SKF Lubrication Systems Germany GmbH ● Heinrich Hertz-Str. 2-8 D-69190 Walldorf Tel. +49(0) 6227 33-0 ● Fax: +49 (0) 6227 33-259

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSV-E and is the answer not in the manual?

Questions and answers

Related Manuals for Lincoln SSV-E

Summary of Contents for Lincoln SSV-E

  • Page 1 Operating Instructions 2.2EN-20001-J11 Quicklub - Progressive Metering Devices for Grease and Oil Model SSV, SSV-E and SSV M B-SSV-000a11 SKF Lubrication Systems Germany GmbH ● Heinrich Hertz-Str. 2-8 D-69190 Walldorf Tel. +49(0) 6227 33-0 ● Fax: +49 (0) 6227 33-259...
  • Page 2 User Manual Operating Instructions 2.2EN-20001-J11 Manufacturer: SKF Lubrication Systems Germany GmbH Heinrich Hertz-Str. 2-8 D-69190 Walldorf Tel. +49(0) 6227 33-0 Fax: +49 (0) 6227 33-259 E-Mail: Lubrication-germany@skf.com © SKF All rights reserved 2 f 2 SKF Lubrication Systems Germany GmbH ● Heinrich Hertz-Str. 2-8 D-69190 Walldorf Tel. +49(0) 6227 33-0 ● Fax: +49 (0) 6227 33-259...

  • Page 3: Table Of Contents

    Metering Devices SSV M 6 to 12 ......22 Features of a Progressive Metering Device ....9 Different of Features from SSV, SSV-E and SSV M ... 10 EC Declaration of incorporation ........23 Further Information can be found in the following manuals: Technical Description Quicklub - Pump 203 Technical Description for “Electronic Control Units”...

  • Page 4: Introduction

    User Manual Operating Instructions 2.2EN-20001-J11 Introduction Explanation of Symbols Used The following description standards are used in this manual: Furthermore, you will find the following text symbols in this manual: Safety Instructions Listing of applicable statements Structure of safety instructions: - Subpoint of applicable statements Pictogram 1.

  • Page 5: Safety Instructions

    2.2EN-20001-J11 Safety Instructions Appropriate Use Installation Use the SSV, SSV-E and SSV M lubricant metering devices Install the metering devices at a suitable location in ac- only for dispensing lubricants in centralized lubrication sys- cordance with the lubrication diagram. tems.

  • Page 6: Installation

    User Manual Operating Instructions 2.2EN-20001-J11 Installation Tube Fittings, Screw type Main- and secondary metering devices Inlet tube fittings, straight and 90° As inlet fitting use only tube fittings R1/8” thread. Check valves Install one complete check valve in each outlet bore that will be used, see fig.

  • Page 7: The Pressure Plastic Tube

    User Manual Operating Instructions 2.2EN-20001-J11 Installation, continuation Tube Fittings, Push-in Type, continuation Connection of High-pressure Hose and Pressure Plastic Tube High-pressure range (main metering device) IMPORTANT Only main lines (NW 4.1 x 2.3 mm) with threaded sleeve and hose stud may be connected to the inlet fitting and the check valves with reinforced collar.

  • Page 8: Pressure Plastic Tubes And High-Pressure Hoses

    User Manual Operating Instructions 2.2EN-20001-J11 Installation, continuation Pressure Plastic Tubes and High-pressure Hoses Pressure plastic tubes Ø6 x 1.5 mm NOTE Use the pressure plastic tubes only in the low-pressure Adhere to the pressures and bending radi- area, i.e. between secondary metering device and lubrica- uses mentioned in the chapter ”Technical tion point.

  • Page 9: Description

    - automatically (progressively) dispense the lubricant fed by the pump to the connected lubrication points; - model SSV or SSV-E have a lubricant output of 0.2 ccm per outlet and piston stroke; - model SSV M have a lubricant output of 0.07 ccm per outlet and piston stroke;...

  • Page 10: Different Of Features From Ssv, Ssv-E And Ssv M

    User Manual Operating Instructions 2.2EN-20001-J11 Description, continuation Progressive Metering Devices Model SSV, SSV-E and SSV M, continuation Different features of SSV, SSV-E and SSV M The SSV-E progressive metering device consists of an SSV progressive metering device and an emergency lu- brication fitting E (fig.
  • Page 11 User Manual Operating Instructions 2.2EN-20001-J11 Mode of Operation, continuation Applications, continuation 4025a95 Fig. 14 Multiline pump expanded by a progressive metering device Progressive metering devices can be used in two-line or single-line centralized lubrication systems in order to in- crease the number of outlets of multiline pumps or to sub- divide the single metering devices and measuring valves (Fig.

  • Page 12: Lubricant Distribution Within The Metering Device

    User Manual Operating Instructions 2.2EN-20001-J11 Mode of Operation, continuation Lubricant distribution inside the metering device The 5 following illustrations show the piston movements and When the lubricant supply is interrupted the depending lubricant distribution to the individual outlets. - The pistons come to a halt; - Lubricant is no longer dispensed to the lubrication point.
  • Page 13 User Manual Operating Instructions 2.2EN-20001-J11 Mode of Operation, continuation Lubricant Distribution within the Metering Device, continuation Phase 3 Once piston B has reached its left-hand final position, the junction channel to the right-hand end of piston C is opened. The lubricant, which flows from above (white arrow) moves piston C (black arrow) to the left, causing the lubri- cant quantity ahead of the left-hand end of piston C to be dispensed to outlet 5 (dashed arrow).

  • Page 14: Monitoring Of The Operation

    User Manual Operating Instructions 2.2EN-20001-J11 Mode of Operation, continuation Monitoring of the Operation System-dependent monitoring The main metering device B (fig. 22) and the secondary metering devices are connected by a high-pressure hose G. This feature automatically causes the linkage of the progressive system connected downstream of the pump.

  • Page 15: Electrical Monitoring (Microprocessor Control)

    User Manual Operating Instructions 2.2EN-20001-J11 Mode of Operation, continuation Monitoring of the Operation, continuation Electrical monitoring (microprocessor control) A piston detector (initiator), which has been installed on a metering device instead of a piston closure plug (M 11 x 1), monitors the pump operating time and brings it to a close after all the pistons of this metering device have dispensed their lubricant quantity.

  • Page 16: Determining The Lubricant Output By Combining Outlets

    User Manual Operating Instructions 2.2EN-20001-J11 Operation, continuation Determining the Lubricant Output by Combining Outlets Tube Fittings, Screw-Type 1012c96 Fig. 26 Install the outlet fittings and closure plugs in accordance with the dosage Inlet fitting Closure plug (M 11 x 1), piston Cutting ring (with chamfered) Delivery hole of the piston...

  • Page 17: Tube Fittings, Push-In-Type (Main Metering Device)

    User Manual Operating Instructions 2.2EN-20001-J11 Operation, continuation Determining the Lubricant Output by Combining Outlets, continuation Tube Fittings, Push-in-Type (main metering device) B-SSV-030b11 Fig. 27 Install the push in type outlet fittings and the closure plugs in accordance with the dosage Inlet fitting (optionally with protective Closure plug (M 10x1) with with hex.

  • Page 18: Tube Fittings, Push-In-Type (Secondary Metering Devices)

    User Manual Operating Instructions 2.2EN-20001-J11 Operation, continuation Determining the Lubricant Output by Combining Outlets, continuation Tube Fittings, Push-in Type (secondary metering devices) B-SSV-030a11 Fig. 28 Install the push in type outlets fittings and closure plugs in accordance with the dosage Inlet fitting Closure plug (M 10x1) with hex.

  • Page 19: Troubleshooting

    User Manual Operating Instructions 2.2EN-20001-J11 Troubleshooting Fault: Blockage in the downstream progressive system Cause: Correction: Bearing, lines or metering device clogged. Find out which is the cause of the blockage and rectify it in accordance with he following example: In the case of the metering devices SSV 6 to 22 and Allow pump to run (see ”To trigger an additional lubrication SSV6-E to 22-E the outlet boreholes 1 and/or 2 are closed.
  • Page 20 User Manual Operating Instructions 2.2EN-20001-J11 Troubleshooting, continuation Fault: Blockage in the downstream progressive system, continuation Cause: Correction: Metering device blocked Replace the metering device or clean it in accordance with the following procedure: Remove all tube fittings. Unscrew the piston closure plugs. If possible, try to eject the piston using a smooth drift (Ø...

  • Page 21: Technical Data

    Operating Instructions 2.2EN-20001-J11 Technical Data Metering Devices Lines Metering Device Model SSV and SSV-E High-pressure hose (∅ 4.1 x 2.3 mm) Lubricant output per outlet and per stroke ....0.2 ccm Min. bursting pressure Max. operating pressure ........... 350 bar (in connection with hose clamp, screwed) ....

  • Page 22: Dimensions

    Technical Data, continuation Dimensions Metering Devices Model SSV6 to 22 & SSV6-E to 22-E Metering Devices Model SSV M 6 to SSV M 12 2012a95 2012a99 Model SSV & SSV-E Dimensions A in Model SSV M Dimensions A in mm 48,5 71,5 22 f 2 SKF Lubrication Systems Germany GmbH ●...

  • Page 23: Ec Declaration Of Incorporation

    Metering Devices SSV / SSV-E / SSV M in der von uns gelieferten in the supplied version is dans la version dans laquelle en la versión suministrada es nella versione da noi fornita è...
