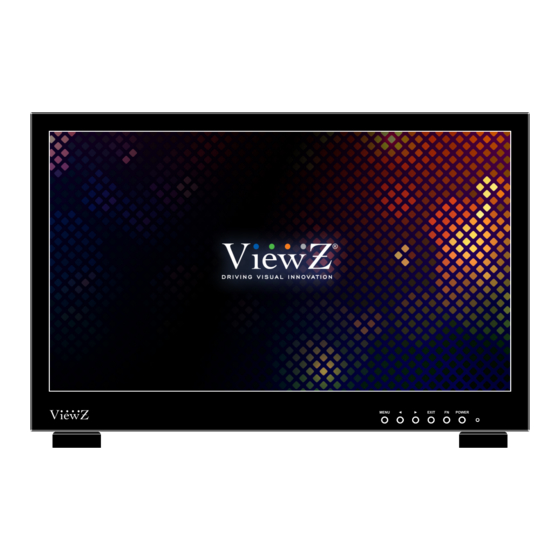

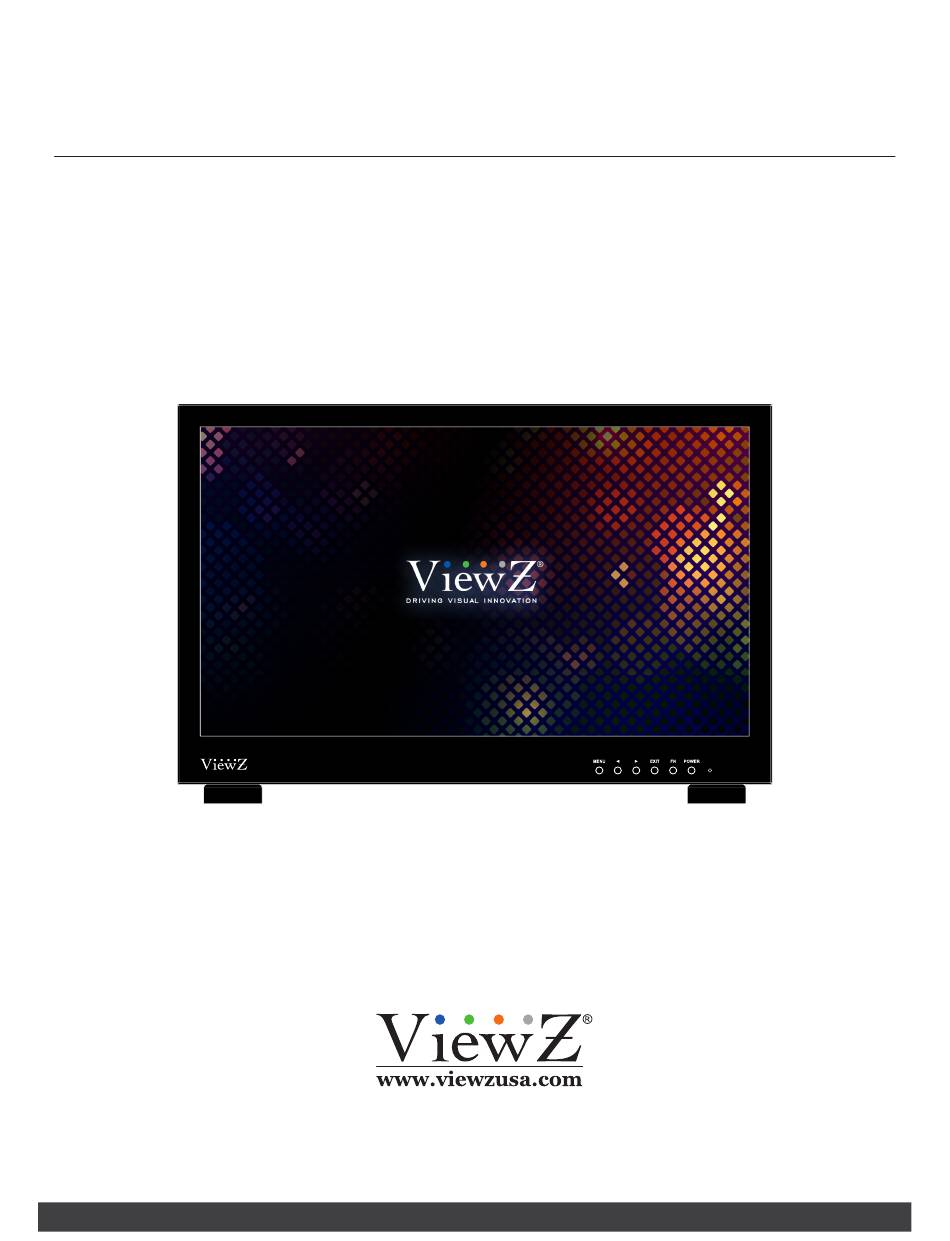

- Page 1 VZ-D2IP-L SERIES 21.5" IP OUTPUT MONITOR USER MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 2: Table Of Contents
............................... Installation ........................................1. Package ........................................2. Interface ........................................ Function .......................................... 1. Monitor Button Function ................................2. OSD Control and Function ................................Mounting Guide ......................................Specification ........................................Trouble Shooting ......................................Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 3: Safety Instruction
However, like all electronic equipment, the device should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 4: Installation
110V Power Cable (Qty 1) Base Stand (Qty 1set) DC 12V Power Supply (Qty 1) Mounting Option Your ViewZ monitor is compatible with ViewZ monitor mounts. For more information, please contact ViewZ USA at (888)-998-4399. Wall & Ceiling Mount • Part # WM05 VESA 50, 75, 100 •... -
Page 5: Interface
CONNECT EXTERNAL EQUIPMENTS Interface Input Ports 1. ETHERNET 10/100 (RJ 45) 4. USB (Upgrade) 2. IP RESET 5. DC 12V IN 3. HDMI IN User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 6: Function
Monitor power on / off 6. LED Indicator Change the value on selected menu Blue color: monitor on 3. Exit Red color : monitor off Exit the MENU or go back previous MENU selection Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 7 The menu of function setting will display on the screen. 2. Press button to choose sub-menu Then press 'MENU' button to confirm Press 'EXIT' button to return/exit 'MENU/SUB-MENU'. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 8: Osd Control And Function
1) In 'User' mode, users can define RGB Gain and Bias values for own purpose Scan FUNCTION VALUE Aspect Setup the display ratio Full, 1.85:1, 2.35:1, 4:3, 3:2 Display Scan Display the scan mode Fullscan, Overscan, Underscan Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 9 OFF, H/V, HV Back Light Set the back light level 0 ~ 100 FN Configuration Set up shortcut functions OFF, 1 ~ 6 Reset Reset the monitor settings to factory default OFF, ON User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 10: Mounting Guide
If user uses screws longer than M4 x L10 mm for VZ-215IPM, it may cause damage to the unit. Please use bolt of correct size and length as instructed. Mounting Safety ! At least two people are recommended to safely install the mount. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 11: Specification
32 ~ 122°F ( 0 ~ 50°C ) / -4 ~ 140°F ( -20 ~ 60°C ) General Operating Humidity 0 ~ 90% RH Case Type Black Metal Accessories Monitor x1, HDMI Cable x 1, Manual x1, 12V/4A Power Adapter x1 User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 12 H.265 & H.264 Audio coding AAC,G.711U, G.711A; sampling rates : 48000kHz Video Steaming type (CBR & VBR), Adjustable: 64kbps-12Mbps compression Steaming Size Main streaming: 1920*1080, 1280*960, 1280*960, 1280*800, 1280*720 Sub streaming: 1280*720 Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 13: Trouble Shooting
We recommend that you test with different input sources when you have trouble with At start the current input source. If symptom persists, follow the instructions below. After following the instructions below, please contact us at 1-888-99-VIEWZ. Only black-and-white Check whether the color saturation is properly setup. - Page 14 NOTE Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
