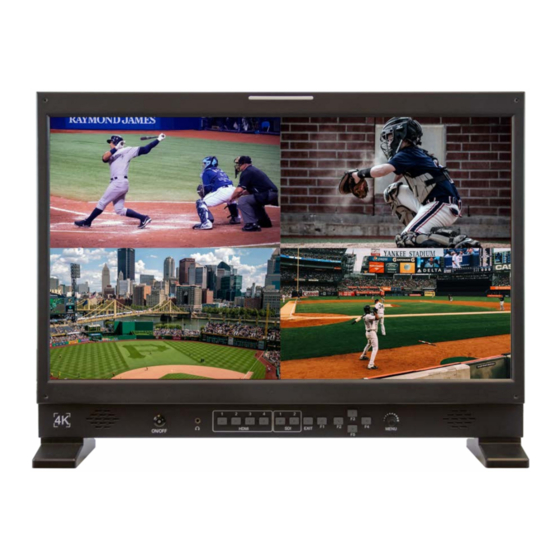

- Page 1 24inch 4K HOR Multi View Video Production Monitor VZ-238PM-HDR INSTALLATION/OWNERS MANUAL �����EJ� 3840x2160 2x SDI 4x HDMI PBP/PIP 2.2/2.4/2.6...
- Page 2 Welcome Thank you for choosing the ViewZ 4K HDR broadcast monitor which for the professional film make using. It adopts a 24-inch 3840x2160 4K LCD full-view display panel, which supports 4 channels of 4K HDMI video signal input and 1 channel HDMI output, 2x 3G-SDI video signals input and 1 x 3G-SDI output.
- Page 3 Signal connect HDMI 3G-SDI Input Output (5V/2A) Power Connect AC 100~220V V-mount battery plate Power Interface Power Interface Power Button • Connect the power cable > Find the Power Button in front > Press to turn on/off. ON/OFF...
- Page 4 Control Panel TALLY Exit Menu Power HDMI Button F1-F5 Headphone...
- Page 5 Control Panel V-mount battery plate HDMI Input SDI Output XLR DC SDI 2 Input Power Interface AC 100~220V SDI 1 Input Power Interface...
- Page 9 Shortcut Display ( Defau It, Custom) Mute (Default, Custom) Center Mark (Default, Custom) Make Ratio (Default, Custom) Safty Border (Default, Custom) Exit Audio Setting Volume 0-100 Mute Off, On Audio Source HDMI Exit System Setting Language Chinese, English OSD Background Black, Gray OSD Time Off, 5s, 1 Os, 15s...
