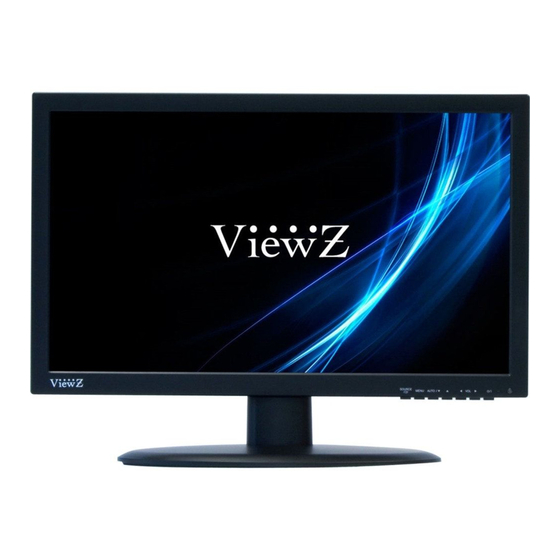

- Page 1 18.5/21.5-INCH WIDE TFT-LCD MONITOR USER MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
- Page 3 SAFETY INSTRUCTION ………………………………………………………….…… 2 ~ 3 CAUTIONS………………………………………………………………......FCC RF INTERFERENCE STATEMENT ……………………………....... INSTALLATION …………………………………………………………………………… CONNECTING WITH EXTERNAL EQUIPMENT……………………………………… CONTROLS AND FUNCTIONS ………………………………………………………… 8 ~ 16 MOUNTING GUIDE……………………………………………………………………….. D-SUB CONNECTOR PIN ASSIGNMENTS ………………………………………… POWER MANAGEMENT ……………………………………………………………… SPECIFICATIONS ……………………………………………………………………… TROUBLE SHOOTING GUIDE …………………………………………………..This Monitor was Manufactured by ISO 9001 Certified Factory...
-
Page 4: Important Safety Instruction
Important Safety Instruction 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 5 - The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus. 14 Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation. “WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.” “The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.”...
- Page 6 CAUTION The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à...
-
Page 7: Doc Compliance Notice
NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 8: Positioning Your Display
Before setting up the monitor, ensure that the power to the monitor and other attached devices are turned off. ※ Notice: Stand & screws are optional A. Connecting the stand 1. Place the monitor with its front facing downward on a soft cloth. 2. -
Page 9: Rear Connection
1. Rear Connection 1. PC STEROE IN. 2. VGA. 3. DVI. 4. HDMI. 5. DC 12V IN. - 7 -... - Page 10 2. Bottom Key Control 1. SOURCE/ Selects VGA, DVI and HDMI inputs. Selects an option in the OSD. 2. MENU Activates or exits the OSD. Moves previous menu or status in the OSD. 3, 4. AUTO/▼ & ▲ Moves another option in the OSD. The ▲...
-
Page 11: Osd Menu Description
OSD Menu Description All picture, sound settings and setup for the monitor can be adjusted in the OSD menu. To adjust the OSD screen: 1. Press the MENU button to enter the OSD menu. 2. Press the ▲/▼ buttons to select the desired option. The selected option is yellow color. 3. - Page 12 2. Positioning Option Function Value Exit Returns to previous menu. Horizontal Adjusts the horizontally picture position. 0 ~ 100. Vertical Adjusts the vertically picture position. 0 ~ 100. ※Unavailable in DVI & HDMI inputs. - 10 -...
-
Page 13: Image Settings
3. Image Settings Option Function Value Exit Returns to previous menu. Auto Adjust Auto geometry adjustment. Pixel Clock Adjusts the vertical noise of screen image. 0 ~ 100. Phase Adjusts the number of horizontal picture elements. 0 ~ 100. ※Unavailable in DVI & HDMI inputs. - 11 -... -
Page 14: Color Settings
4. Color Settings Option Function Value Color Adjust Adjusts red, green & blue colors of the picture. 0 ~ 100. sRGB Preset, 9300K Preset, Color Temp Adjusts color temperature of the picture. 6500K Preset, User Preset 1) User Preset Option Function Value Exit... -
Page 15: Osd Settings
5. OSD Settings Option Function Value Exit Returns to previous menu. Horizontal Position Moves the horizontally OSD position. 0 ~ 100. Vertical Position Moves the vertically OSD position. 0 ~ 100. OSD Hold Timer Adjusts the display time of OSD. 0 ~ 100. -
Page 16: Brightness / Contrast
6. Brightness / Contrast Option Function Value Exit Returns to previous menu. Brightness Adjusts brightness of the screen. 0 ~ 100. Contrast Adjusts intensity of the image. 0 ~ 100. - 14 -... - Page 17 7. Language Option Function Value Exit Returns to previous menu. Language Sets the language of OSD menu. English, Spanish, French, Deutsch & Korean. - 15 -...
- Page 18 8. Misc. Option Function Value Exit Returns to previous menu. Initialize Resets the monitor settings to the factory default. Aspect Ratio Converts the aspect ratio. 16:9 & 4:3 - 16 -...
- Page 19 Wall mounting (Optional) The LCD monitor is suitable for wall mounting by using the VESA 100 standard wall mount (not included in the delivery). M4x10 screws ※ Attention! You must use four M4x10 screws to assemble this monitor and the wall mount bracket. - 17 -...
- Page 20 ▶ Pin Assignments Pin 1 RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND GROUND SDA(for DDC) GROUND H-SYNC.(or H+V SYNC.) RED GROUND V-SYNC. GREEN GROUND SCL(for DDC) BLUE GROUND D-SUB ▶ Accessories 1. Power cord. 2. Power adaptor 3.
- Page 21 This monitor features a power management system to “power down” upon receipt of the VESA DPMS(The display power management signaling) from a VESA DPMS video card. The VESA DPMS-compliant video card performs this signaling system through not sending horizontal, vertical, or sync signal. This monitor enters an appropriate mode through identifying each of the three modes of the signaling system.
- Page 22 18.5” 21.5” 18.5˝ Diagonal AM-TFT(Active-Matrix) 21.5˝ Diagonal AM-TFT(Active-Matrix) Pixel pitch(㎛): 300(H) x 300(V) Pixel pitch(㎛): 248.25(H) x 248.25(V) Brightness: 250cd/㎡(Typical) LCD Type Contrast ratio: 1000:1(Typical) Viewing angle: 170°/160°(H/V) Response time: 5ms(Typ., on/off) Resolution (H x V) 1366X768 @60Hz 1920X1080 @60Hz Horizontal: 31~64kHz, Horizontal: 31~80kHz, Frequency...
-
Page 23: Weee Symbols
WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. - Page 24 MEMO...
- Page 25 MEMO...
- Page 26 MEMO...
- Page 28 P/N : L39ME0266 Rev.0...
