Grizzly T1248 Instructions Manual

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com

Introduction

These workbenches are designed to be used with
chairs or stools and double as a desk, making
them ideal for close-in detail work such as solder-
ing, assembly work, gunsmithing, etc. Featuring a
solid beechwood top, all-steel frame construction,
and re-inforced corners —rock-solid and built to
last a lifetime.

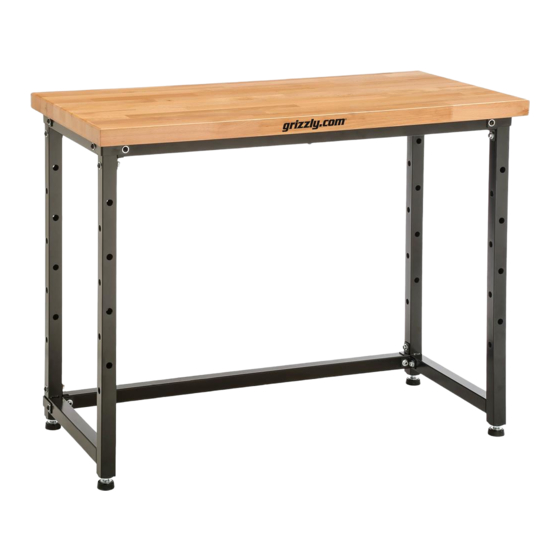

Figure 1. Model T1248 & T1249 Heavy-Duty
Beech Workbenches.

Specifications

• Workbench Top (Width x Length)
—T1248 ..........................................25" x 48"
—T1249 ..........................................25" x 72"
• Height ...................................................... 37"
• Maximum Weight Capacity ......... 2500+ lbs.
• Approximate Assembly Time .......30 Minutes
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
T1248
T1249
COPYRIGHT © NOVEMBER, 2017 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 11/17) #ES19299 PRINTED IN TAIWAN
MODEL T1248/T1249
HEAVY-DUTY
BEECH WORKBENCH
INSTRUCTIONS

Inventory

Description
A. Workbench Top .......................................... 1
B. End Frames ................................................ 2
C. Upper Supports .......................................... 2
D. Lower Support ............................................ 1
E. Rubber Feet M10-1.5 x 35 .......................... 4
F.
Hardware Bag ..............................................
—External Corner Braces .......................... 6
— Internal Corner Braces ............................ 6
—Button Hd Cap Screws M8-1.25 x 55 ... 22
— Flat Washers 8mm ................................ 40
— Lock Nuts M8-1.25 ................................ 18
—Wrench 13/14mm Open-Ends ................. 1
—Hex Wrench 5mm ................................... 1
G. Steel Bars ⁄ " x 11
5
8
A
C
D
Figure 2. Inventory.
⁄ " ................................. 8
3
4
B
E
F
G
