For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T1238 Mobile Tool Table is designed
to provide a stable, mobile platform for mounting
machinery and equipment.

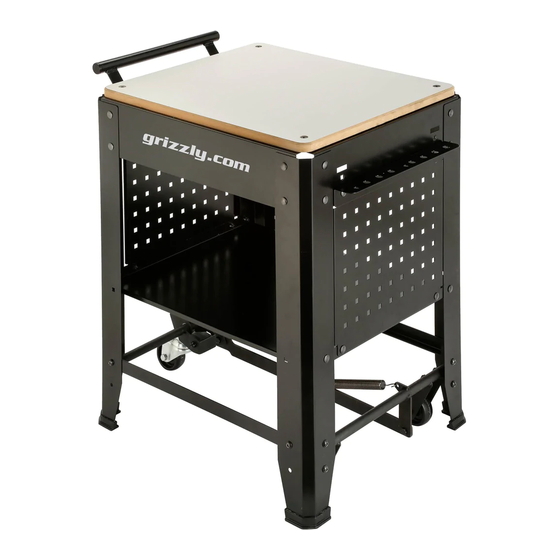

Figure 1. Model T1238 Mobile Tool Table.
Specifications
•
Footprint (Length x Width) ..............20" x 23"
•
Height ...................................................... 30"
•
Maximum Weight Capacity ............. 300 lbs.
•
Approximate Assembly Time .......30 Minutes
Needed for Assembly
•
Open-End Wrenches or Sockets 13mm ..... 2
•
Hex Wrench 5mm ....................................... 1
Inventory
Description
A. Table Top ................................................... 1
B. Shelf ........................................................... 1
C. Side Panels ................................................ 2
D. Legs w/Foot Pads ....................................... 4
E. Tool Holder ................................................. 1
F.
Upper Braces (Left & Right) ....................... 2
G. Lower Braces ............................................. 2
COPYRIGHT © FEBRUARY, 2018 BY GRIZZLY INDUSTRIAL, INC. REVISED JULY, 2018 (TK)
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
#TKAB19421 PRINTED IN CHINA
MODEL T1238
MOBILE TOOL TABLE
For Models Mfd. Since 10/17
H. Linkage Bar/Pedal ...................................... 1
I.
Caster ......................................................... 1
J.
Upper Braces (Front & Back) ..................... 2
K. Pedal Assembly .......................................... 1
L. Wheel Assembly ......................................... 1
M. Handle ........................................................ 1
N. Hardware Bag (Not Shown)
—Carriage Bolts M8-1.25 x 12 ................. 30
—Button Hd Cap Screws M8-1.25 x 16 ... 12
—Flat Head Screws M8-1.25 x 25 ............. 4
—Hex Bolts M8-1.25 x 20 .......................... 2
—Hex Bolt M8-1.25 x 70 ............................ 1
—Flange Nuts M8-1.25 ............................ 38
—Lock Nuts M8-1.25 .................................. 3
—Extension Spring .................................... 1
Qty
J
INSTRUCTIONS
B
A
E
F
D
G
K
L

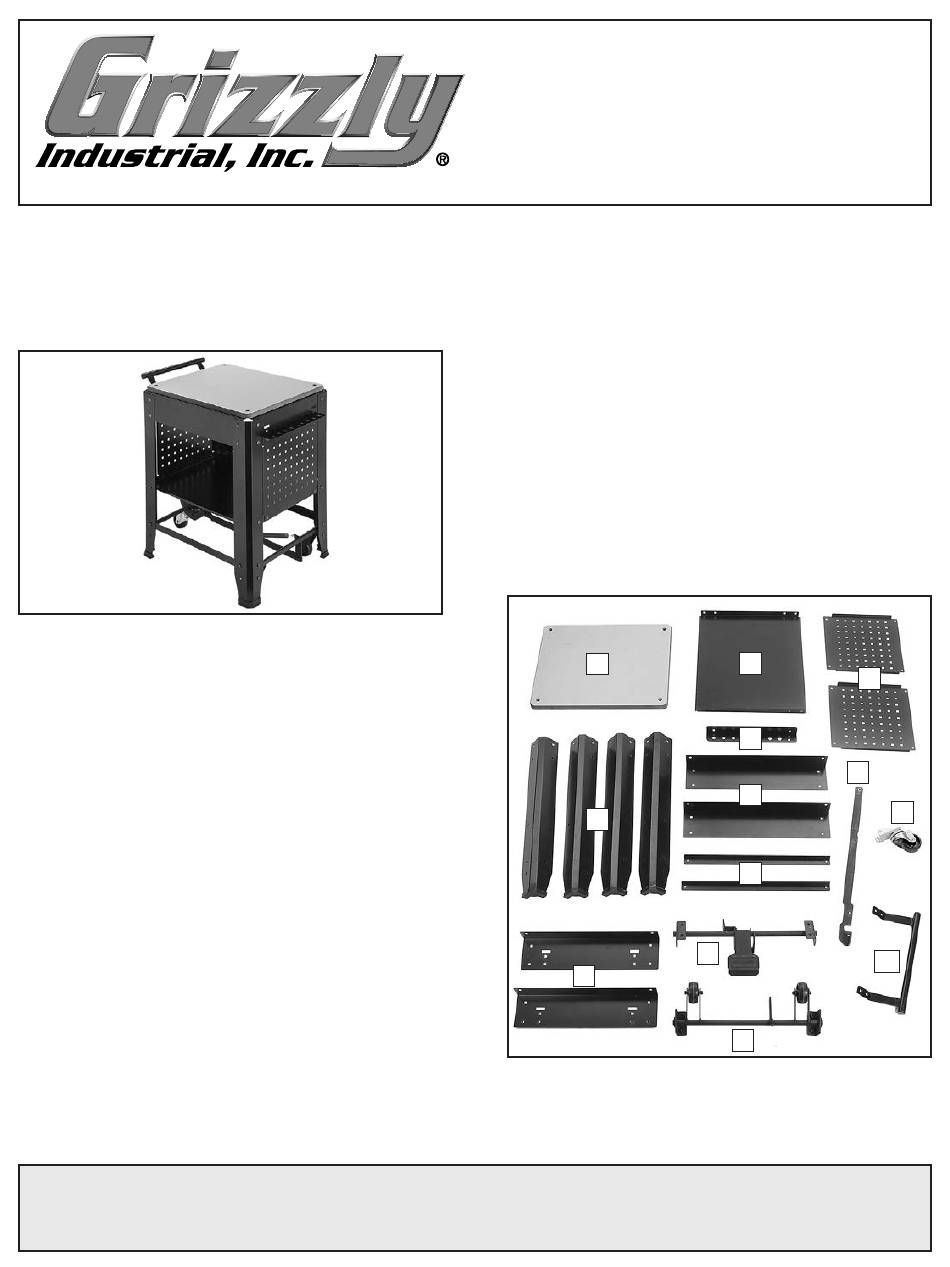

Figure 2. Inventory.
C
H
I
M
V1.07.18
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Grizzly T1238
Summary of Contents for Grizzly T1238
- Page 1 MODEL T1238 MOBILE TOOL TABLE INSTRUCTIONS For Models Mfd. Since 10/17 For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com Introduction H. Linkage Bar/Pedal ........1 Caster ............1 The Model T1238 Mobile Tool Table is designed Upper Braces (Front &...
- Page 2 Long linkage should point outward (see Figure 4) with wheels in the down position. Caster Wheel Down Figure 6. Caster wheel attached to pedal assembly. Linkage Pointing Outward Figure 4. Wheel assembly orientation. T1238 Tool Table (Mfd. Since 10/17)
- Page 3 (2) M8-1.25 x 16 button head cap screws and (2) M8-1.25 flange nuts, as shown in Figure Side Assembly B Figure 10. Linkage bar attached to pedal assembly. Side Assembly A Figure 8. Side assembly B attached. T1238 Tool Table (Mfd. Since 10/17)
- Page 4 18. Ensure all fasteners are firmly tightened and wheel mechanism operates smoothly. Side Panel Figure 12. Top of side panel and handle attached. 15. Repeat Step 13 to attach second side panel to opposite side of table assembly (see Figure 11). T1238 Tool Table (Mfd. Since 10/17)
- Page 5 Mounting Machines to Table Moving Tool Table The Model T1238 Mobile Tool Table is designed Depress the lifting pedal to raise the table onto to have machines mounted to it. Mount the the wheels. Carefully steer the table to the desired...
- Page 6 Please Note: We do our best to stock replacement parts whenever possible, but we cannot guarantee that all parts shown here are available for purchase. Call (800) 523-4777 or visit our online parts store at www.grizzly.com to check for availability.
- Page 7 Safety labels help reduce the risk of serious injury caused by machine hazards. If any label comes off or becomes unreadable, the owner of this machine MUST replace it in the original location before resuming operations. For replacements, contact (800) 523-4777 or www.grizzly.com. T1238 Tool Table (Mfd. Since 10/17)
- Page 8 T1238 Tool Table (Mfd. Since 10/17)
