Grizzly T1251 Instructions Manual

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
This cabinetmaker's workbench is rock-solid and
built to last a lifetime! The Model T1251 features a
1 ⁄ " solid beechwood workbench top with 36 pre-
3
4
drilled ⁄ " dog holes, all-steel frame construction,
5
8
and re-inforced corners. Four 3
wood aprons border the workbench top, providing
a clamping surface for two included 15" vises.
Also included are 8 hex-head bench dogs and 8
steel bars for shelving and stock storage.

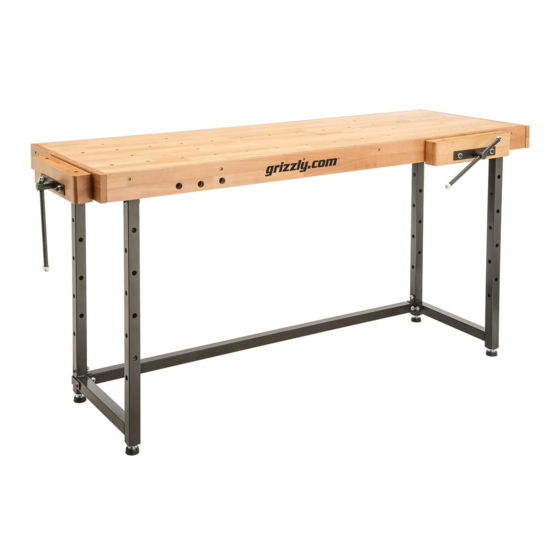

Figure 1. Model T1251 25" x 72" Beech
Cabinetmaker's Workbench.

Specifications

• Workbench Top (Width x Length) ...25" x 72"
• Footprint (Width x Length) ..............20" x 64"
• Height ...................................................... 37"
• Workbench Vises ....................................... 2
• Vise Mounting Locations ............................ 4
• Dog Holes in Workbench Top .................. 36
• Dog Holes in Vise ........................ 2 Per Side
• Dog Hole Diameter ...................................
• Maximum Weight Capacity ......... 2500+ lbs.
• Approximate Assembly Time ............. 1 Hour
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
⁄ " solid beech-
1
2
COPYRIGHT © NOVEMBER, 2017 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 11/17) #ES19302 PRINTED IN TAIWAN
25" X 72" BEECH
CABINETMAKER'S WORKBENCH
Needed for Assembly
• Additional Person ....................................... 1
• Drill ............................................................. 1
• Drill Bit #2 (or Smaller) ............................... 1
• Phillips Screwdriver #2 ............................... 1
• Adjustable Wrench ..................................... 1
• Pencil .......................................................... 1
• Level or Straightedge 3' ............................. 1
Inventory
Description
A. Vise Heads ................................................. 2
B. Vise Plates.................................................. 2
C. Vise Handles w/Acorn Nuts
D. Vise Screw Rods w/Ends. .......................... 2
E. Vise Bars w/Hex Nuts
F.
Threaded Sleeves w/Hex Nuts
G. Sleeves w/Hex Nuts
H. Hex-Head Bench Dogs. .............................. 8
I.
Steel Bars
A
D
F
H
⁄ "
5
8
Figure 2. Inventory : vises and accessories.
MODEL T1251
INSTRUCTIONS
⁄ "-12 ...................... 4
1
2
⁄ "-16. ........................ 4
7
8
⁄ " x 11 ⁄ " ................................. 8
5 3
8 4
B
E
G
I
Qty
⁄ "-12 ............. 2
1
2
⁄ "-16 ......... 2
7
8
C
V1.12.17
