Grizzly T33276 Instructions Manual

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The Model T33276 15-Drawer Tool Chest requires
some assembly. Follow the instructions below for
assembly, operation, and maintenance.

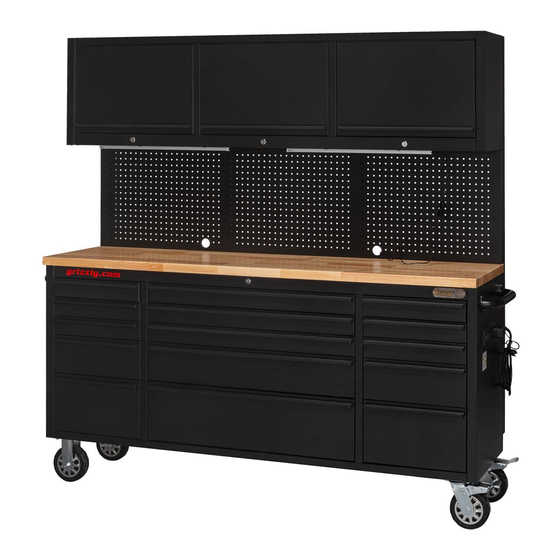

Figure 1. Model T33276.
• To reduce risk of crushing injuries from
tool chest tipping over on you:
- Do not stand on tool chest or in drawers.
- Keep wheels locked and turned facing
front of tool chest.
- Push tool chest only. Do not pull it.
- Only open one drawer at a time.
- Only move or transport tool chest with
all drawers closed and locked.
• Do not exceed weight capacities:
- Max individual drawer weight limit
is 100 lbs.
- Max tool chest weight limit (including
contents) is 1850 lbs.
• To prevent accidental rolling, always lock
brakes after moving tool chest.
• Do not allow children to have unsupervised
access to tool chest.
