Grizzly T34089 Instructions Manual

Grizzly T34089 Instructions Manual

84" 4-drawer butcher block workbench

Advertisement

Quick Links

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The T34089 4-Drawer Butcher Block Workbench
measures 84" wide, 26" deep, 35" tall and is made
of solid hevea wood. This model includes four
large felt-lined drawers with ball bearing slides,
a 1
" thick benchtop supported by 1
1
8
wooden legs, and a built-in storage shelf.

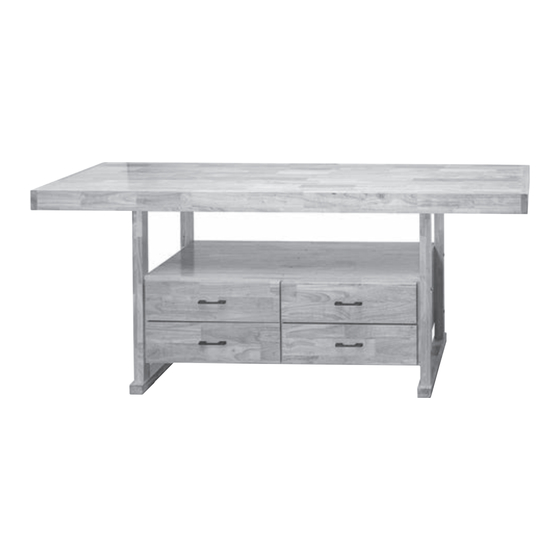

Figure 1. Model T34089 4-Drawer Butcher Block
Workbench.
Specifications
Dimensions .................84" W x 26" D x 35" H
Workbench Top ........................84" W x 26" D
Benchtop Thickness ................................ 1
Drawers ...................20
Legs ....................................... 1
Weight ..............................................220 lbs.
Weight Capacity .............................. 1100 lbs.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
" x 2
3
4
" W x 14
" D x 5"H
1
3
8
8
" W x 2
3
4
COPYRIGHT © FEBRUARY, 2024 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 11/23) #JA23062 PRINTED IN CHINA
***Keep for Future Reference***
MODEL T34089 84"
4-DRAWER BUTCHER
BLOCK WORKBENCH
"
1
4
• Do not exceed weight capacity of work-
bench.
• Do not stand or climb on workbench.
• Do not use workbench outdoors or in wet
or damp locations.
• Do not overload vise or use cheater pipe
on vise handles to increase leverage.
• Do not weld on workbench.
"
1
• Do not allow children to have unsupervised
8
access to workbench.
" D
1
4
INSTRUCTIONS
Wear safety glasses during
the entire setup process!
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting workbench or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this workbench.
V1.02.24
