Grizzly T34091 Instructions Manual

For questions or help with this product contact Tech Support at (570) 546-9663 or techsupport@grizzly.com
Introduction
The T34091 9-Drawer Euro-Style Butcher Block
Workbench measures 80" wide, 30" deep, 34
tall and is made of solid hevea wood. This model
includes nine felt-lined drawers with ball bearing
slides, and a 1 ⁄ " thick benchtop. The workbench
1
8
also includes a recessed tool well, a side vise
with 12" clamping capacity, a front vise with 4
clamping capacity, and a built-in storage shelf.

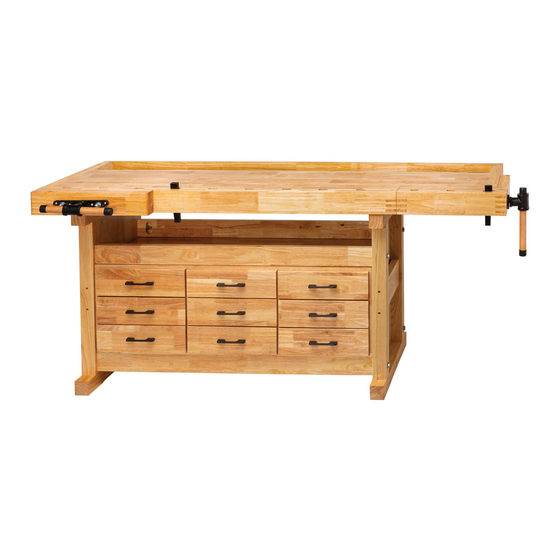

Figure 1. T34091 9-Drawer Euro-Style Butcher
Block Workbench.
Specifications
• Dimensions ..............80" W x 30" D x 34
• Workbench Top ....... 75" W x 24
• Tool Well ...................66" W x 7
• Drawers .....................12" W x 14
• Side Vise Dimensions ...........9
• Side Vise Capacity ................................... 12"
• Front Vise Dimensions ........19
• Front Vise Capacity ................................. 4
• Legs .......................................2
• Weight ..............................................220 lbs.
• Weight Capacity .............................. 1100 lbs.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
⁄ " D x 1
1
4
⁄ " D x 2
3
4
⁄ " D x 3" H
1
4
⁄ " W x 3
1
2
⁄ " W x 3
1
4
⁄ " W x 2
1
4
COPYRIGHT © MARCH, 2024 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
(FOR MODELS MFD. SINCE 11/23) #JA23082 PRINTED IN CHINA
***Keep for Future Reference***
MODEL T34091 80"
9-DRAWER EURO-STYLE
⁄ "
1
4
⁄ "
5
8
• Do not exceed weight capacity of work-
bench.
• Do not stand or climb on workbench.
• Do not use workbench outdoors or in wet
or damp locations.
• Do not overload vise or use cheater pipe
on vise handles to increase leverage.
⁄ " H
1
4
• Do not weld on workbench.
⁄ " H
1
8
• Do not allow children to have unsupervised
⁄ " H
5
8
access to workbench.
⁄ " H
3
4
⁄ " H
3
4
⁄ "
5
8
⁄ " D
1
4
WORKBENCH
INSTRUCTIONS
Wear safety glasses during
the entire setup process!
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting workbench or some of
its parts. To reduce this risk,
get help from other people
and use a forklift (or other
lifting equipment) rated for
weight of this workbench.
V1.03.24
