Grizzly Oak Workbench T10157 Instructions

Grizzly Oak Workbench T10157 Instructions

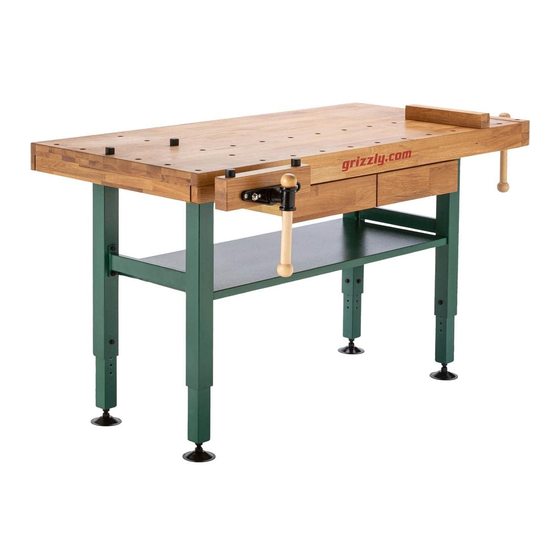

Oak workbench

Advertisement

Quick Links

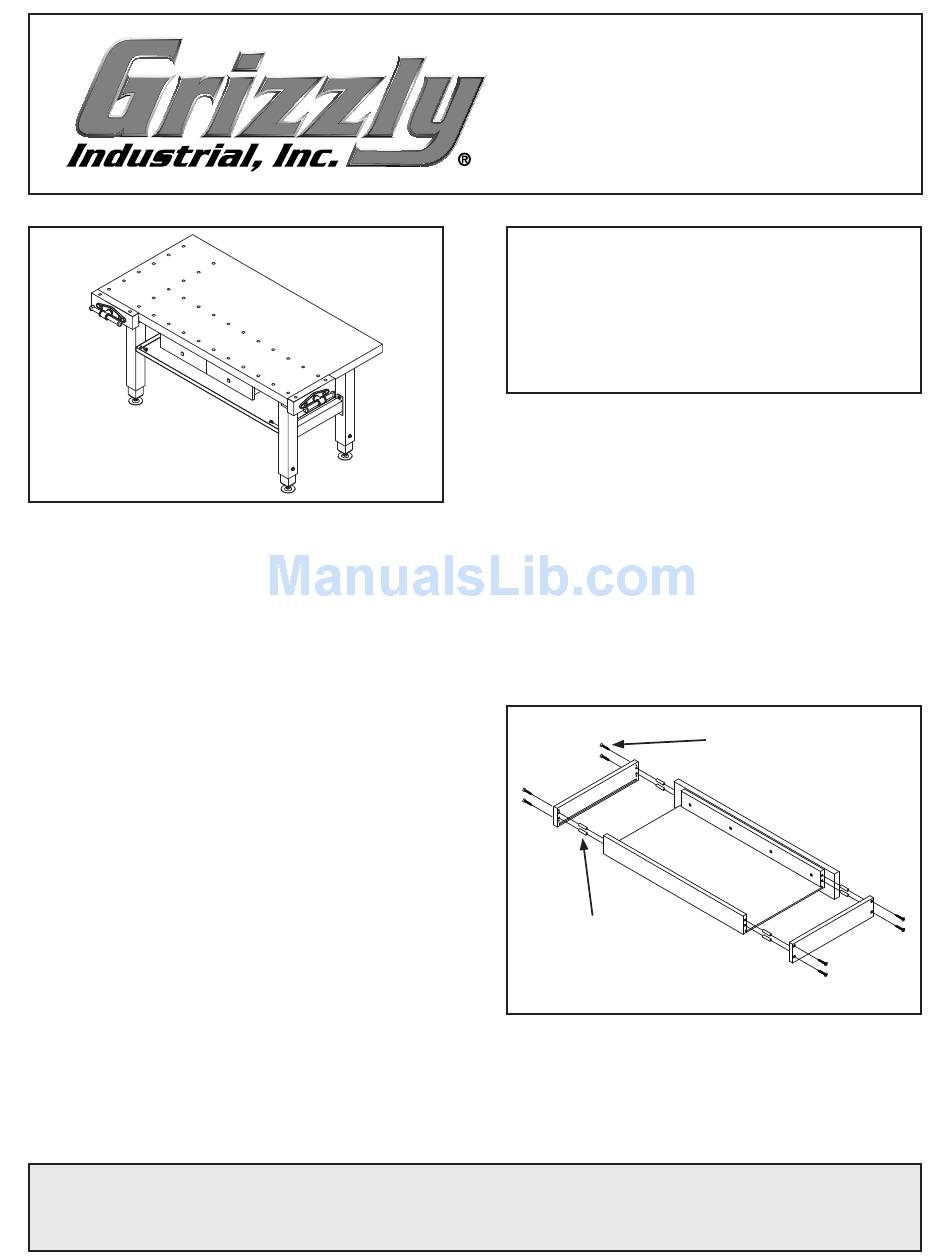

figure 1. Model t10157 oak Workbench.

features

solid oak top (1
1
bench dog holes for each vise.
two storage drawers (with ball bearing slides)
that are 14" wide x 13
sturdy adjustable steel legs with leveling foot
pads.
two oak-faced vises with removable top plate
and 4" leadscrew travel, 13" wide x 2" thick.
Four bench dogs.
all wood surfaces finished with durable lac-
quer.
overall dimensions: 62" wide x 30" in depth x
32"–39" tall.
Weight: 155 lbs.

Inventory

use the parts breakdown and listing on page 4 to
perform an inventory of the shipment.
if any nonproprietary parts are missing (e.g. a
bolt or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
WARNINg: NO pORTION Of THIS MANUAL MAy BE REpRODUCED IN ANy SHApE
OR fORM WITHOUT THE WRITTEN AppROvAL Of gRIzzLy INDUSTRIAL, INC.
" thick) with double rows of
2
" long x 2
" deep.
3
1
4
4
Copyright © oCtoBEr, 2008 By grizzly industrial, inC.
#ts11313 printEd in China
MODEL T10157
OAK WORKBENCH
INSTRUCTIONS
NOTICE
If you cannot find an item on the inventory
parts list, check the mounting location on
the workbench or examine the packaging
materials carefully. Some items are pre-
installed for shipping purposes.

Assembly

Tools Needed
phillips screwdriver #2 ...................................... 1
Wrench or socket
" ........................................ 1
1
2
To assemble your workbench:
1.
insert the four M8 x 30 screw anchors into
the holes at the ends of the front and back
drawer panels for both drawers, as shown in
figure 2.
M8 x 30
screw anchors
figure 2. attaching drawer side panels.
Qty
M4 x 30
Wood screws

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oak Workbench T10157 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grizzly Oak Workbench T10157

  • Page 1 Copyright © oCtoBEr, 2008 By grizzly industrial, inC. WARNINg: NO pORTION Of THIS MANUAL MAy BE REpRODUCED IN ANy SHApE OR fORM WITHOUT THE WRITTEN AppROvAL Of gRIzzLy INDUSTRIAL, INC. MODEL T10157 OAK WORKBENCH...
  • Page 2 align the drawer side panels with the drawer sub-assembly, as shown in figure 2, then secure them with the M4 x 30 wood screws. attach the ball bearing drawer slides to tops of the drawer side panels, as shown in figure 3, with the M4 x 13 wood screws.
  • Page 3 insert the vise assemblies through the holes in the table edge and thread the leadscrew into the leadscrew plate. With assistance, turn the workbench top upside down on a flat, protected surface. 10. slide the lower legs into the upper legs, then secure them together with the ⁄...
  • Page 4 parts parts Breakdown and List REF PART # DESCRIPTION PT10157001 VISE LEADSCREW ASSEMBLY PT10157002 TUBE PT10157004 SCREW ANCHOR M8 X 30 PT10157005 WOOD SCREW M4 X 30 PT10157006 GLUE TUBE PT10157007 BALL BEARING DRAWER SLIDE PT10157008 WOOD SCREW M4 X 13 PT10157009 WORKBENCH TOP PT10157010...
