High Speed Dome Camera
Motion detection supports full area detection and max 4 user-defined areas. The default is full area
detection.
Go to Settings > Event > Intelligent Function > Motion Detection, and check "Enable".
1)
Click "Clear All" and then "Edit" and the image will be divided into 16 columns and 12 lines of small
2)
squares. Click a square, drag toward lower right and click "Stop". Then the area is the detected area and it
turns purple red. A camera can support max 4 motion detection areas at the same time. Draw an area
toward upper left that contains the defined area, or click the defined squares one by one to clear setting,
or click "Clear All" to clear setting.

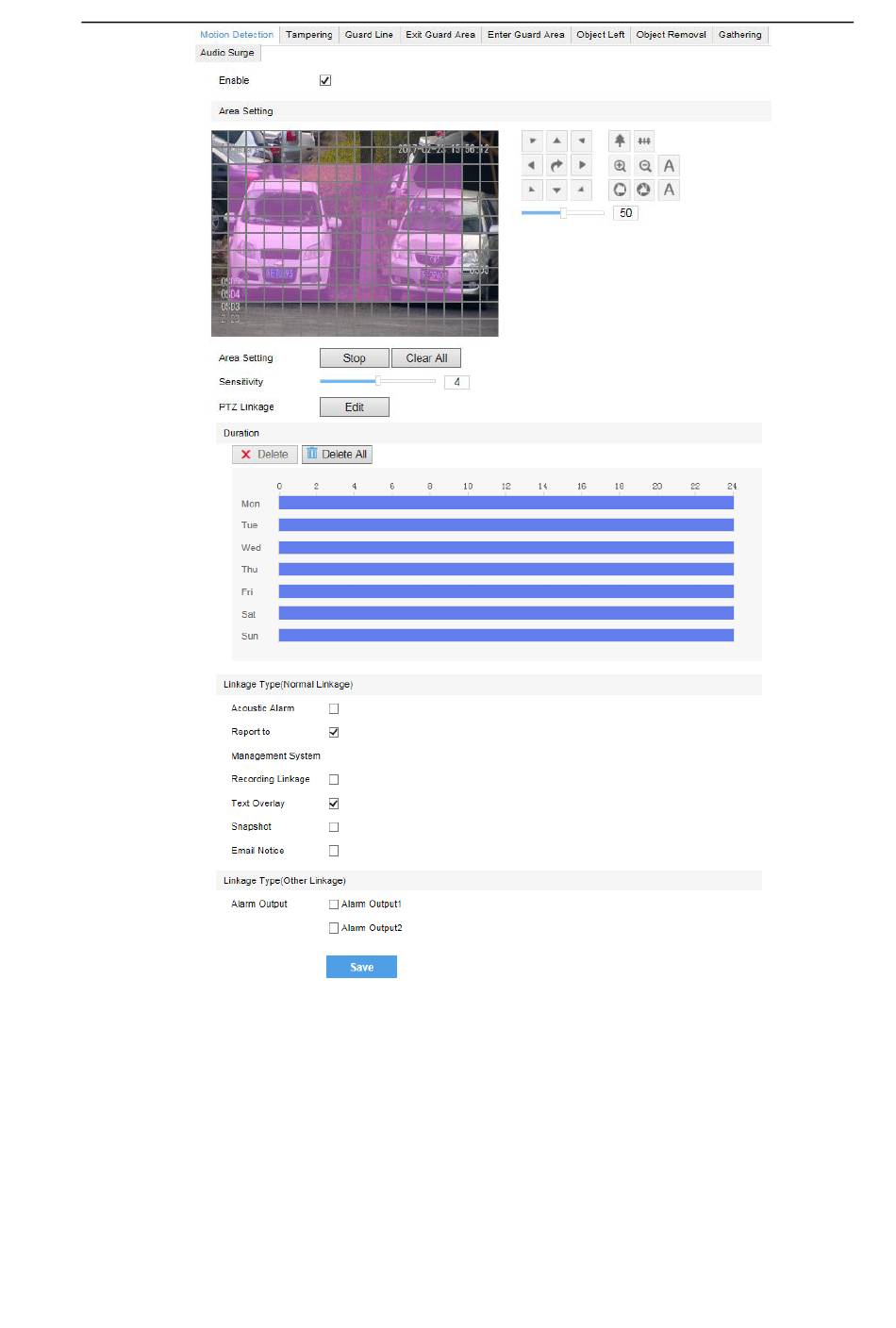

Picture 4-13 Motion Detection
