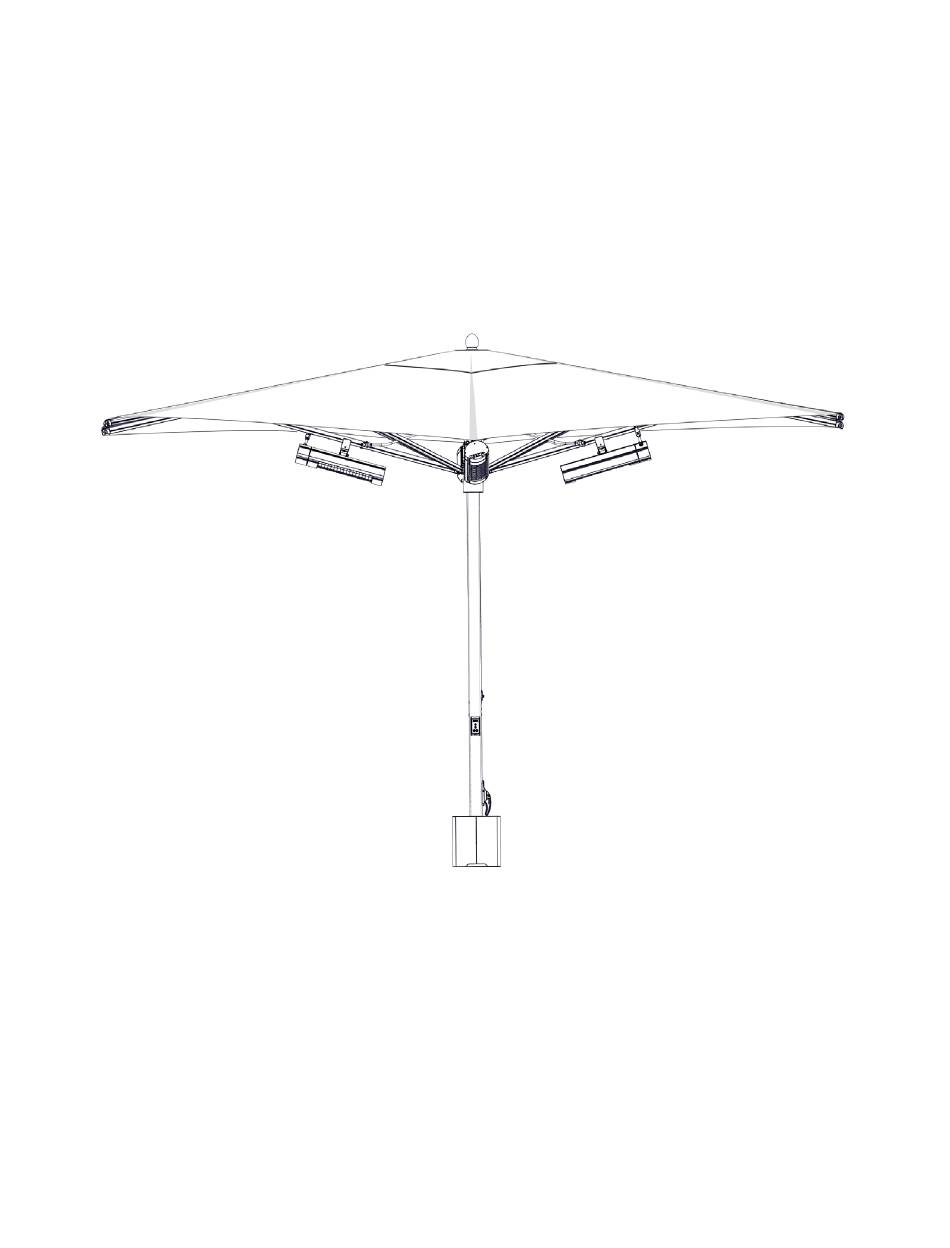

- Page 1 TUUCI MAX CENTER POST LIGHT AND HEATERS ASSEMBLY & OPERATING INSTRUCTIONS TO PROTECT YOUR PRODUCT, PLEASE READ THE OPERATING INSTRUCTIONS BEFORE OPENING THE PARASOL 1005157 1 | tuuci...
- Page 2 AMBIA LIGHT & HEATERS MAX CENTER POST STEP 1 STEP 3 Remove all packaging from umbrella. Once you have leveled the security stem using the base installation instructions, slide the post beauty cover and umbrella over the security stem (security stem is included with STEP 2 umbrella).
- Page 3 Press the Power button to turn on the umbrella. The When the umbrella is properly plugged into the button will be back-lit in red when the power is ON. power source the TUUCI logo on the user control panel will be back-lit in white. crank-lock button...
- Page 4 AMBIA LIGHT & HEATERS MAX CENTER POST STEP 11 To install ambia light release tension from the steel wires by slightly cranking umbrella counter-clockwise. Slightly raise lower hub If more slack is needed when mounting ambia light. The ambia light kit is safely stored in a separate packaging box.
- Page 5 AMBIA LIGHT & HEATERS MAX CENTER POST STEP 13 Insert screws on both sides, do not tighten screws until both screws are in place. Once both screws are placed tighten with provided allen key. screws STEP 14 Connect light cables...
- Page 6 AMBIA LIGHT & HEATERS MAX CENTER POST TURN ON LIGHT AND HEATERS TURNING THE AMBIA LED LIGHT ON Press the light bulb icon button to turn-on the Ambia LED light. The color will change from white to blue after pressing the button, signaling that the light is ON.
- Page 7 The Power button will be fl ashing in yellow when the umbrella is not level. All functions (Ambia LED light and heaters) are inactive. The TUUCI logo is not back-lit. When the umbrella is level and no longer tipped or tilted, it will return to a powered down state with the TUUCI logo back-lit in white and all other functions OFF.
