Hardware layout and configuration
Table 5. Debug connector CN4 (SWD)
Pin
CN4
Designation
1
VDD_TARGET
VDD from application
2
SWCLK
SWD clock
3
GND
ground
4
SWDIO
SWD data input/output
5
NRST
RESET of target STM32
6
SWO
Reserved

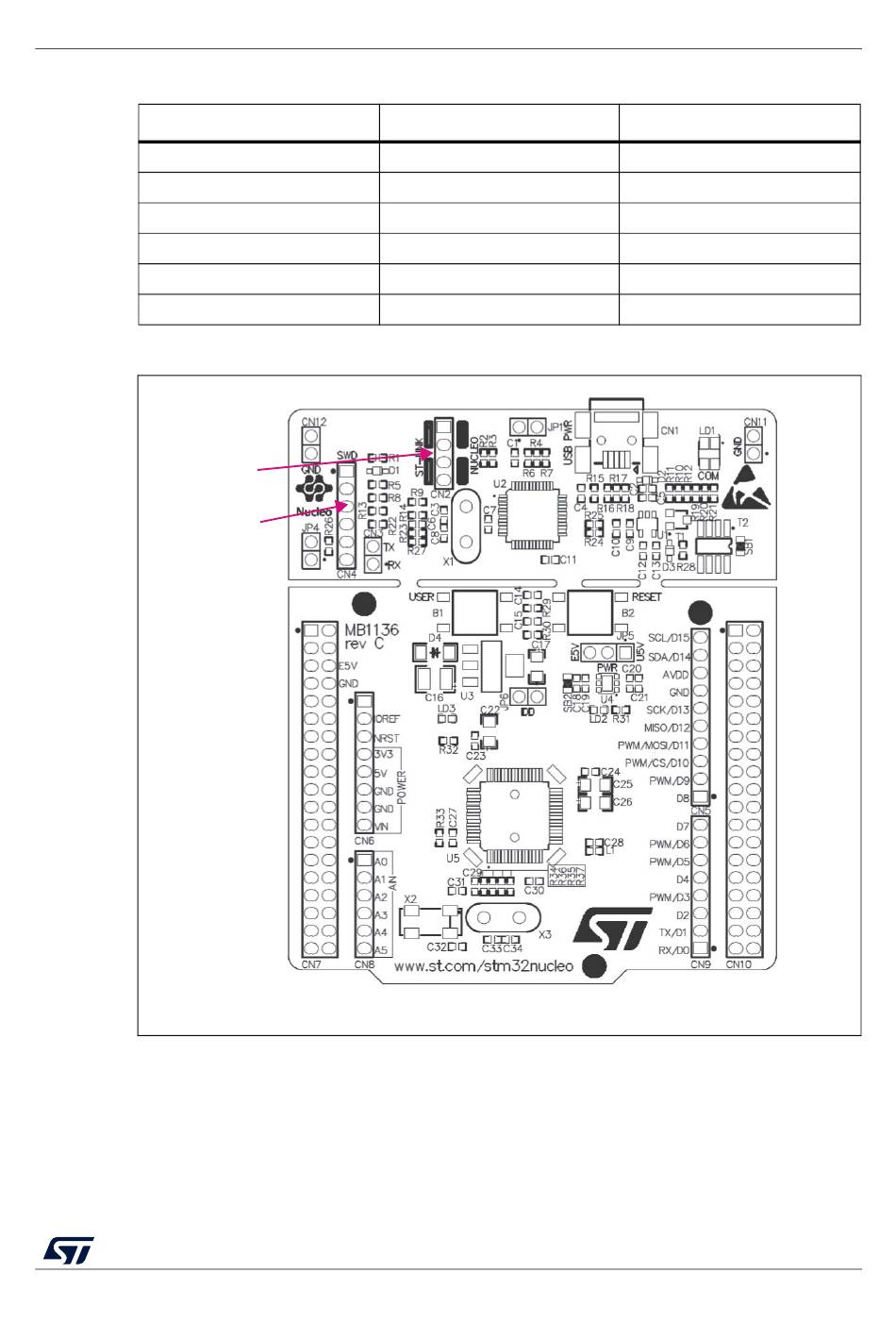

Figure 9. Using ST-LINK/V2-1 to program the STM32 on an external application
CN2 jumpers OFF
CN4
SWD connector
MS34379V2
